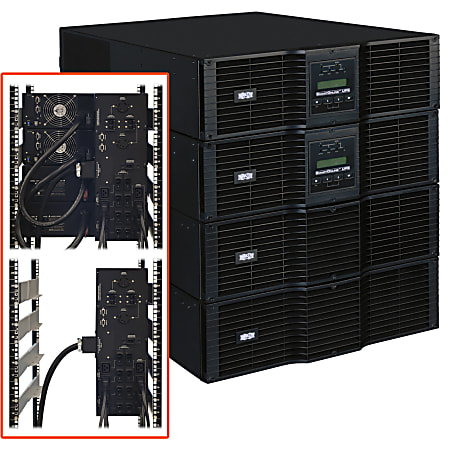

Tripp Lite UPS Smart Online 16000VA 14400W Rackmount 16kVA 208/240V Manual Bypass Hot Swap USB DB9 12URM Item # 831385
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite SU16KRT8 16,000 VA/16 kVA/14,400 W online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 12 U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 8 kVA, and non-redundant operation at loads between 8 and 16 kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.
|Backup/Run Time (Full Load)||5.50 Minute|
|Backup/Run Time (Half Load)||13.50 Minute|
|brand name||Tripp Lite|
|Bypass Switch||Automatic; Manual|
|Emergency Power OFF||Yes|
|form factor||Tower/Rack Mountable|
|Frequency Provided||50/60 Hz|
|Input Connectors||Hardwire 3-wire|
|Input Voltage||220 V AC|
|Load Capacity (VA)||16 kVA|
|Load Capacity (Watt)||14.40 kW|
|Maximum Battery Recharge Time||8 Hour|
|Modular Slots||Communications Slot|
|Network Management||SNMP Manageable|
|Output Voltage||200 V AC; 208 V AC; 220 V AC; 230 V AC; 240 V AC|
|package contents||SmartOnline 16kVA On-Line Double-Conversion UPS; 2 x SU8000RT3UPM UPS Power Modules; 2 x BP240V10RT3U Battery Packs; Parallel PDU with Bypass Switch; 4-post Rackmount Installation Rails; PowerAlert Software CD; USB Cable; Serial Cable; EPO Cable|
|Plug/Connector Type||Hard Wire 3-wire|
|ports||1 serial; 1 USB|
|Receptacles||8 x NEMA L6-20R|
|warranty length||2-year limited|
|Show More ▾|
SmartOnline 16kVA UPS with Expandable Battery Backup and N+1 Redundancy for Mission-Critical Equipment
Tripp Lite's SU16KRT8
SmartOnline® Double-Conversion UPS System protects connected equipment against
data loss, downtime and equipment damage due to power outages, voltage fluctuations
and transient surges. Its 12U form factor includes two 3U UPS power modules,
two 3U external battery packs and a parallel PDU with bypass switch. It has a hardwire input (3-wire, single phase)
and 10 total outlets (8 x L6-20R, 2 x L6-30R). The SU16KRT8 has a 16,000VA/14,400W
output capacity and N+1 redundancy at loads up to 8000VA. It provides
pure sine wave at all times, even when operating from battery.
The SU16KRT8 actively converts raw incoming AC power to DC and then re-converts it back to regulated, filtered AC output with a pure sine wave, completely isolating connected components from all power problems. Pure sine wave power is required for devices with active PFC power supplies and can prevent poor performance of other types of sensitive equipment. The SU16KRT8’s selectable output voltage provides regulated nominal 208/240V AC output to connected components and is compatible with both 50 Hz and 60 Hz frequencies. It corrects undervoltages as low as 100V and overvoltages as high as 300V.
UPS battery backup keeps connected equipment operational through short power failures, and it provides sufficient time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU16KRT8's battery set provides 13.5 minutes of battery support for a half load (7200 watts) and 5.5 minutes of support for a full load (14,400 watts). Runtime is expandable with optional external battery packs (Tripp Lite model BP240V10RT3U, BP240V557C-1PH, BP240V787C-1PH, BP240V1037C-1PH or BP240V1407C-1PH), sold separately. The external battery packs are hot-swappable and can be replaced without disruption to connected equipment.
The SU16KRT8 has a bypass switch, a modular design and automatic N+1 redundancy at loads up to 8000VA to provide continuous availability. When the bypass switch is activated, a power module can be removed for maintenance, repair or replacement while the PDU remains connected to the AC power source and your equipment, providing power as long as utility power is present. At loads up to 8000VA, a power module can be hot-swapped (with the load powered) if maintenance is required.
Highly Efficient Operation Reduces BTU Output and Energy Costs
The SU16KRT8 features an optional, highly efficient economy mode setting that can significantly reduce a facility's energy costs. In economy mode, the UPS operates with up to 96% efficiency, minimizing heat output, reducing cooling requirements and consuming less electricity.
Each power module has a front-panel LCD screen with LED indicators to allow IT personnel to monitor the unit’s operating mode and pertinent data such as load percentages, power factor, input and output volts and battery charge. The display rotates for viewing in rack and tower configurations. An audible alarm signals power failure, low battery, overload and fault conditions.
Communication Ports, Included PowerAlert® Software and SNMP Capability
The SU16KRT8 has two USB ports and two RS-232 (DB9 serial) ports (cables included) to provide comprehensive network power monitoring and control when used with Tripp Lite's included PowerAlert software. Capabilities include UPS and line power status messaging (on-battery, low battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity), timed inverter shutoff after unattended shutdown, and UPS output power control for reboot of connected devices. Each power module accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network. They also accept a RELAYIOCARD or RELAYIOMINI interface module for hard contact closure outputs for custom event notification.
An Emergency Power-Off (EPO) interface port supports emergency shutoff in large facilities.
Surge Protection and EMI/RFI Line Noise Filtering
The SU16KRT8’s network-grade surge protection instantaneously safeguards connected components and data from the harmful effects of power surges. Various electrical and radio sources can cause disruptive interference on the AC line, which commonly results in incremental hardware damage, data corruption and performance problems. By providing regulated, filtered, pure sine wave AC output, the SU16KRT8 completely isolates connected equipment from line noise.
The SU16KRT8 requires 12U of rack space in a standard 4-post rack enclosure (mounting accessories included). It can also be installed in a 2-post rack using four optional 2POSTRMKITHD accessories, or in an upright tower configuration using two optional 2-9USTAND accessories.
2-Year Warranty, $250k Ultimate Lifetime Insurance and Environmentally Responsible Design
The SU16KRT8 comes with a 2-year warranty and $250,000 of Ultimate Lifetime Insurance for any connected components damaged by a power surge (U.S., Canada and Puerto Rico only). As part of Tripp Lite’s commitment to environmental responsibility, this UPS is manufactured in compliance with strict RoHS specifications.
- Offers the highest level of protection for advanced networking applications in data centers, computer rooms, network closets and other areas with mission-critical equipment
- True on-line operation with pure sine wave output and zero transfer time to battery
- 16,000VA/14,400W output capacity
- Automatic N+1 redundancy at loads up to 8000VA
- Selectable 208/240V AC output; 50/60 Hz frequency compatibility
- Expandable battery backup
- Hot-swappable power module
- Intuitive LCD interface reports operating mode and conditions
- Communication ports and included PowerAlert software for complete network management
- 2-year warranty and $250,000 Ultimate Lifetime Insurance
