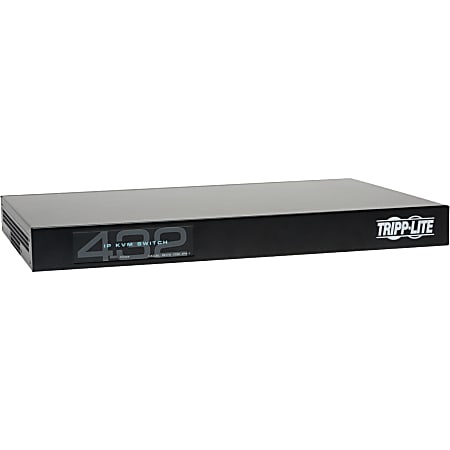

Tripp Lite 32-Port Cat5 IP KVM Switch 1 Local 4 Remote User 1URM Rackmount Item # 865171
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's B072-032-IP4 KVM Switch is the optimal solution for controlling up to 32 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.The B072-032-IP4 uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 32 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and up to four remote users can each log on and access different ports simultaneously.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media supported when using a B078-101-USB-1 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-032-IP4.
|brand name||Tripp Lite|
|Certifications & Standards||UL 60950-1 (USA); CSA (Canada); FCC Part 15 Class A; CE IEC 60950-1|
|Graphic Mode||Full HD|
|KVM IP Users Qty||4 IP users|
|Maximum Operating Distance||100 ft|
|Maximum Video Resolution||1920 x 1080|
|Number of Computers Supported||32|
|Number of Local Users Supported||1|
|Number of Remote Users Supported||4|
|package contents||32-Port, 4+1 User NetCommander Cat5 IP KVM Switch; Rackmount Hardware; 2 x Power Cords|
|Platform Supported||Linux; PC|
|ports||36 Ethernet (RJ-45); 2 USB; 1 VGA|
|Server Connection Via Twisted Pair||CAT5|
|warranty length||2-year limited|
|Weight (Approximate)||7.75 lb|
|Show More ▾|
The Smart Solution for Four Simultanous Users Managing Up to 32 Computers/Servers Remotely
|Tripp Lite’s B072-032-IP4 NetCommander Multi-User IP KVM Switch is the smart solution for controlling multiple servers and serial devices from one monitor, keyboard and mouse. Designed using the most advanced technology available, this 1U switch features rugged construction, premium connectors and superior functionality at a price that won’t break the bank. Intuitive Web Configuration Interface with multi-level authentication allows you to quickly and efficiently manage your installation, while dual LAN and power ports protect you from potentially crippling downtime. With 32 ports and support for up to 4 simultaneous remote sessions, this high-performance KVM switch provides you with the flexibility you need to manage your system. For peace of mind, it comes backed by a 2-year warranty and green, RoHS-compliant design.|
All-in-One System Control at Your Fingertips
B072-032-IP4 Main Features
Simple, Flexible System Control
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect and protect your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
