Belkin Cat. 6 UTP Bulk Cable Item # 870786
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability

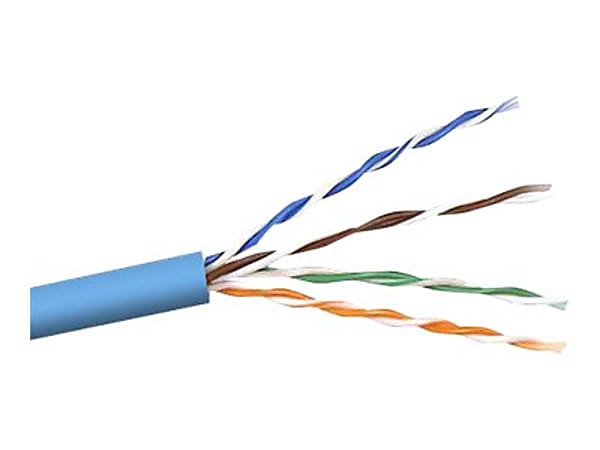

Belkin's CAT 6 PVC Stranded UTP Bulk Cable is used to connect a network outlet with a patch panel, or to terminate your own patch cords. This cable consists of 8 stranded 24 AWG wires, and is suitable for 10/100/1000BASE-T networks, and 10GBASE-T networks (up to 50 meters).
|cable type||Category 6|
|manufacturer||Belkin International, Inc|
|warranty length||limited lifetime|
Product Q & A
From the Manufacturer|
Belkin CAT6 exceeds requirements of TIA/EIA-568-B.2-1 and ISO/IEC 11801. It is ideal for high-end solutions such as Gigabit Ethernet, 1.2Gbps ATM, and broadband video. This Cable consists of eight stranded 24AWG wires.
- White conductor has color band for easy pair identification
- Integrated pull string eases jacket stripping
- One of the Highest performing copper cables available
|Cable Characteristic||Unshielded twisted pair (UTP)|
|Cable Type||Bulk cable - CAT 6|
|Characteristic Impedence||100±15Ω @ 1 ~ 550MHz|
|Conductor Construction||Bare Stranded Copper|
|Conductor Resistance||93.8Ω/km/20°C max|
|Conductor Size||24AWG x 4pairs|
|Dielectric Strength||AC 1.5kV/min|
|Flame Retardant Test||CM|
|Mutual Capacitance||56pF/m max|
|Propagation Delay||536nS/100m max @ 550MHz|
|Standards Compliance||ISO/IEC 11801; TIA/EIA-568-B.2-1|
|Structural Return Loss||8.6dB min at 550MHz|
