Tremendous internal storage capacity and more I/O connectivity than ever before is the result of an innovative design on the new ThinkServer RD650. With up to 26 drive bays and vast internal storage capacity, the RD650 is great for storage-hungry applications such as databases, data analytics clusters, and video streaming. PCIe slots give you plenty of bandwidth to scale your I/O. Plus, for ultimate performance, the industry-unique Lenovo AnyBay design allows multiple storage types in the same drive bay, including front-accessible PCIe SSD.
|80 PLUS Certification||80 PLUS Platinum|
|Compatibility||Microsoft Windows Server 2012 R2; Microsoft Windows Server 2012; Microsoft Windows Server 2008 R2; Windows Small Business Server 2011; Red Hat Enterprise Linux 6.5; SUSE Linux Enterprise Server 11; VMware vSphere (ESXi) 5.5 U2|
|controller type||12Gb/s SAS|
|Effective Memory Speed||1866 MHz|
|Graphics Controller Manufacturer||ASPEED|
|Graphics Controller Model||AST2400|
|Graphics Memory Capacity||Up to 16 MB|
|Input Voltage||120 V AC; 230 V AC|
|manufacturer||Lenovo Group Limited|
|Maximum Power Supply Wattage||1100 W|
|Maximum Turbo Speed||3.20 GHz|
|Memory Technology||DDR4 SDRAM|
|Number of 3.5" Bays||12|
|Number of Power Supplies Installed||1|
|Number of Processors Installed||1|
|Number of Processors Supported||2|
|Number of Total Expansion Bays||12|
|Number of Total Expansion Slots||8|
|Number of Total Memory Slots||24|
|operating system details||none|
|Optical Drive Type||No|
|ports||1 DisplayPort; 1 Ethernet (RJ-45); 2 USB 3.0|
|Processor Core||Octa-core (8 Core)|
|processor model||E5-2630 v3|
|processor speed||2.40 GHz|
|processor type||Intel Xeon|
|QuickPath Interconnect||8 GT/s|
|RAID Levels||0, 1, 5, 6, 10, 50, 60|
|RAM Supported||384 GB registered - ECC ¦ 768 GB Load-Reduced - ECC|
|Rated Memory Speed||2133 MHz|
|Remote Management Controller||ThinkServer System Manager Premium (TSM)|
|Standard Memory||8 GB|
|Storage Controller Name||ThinkServer RAID 720ix AnyRAID|
|Total Number of USB Ports||2|
|warranty length||3-year limited|
|Weight (Approximate)||70.40 lb|
|wired connectivity||10/100/1000 Ethernet|

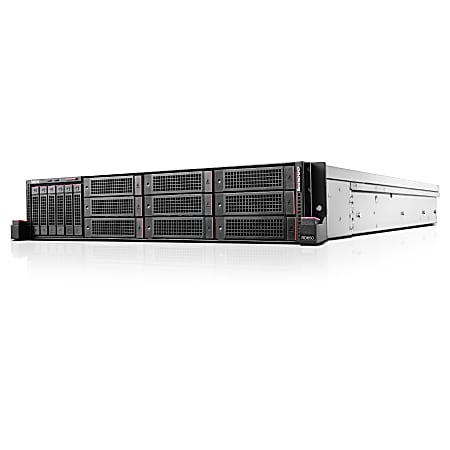

Lenovo ThinkServer RD650 Rack Server: Storage-dense, flexible design
The ThinkServer RD650 features incredible storage density and a highly flexible design - perfect for your business-critical applications.
Outstanding storage densityTremendous internal storage capacity and more I/O connectivity is the result of an innovative design on the ThinkServer RD650. The RD650 is great for storage-hungry applications such as databases, data analytics clusters, and video streaming.
Highly flexible designPowerful processors, large memory capacity, and loads of storage, combined with multiple chassis types, RAID choices, and I/O options, make it easy to create the perfect RD650 configuration to run your business-critical applications.
Extra-reliable performanceData center cooling costs can be greater than the cost of powering the IT equipment itself. One way to reduce these cooling costs is by operating the data center at a higher temperature. With a dynamic environmental design, the RD650 can run continuously at 45°C - with no impact on reliability. In fact, the system has been carefully architected and tested to support long-term reliability. The RD650 is also perfect for organizations that install servers in less strictly controlled environments.
