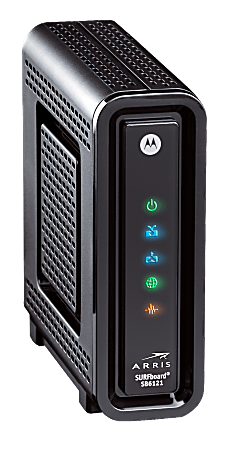

Motorola® SURFboard® SB6121 DOCSIS 3.0 Cable Modem
This item is in your cart

Motorola® SURFboard® SB6121 DOCSIS 3.0 Cable Modem

Item # 902317 OfficeMax # 23354157
High-speed connection to the Internet
  • Equipped with Ethernet connectivity.
  • Provides a maximum download speed of 171.537 Mbps and upload speed of 131.072 Mbps.
Your Price
$69.99 $69.99
/ each
  • Quantity

In Stock

  • Free delivery : Estimated delivery 3-5 business days

Free in store pickup

Sold in stores Check your store availablity
Pricing, Assortment and Availability

High-speed connection to the Internet
  • Equipped with Ethernet connectivity.
  • Provides a maximum download speed of 171.537 Mbps and upload speed of 131.072 Mbps.
  • Front panel status lights.  Let you quickly see modem status for power, communications and errors.
  • DOCSIS 3.0 technology.  Permits the addition of high-speed data transfer to an existing cable TV system.
  • Power supply and Ethernet cable are included.
  • ENERGY STAR— For products that meet federal guidelines for energy efficiency.

Back to Menu

Item # 902317
Manufacturer # 575319-019-00
Network / Transport Protocol TCP/IP
Bus Gigabit Ethernet
Included Accessories Power adapter
Type Network adapter
Multiplexed Channels Qty 4
Max Operating Temperature 104 °F
height 5.2 in
Data Link Protocol
ENERGY STAR Qualified Yes
Features Auto-negotiation, auto-uplink (auto MDI/MDI-X), IPv6 support, IPv4 support
Interfaces 1 x Cable - F connector ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
Connectivity Technology Wired
modem standard DOCSIS 3.0
width 1.7 in
depth 5.2 in
maximum download speed 171.537 Mbps
010--OD-SKU-Number 902317
Compliant Standards Plug and Play, RoHS, MEPS
manufacturer Motorola
Max Transfer Rate 195 Mbps
postconsumer recycled content 0%
Remote Management Protocol SNMP, HTTP
Line Coding Format 8 QAM, 32 QAM, 128 QAM, 64 QAM, 256 QAM, QPSK, 16 QAM
brand name Motorola
Humidity Range Operating 5 - 95% (non-condensing)
Min Operating Temperature 32 °F
maximum upload speed 131.072 Mbps
System Requirements Details Pentium ¦ PowerPC
telephone cord included no
total recycled content 0%
operating system compatibility Windows XP Service Pack 2; Windows Vista Service Pack 1; Windows 7; Mac 10.4+ (Ethernet connection only); Linux (Ethernet connection only); UNIX (Ethernet connection only)
Data Transfer Rate 1 Gbps
Protocols & Specifications DOCSIS 3.0, Euro-DOCSIS 3.0
eco-label/standard ENERGY STAR
connector type Ethernet
form factor External
OS Required UNIX, Linux, Apple MacOS 9.0 or later, Microsoft Windows 2000/XP/Vista/7
warranty length 2-year limited
internal/external external
Encryption Algorithm AES

Back to Menu

Rated 4.4 out of 5�by 36 reviewers.
Rated 4 out of 5�by Motorola DOCSIS 3 This modem works as well as the previous Surfboard using DOCSIS 2.0. But the only reason for upgrading is if your cable company is going to shut you off for continuing to use the old modem. The fact is that the cable company caps your speed so that even if you can get a higher speed with the new modem they want you to pay more for it. Don't buy this until you need it. June 29, 2015
Rated 5 out of 5�by Good product Very easy to set up and it has worked fine so far June 29, 2015
Rated 5 out of 5�by Works as Advertized Time Warner cable guy installed it as part of my initial cable installation. It has worked flawlessly so far. Added a T-Link wireless router for $20 and now have excellent Wi-Fi. June 24, 2015
Rated 3 out of 5�by Mediocre Frequently fails to boot up without manually disconnecting power and reconnecting. June 22, 2015
  • 2015-07-06T10:56:47.529-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_36, tr_36
  • loc_en_US, sid_902317, prod, sort_default
2 3 4 5 ... 9 next>>

Back to Menu

Back To Top

From the Manufacturer|Powered by Answers™

Thank You Is the information in this section helpful? Yes / No

Features




Demo Video

{"assetWrapper":"root","sources":[{"width":960,"height":540,"src":"/_cp/products/1336405163138/tab-3d576829-f563-4ed5-8901-fc28aa4b683c/resource-5b27bf6b-5198-49d0-8aeb-6f24b322c30c.mp4.flash.flv","profile":"FLASH"},{"width":480,"height":270,"src":"/_cp/products/1336405163138/tab-3d576829-f563-4ed5-8901-fc28aa4b683c/resource-5b27bf6b-5198-49d0-8aeb-6f24b322c30c.mp4.mobile.mp4","profile":"MOBILE"},{"width":180,"height":101,"src":"/_cp/products/1336405163138/tab-3d576829-f563-4ed5-8901-fc28aa4b683c/resource-5b27bf6b-5198-49d0-8aeb-6f24b322c30c.mp4.blkbry.mp4","profile":"BLKBRY"}],"isAdaCompliant":false,"src":{"width":1920,"height":1080,"src":"/_cp/products/1336405163138/tab-3d576829-f563-4ed5-8901-fc28aa4b683c/resource-5b27bf6b-5198-49d0-8aeb-6f24b322c30c.mp4"},"customPoster":{"sources":[{"width":960,"height":540,"src":"/_cp/products/1336405163138/tab-3d576829-f563-4ed5-8901-fc28aa4b683c/resource-a6259499-b08e-455c-8986-8ec82d3e6cfd.jpeg.web.v1.960.jpg"}],"runtimeSrc":{"width":960,"height":540,"src":"/_cp/products/1336405163138/tab-3d576829-f563-4ed5-8901-fc28aa4b683c/resource-a6259499-b08e-455c-8986-8ec82d3e6cfd.jpeg.web.v1.960.jpg"},"src":{"width":960,"height":540,"src":"/_cp/products/1336405163138/tab-3d576829-f563-4ed5-8901-fc28aa4b683c/resource-a6259499-b08e-455c-8986-8ec82d3e6cfd.jpeg"}},"duration":78,"runtimePoster":{"sources":[{"width":1920,"height":1080,"src":"/_cp/products/1336405163138/tab-3d576829-f563-4ed5-8901-fc28aa4b683c/resource-a6259499-b08e-455c-8986-8ec82d3e6cfd.jpeg.poster.jpeg"}],"runtimeSrc":{"width":1920,"height":1080,"src":"/_cp/products/1336405163138/tab-3d576829-f563-4ed5-8901-fc28aa4b683c/resource-a6259499-b08e-455c-8986-8ec82d3e6cfd.jpeg.poster.jpeg"},"src":{"width":1920,"height":1080,"src":"/_cp/products/1336405163138/tab-3d576829-f563-4ed5-8901-fc28aa4b683c/resource-a6259499-b08e-455c-8986-8ec82d3e6cfd.jpeg.poster.jpeg"}}}

Images

Virtual Tour

{"ipiCompatible":false,"tourViews":[{"hotspots":[{"hotspotY":0.3535714285714286,"captionFromAttr":"Power Signal","direction":"right","hotspotX":0.3208955223880597},{"hotspotY":0.41785714285714287,"captionFromAttr":"Receive Signal","direction":"right","hotspotX":0.16791044776119404},{"hotspotY":0.4785714285714286,"captionFromAttr":"Send Signal","direction":"right","hotspotX":0.3208955223880597},{"hotspotY":0.5428571428571428,"captionFromAttr":"Online Signal","direction":"right","hotspotX":0.17164179104477612},{"hotspotY":0.6,"captionFromAttr":"Link Signal","direction":"right","hotspotX":0.3208955223880597},{"hotspotY":0.19642857142857142,"captionFromAttr":"Ethernet Connection","direction":"left","hotspotX":0.8805970149253731},{"hotspotY":0.44285714285714284,"captionFromAttr":"Coaxial Cable Connecction","direction":"left","hotspotX":0.8880597014925373},{"hotspotY":0.7678571428571429,"captionFromAttr":"Power Connection","direction":"left","hotspotX":0.8731343283582089}],"viewImage":{"sources":[{"width":540,"height":564,"src":"/_cp/products/1336405163138/tab-2306d874-d567-4a13-b993-feba20891d02/resource-7ffef411-50df-4754-831d-597958550bbe.jpg.w960.jpg","profile":"W960"},{"width":480,"height":501,"src":"/_cp/products/1336405163138/tab-2306d874-d567-4a13-b993-feba20891d02/resource-7ffef411-50df-4754-831d-597958550bbe.jpg.w480.jpg","profile":"W480"}],"runtimeSrc":{"width":540,"height":564,"src":"/_cp/products/1336405163138/tab-2306d874-d567-4a13-b993-feba20891d02/resource-7ffef411-50df-4754-831d-597958550bbe.jpg.web.v1.jpg"},"src":{"width":540,"height":564,"src":"/_cp/products/1336405163138/tab-2306d874-d567-4a13-b993-feba20891d02/resource-7ffef411-50df-4754-831d-597958550bbe.jpg"}}}]}
  1. Power Signal
  2. Receive Signal
  3. Send Signal
  4. Online Signal
  5. Link Signal
  6. Ethernet Connection
  7. Coaxial Cable Connecction
  8. Power Connection
Image/Features

Power Signal

Receive Signal

Send Signal

Online Signal

Link Signal

Ethernet Connection

Coaxial Cable Connecction

Power Connection

Product Tour
Click to Start

Specifications



GENERAL

CPE Network Interface10/100/1000Base-T Ethernet (RJ-45)
Data ProtocolTCP/IP
Dimensions5.24 in H x 5.24 in W x 1.65 in D
(133 mm x 133 mm x 42 mm)
Power9W (nominal)
Input PowerNorth America: 105 to 125 VAC, 60 Hz
Outside North America: 100 to 240 VAC, 50 to 60 Hz
RegulartoryRoHS compliant, ENERGY STAR V2 , COC V3, Compliant per the
“Code of Conduct on Energy Consumption of Broadband
Equipment”, CMM, MEPS



ENVIRONMENTAL

Operating Temperature32 F to 104 °F (0 °C to 40 °C)
Storage Temperature–22 °F to 158 °F (–30 °C to 70 °C)
Operating Humidity5 to 95% R.H. (non-condensing)



DOWNSTREAM

Modulation64 or 256 QAM
Capture Bandwidth100 MHz (edge to edge)

Maximum Theoretical Data Rate**

DOCSIS: 171.537 Mbps (4 channels) / 42.884 (single channel)
@ 256 QAM at 5.36 Msym/s

ProvisioningSupports IP addressing using IPv4 and/or IPv6 (dual stack)



UPSTREAM

Maximum Channel Rate**DOCSIS: 131.072 Mbps (4 channels) / 32.768 Mbps (single channel):
@ 128 QAM at 6.4 MHz
Frequency RangeDOCSIS 5-42 MHz (edge to edge), EuroDOCSIS and
optional DOCSIS 5 to 65 MHz (edge to edge)
CompatibilityPC: 90496, Pentium, or later; Windows Vista™, 2000, XP or 7 or Linux® with Ethernet connection (older versions of Windows, although not specifically supported, will work with this cable modem)
Macintosh: Power PC or later; OS 9 or higher, Ethernet connection
UNIX: Ethernet connection
Home Networking: Ethernet router or wireless access point
