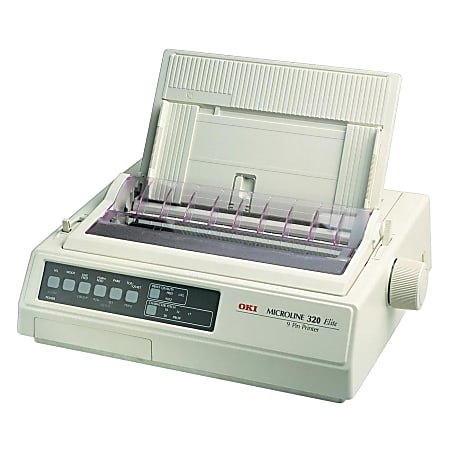

Oki MICROLINE 320 Turbo Dot Matrix Printer Item # 914343
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
This is the MicroLine 320 Turbo 9-pin Dot Matrix Printer for your PC from Okidata. This improved version of the ML320 is designed for dedicated printing in the most demanding point-of-sale, automation, and utility applications.The ML320 Turbo has a variety of print settings that will affect printing speed of the printer. Super Speed Draft is the fastest setting for pure speed and will print 435 Characters-Per-Second (CPS) at 12 Characters-Per-Inch (CPI) only. There is also a High Speed Draft that will print at 390CPS and a standard Utility setting that will print at 300CPS. The final setting is for Near Letter Quality (NLQ) printing which will print at 75CPS. Print Emulations supported by the ML320 Turbo include co-resident Epson, ESC/P, IBM, PPS II, and Okidata Microline emulation. The standard interface included with the printer is an IEEE 1284 bi-directional parallel (cable not included). The ML320 Turbo is also Microsoft WIN95 Plug & Play compatible. The unit comes equipped with 64KB of RAM with a receive buffer of 28KB. Fonts supported by the ML320 Turbo include the following Bar Codes: Code 39, UPC A, UPC E, EAN 8, EAN 13, Interleaved 2 of 5, Code 120 (A,B,C) and PostNet. Also supported are the following Code Pages: Standard ASCII; Epson Character Set I & II; IBM Character Set I, II & All; Code Page 850, 860, 863, 865, and 437; as well as BRASCII & ABICOMP. Paper types supported include Single/Multi-Part, Continuous, Cut Sheet, Envelopes, Card Stock and Labels. The paper feeders are rear and top standard, with an optional bottom with a push or pull tractor accessory. The standard tractor is a rear push with zero-tear and paper park.
|Additional Information||Receive Buffer: 28KB; Number of Copies: 6; HP JetAdmin compatible; Web JetAdmin compatible; OkiVIEW 32 compatible; Automatic Paper Forms Loading; Short Tear Off; Zero Tear Off; Rear Feed; Characters:Code Pages:; Standard ASCII; Epson Character Set I and II; IBM Character Set I, I and All; Code Page 850, 860, 863, 865, 437; BRASCII; ABICOMP; Graphics Resolution:OKI MICROLINE: 288 x 144 dpi maximum; Epson/IBM: 240 x 216 dpi maximum|
|Environmental Certification||ENERGY STAR|
|Input Voltage||120 V AC|
|Language Emulation||Epson FX; Oki Microline; IBM PPR III|
|Max Resolution (B&W)||240 x 216 dpi|
|maximum black and white print resolution||288 x 144 dpi|
|Maximum Mono Print Speed (cps)||435|
|maximum monthly volume||20,000 pages per month|
|Maximum Power Consumption||100 W|
|maximum sheet size||Custom Size|
|Media Feeders||1 x automatic ¦ 1 x manual - 1 sheet|
|Media Handling||Push Tractor Rear; 1 x Cut Sheet Feeder|
|media type||Envelope; Label; Continuous Form; Cut Sheet; Card Stock; Multiple Part Form; Single Sheet; Business Card; Plain Paper|
|number of columns||80|
|Number of Pins||9-pin|
|operating system compatibility||Software Included:Drivers & Utilities; OS Required:Microsoft Windows 2000; Microsoft Windows XP|
|ports||1 parallel; 1 USB|
|power source||AC Supply|
|RAM Installed (Max)||64 KB / 64 KB (max)|
|warranty length||1-year limited|
|Show More ▾|
From the Manufacturer|
OKI MICROLINE 320 Turbo w/ CSF Serial Impact Dot Matrix Printer
Tank Tough® reliability and expanded head gap for dedicated forms printing
The MICROLINE® 320/321 Turbo builds on the heritage of Tank-Tough® reliability established by OKI's ML320/321, our best-selling dot matrix printer all around the world.
This 9-pin dot matrix printer is blazing new trails in productivity. Engineered for dedicated printing in the most demanding point-of-sale, automation and utility applications, the ML320/321 Turbo can easily run twice as long as most printers in its class! It can simplify any job on virtually any stock, and it's economical enough to put wherever you need data on the spot.
The ML320/321 Turbo puts the "work" in workstations for financial departments, wholesale or retail sales counters, even for warehouse or manufacturing environments.
Set it up with a box of forms — even 6-part invoices! — and let it run and run and run.
Its relentless performance comes from the rugged printhead design that keeps your print images sharp for a 200-million character life. A lighter, stronger, more efficient motor reduces friction, heat build-up and wear. The long-lasting rack and pinion drive system ensures print quality longer than belt or cable systems. Plus, an impact-resistant chassis protects the entire mechanism, even in the harshest environments.
When it comes to endurance, dependability and efficiency, the ML320/321 Turbo sets a new standard.
Unmatched paper-handling capability
Specifically designed to offer enhanced paper-handling capabilities, the ML320/321 Turbo can be set with an expanded gap between printhead and platen, accommodating multi-part forms and stock that are up to twice as thick as those that fit our nearest competitor. A bottom feed feature* keeps the paper path short and straight when running stiff card stock or labels.
The ML320/321 Turbo printhead has a lightweight samarium cobalt magnet and powerful, spring-activated pins to deliver a stronger punch — right to the last page of a 6-part form!
For precisely formed output, a patented optical sensor accurately positions the printhead on the page, first time and every time. And the auto-tear feature accurately positions continuous forms for a clean tear at the perforation — eliminating wasted forms.
This reliable, flexible 9-pin dot matrix printer can meet your needs today and in the future, because it's the perfect replacement for the ML320/321. It's exactly the same size, built to stand up to harsh factory conditions, and is compatible with virtually all custom and "off-the-shelf" software.
The ML320/321 Turbo. A lot of tank-tough performance for dedicated forms printing.
* Requires optional push tractor
|Print Speed And Quality|
|Super Speed Draft (cps)||435|
|High Speed Draft (cps)||390|
|Utility Speed (cps)||300|
|Near Letter Quality Speed (cps)||75|
|Letter Quality Speed (cps)||N/A|
|Number Of Colors||1|
|Maximum Graphics Resolution (dpi)||240 x 216|
|Fonts and Bar Codes|
|Resident Scalable Fonts||Yes|
|Resident Bar Code Fonts||Yes (8 Types)|
|No. Of Copies||6|
|Automatic Paper Forms Loading||Yes|
|Short Tear Off||Yes|
|Zero Tear Off||Yes|
|Bottom Feed||w/Pull or Bott. Trac.|
|Pin Feed Platen||N/A|
|Top Pull Tractors||Optional|
|Push Tractors||Rear / (Opt. Bott.)|
|Paper Feed Rate (inch per second)||5|
|Cut Sheet Feeder Option||N/A|
|Roll Paper Stand Option||no|
|Number of Pins||9|
|Expanded Head Gap||Yes|
|Printhead Life (characters)||200 million|
|Memory Buffer Size||128K|
|Monthly Workload (pages)||13,000|
|Operating / Physical Specifications|
|Noise Level In Operating Mode (dBA)||57|
|Noise Level In Quiet Mode (dBA)||55|
|Ribbon Life (characters)||3 million|
|Power Voltage||120v or 220v|
|EPA Energy Star Compliance||Yes|
|Dimensions Of Narrow Carriage w/out Box|
(W x D x H) (inches)
|Dimensions Of Wide Carriage w/out Box|
(W x D x H) (inches)
|21.7 x 13.6 x 4.6|
|Weight Of Narrow Carriage w/out Box (lb.)||N/A|
|Weight Of Wide Carriage w/out Box (lb.)||20.9|
|Front Panel Direct Access Controls||Yes|
|Front Panel Limited Function Mode||Yes|
|Warranty||1-year parts, labor and printhead|
|Toll Free Telephone Support (hours/days)||24 / 7|
|Emulations||Epson FX, IBM PPR III and OKI MICROLINE|
|OS Compatibility||Windows® XP, 2000, 98/95, 3.x and NT® 4.0; MS-DOS®; Novell® – NDS®, NDPS, NLSP; IPX/SPX protocol; UNIX; HP® JetAdmin®, Web JetAdmin® compatible|
