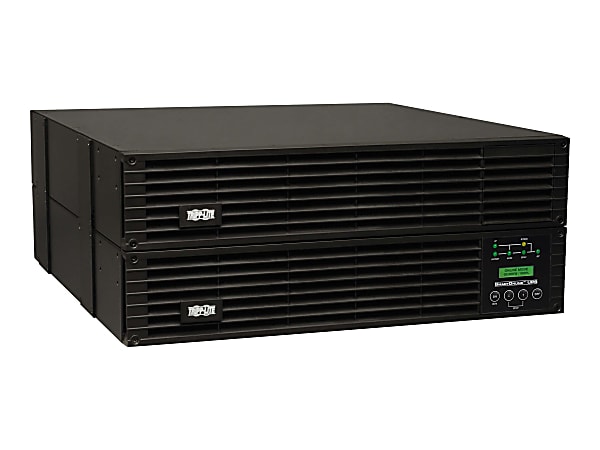

Tripp Lite UPS Smart Online 6000VA 5400W Rackmount 6kVA 200-240V USB DB9 Manual Bypass Hot Swap 4URM Item # 928357
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Featuring true on-line operation with pure sine wave output, zero transfer time to battery and complete UPS replacement capability with no downtime, the SU6000RT4UHVHW provides the highest level of protection available for mission-critical equipment from power outages, voltage fluctuations and transient surges. It converts incoming AC power to DC, and re-converts it back to filtered AC output with a pure sine wave, isolating connected components from all power problems in high-voltage environments. The SU6000RT4UHVHW has a 6kVA/5400W capacity and hardwire output.With its detachable PDU with bypass switch, the SU6000RT4UHVHW is easily hot-swappable by a user of any skill set—no need for lengthy and expensive service calls, and no downtime if a repair or battery replacement is needed. In bypass mode, the PDU passes power to equipment without the use of the power and battery modules, allowing them to be removed while keeping your application in operation.UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU6000RT4UHVHW’s runtime can be expanded with optional external battery packs.The SU6000RT4UHVHW features a highly efficient (96%) economy mode setting that can significantly reduce a facility's energy costs by minimizing heat output, reducing cooling requirements and consuming less electricity.An LCD display with LED indicators enables IT personnel to operating modes and conditions. The LCD/LED panel rotates for viewing in horizontal rack or vertical tower installations and includes an audible alarm that signals various conditions.The SU6000RT4UHVHW features a USB port and a DB9 ports for comprehensive network power monitoring and control. Network management card options available.The unit requires only 4U of rack space in a standard rack enclosure and can be installed in a 2-post rack using the 2POSTRMKITHD accessory, or in a tower configuration with the 2-9USTAND accessory.
|Backup/Run Time (Full Load)||2 Minute|
|Backup/Run Time (Half Load)||8.50 Minute|
|brand name||Tripp Lite|
|Bypass Switch||Automatic; Manual|
|Certifications & Standards||UL1778; CSA; FCC Part 15 Category A (EMI); IEC 61000-4-5 1995 B Surge Immunity|
|Emergency Power OFF||Yes|
|form factor||Tower/Rack Mountable|
|Input Current||31.90 A|
|Input Voltage||220 V AC|
|Load Capacity (VA)||6000 VA|
|Load Capacity (Watt)||5400 W|
|Maximum Battery Recharge Time||6 Hour|
|Network Management||SNMP Manageable|
|Output Voltage||240 V AC; 220 V AC; 230 V AC|
|package contents||SmartOnline EZ SU6000RT4UHVHW 6000 VA Tower/Rack Mountable UPS; PowerAlert Software Suite CD; USB Cable; Serial Cable; EPO Cable; Rail Kit|
|ports||1 serial; 1 USB|
|software included||PowerAlert Software Suite|
|Switching Time||0 ns|
|warranty length||2-year limited|
|Show More ▾|
SU6000RT4UHVHW SmartOnline® Hot-Swappable Double-Conversion Rack/Tower Sine Wave UPS with Bypass Switch, Expandable Runtime, Network Slot and LCD
POWER PROTECTION AND EXPANDABLE BATTERY BACKUP
for servers and network hardware
This on-line, double-conversion UPS system protects critical network systems from damage, downtime and data loss.
Why is this UPS a Good Investment?The success of your organization depends on critical information systems like servers and network hardware. If your critical systems don't have reliable power, employees can't work, communications go down, automated systems malfunction and productivity grinds to a halt. It would be nice if utility power was always reliable, but it isn't. Between severe weather, the aging electrical grid and hazards lurking inside your own walls, your servers and network hardware are under attack from power problems. Even a brief loss of power or a momentary surge can damage your equipment, corrupt your data, bring down your network and hurt your bottom line.
The potential costs of downtime are alarming. Surveyed averages range from $1,167 per minute for mid-size businesses (IDC) to $7,908 per minute for larger operations (Ponemon Institute). For a tiny fraction of these costs, you can prevent damage, downtime and data loss by installing this SmartOnline UPS system. True on-line double conversion is the highest level of power protection available. It provides precise voltage regulation, delivers continuous sine wave output and isolates equipment from power problems. This UPS system also has a high power factor, allowing you to connect a heavier load without overloading the UPS.
Common ApplicationsProtect Mission-Critical Servers and Network Hardware
Application Servers, Storage Servers, Database Servers, File Servers, Virtualization Servers, Proxy Servers, Web Servers, Cloud Platform Servers, Media Servers, VoIP Servers, Converged Infrastructure, Network Switches, PoE Switches, Firewalls, Network Appliances, Bridges, Gateways, Routers
Protect Equipment with Active PFC Power Supplies
Active PFC power supplies found in many devices require sine wave power.
Expandable Battery Backup
- Half-Load Runtime: This UPS system will support a 50% load (2700W) for up to 8.5 minutes using the included batteries.
- Extended Runtime: This UPS system allows you to connect one or more optional external battery packs to provide additional backup runtime. Some external battery packs can also be daisy-chained, allowing you to scale runtime to match almost any application requirement.
- Hot-Swappable Batteries: You can add or replace batteries without turning off the UPS system and disrupting the operation of connected equipment.
On-Line, Double-Conversion OperationThis UPS system provides the highest level of power protection available:
- Continuous on-line, double-conversion operation provides precise voltage regulation and sine wave output. It isolates connected equipment from most power problems, including blackouts, brownouts, overvoltages, transient voltage surges, electromagnetic (EMI/RFI) line noise, harmonic distortion, electrical impulses and frequency variations.
- Zero transfer time to battery prevents malfunctions and reboots of sensitive equipment potentially caused by the transition from line power to battery-derived power during outages.
- Fault-tolerant automatic bypass maintains utility output and avoids downtime during a variety of fault and overload conditions.
Hot-Swappable UPS with Bypass SwitchAll SmartOnline UPS systems have hot-swappable batteries and an automatic internal bypass that delivers power directly to connected equipment in the case of an internal fault or severe overload. These features support the continuous availability of critical systems like servers and network hardware connected to the UPS. This UPS system also includes a detachable PDU with bypass switch to provide even higher system availability. When the switch is set to "bypass," you can completely remove the UPS power module for maintenance, repair or replacement without requiring downtime. The detachable PDU remains connected to the AC input power source and continues to supply power to connected equipment.
Flexible Management OptionsThere are several ways to manage this UPS system:
- Use the multifunction LCD screen for comprehensive local management.
- Use the USB port with your computer's built-in power management features.
- Use the USB or serial port with your computer and Tripp Lite's PowerAlert® software. PowerAlert provides enhanced features like automatic file saves, event notification, logging, advanced device control and an SNMP agent that supports centralized management. Select UPS models include a convenient CD-ROM, or you can download the latest version of PowerAlert for free at Tripp Lite's website.
- Install an optional network card to enable standalone network management via SNMP, Web, SSH or telnet. The network card has an Ethernet port and embedded interface, allowing you to access advanced monitoring, control and notification features without directly connecting the UPS system to a computer. The network card also supports connecting one or more optional sensors for remote temperature, humidity and contact closure monitoring. (Available network cards and sensors include TLNETCARD with TLNETEM sensor; WEBCARDLX with E2MT, E2MTDO, E2MTDI and E2MTHDI sensors; and SNMPWEBCARD with ENVIROSENSE sensor. Refer to each model for specific features.)
Multifunction LCD/LED Control PanelThe convenient LCD/LED control panel provides easy access to detailed UPS settings and information. The illuminated LCD screen displays a variety of helpful data, including input/output voltage, input/output frequency, load level and battery level. An LED block diagram supplements the LCD screen by indicating the UPS operating mode and power conditions. The control panel also allows you to change the UPS system's operating mode and other settings. The control panel provides more information and greater control than comparable models, allowing you to diagnose and respond to power problems at the rack before they cause downtime.
- Economy Mode: This UPS system provides user-selectable economy mode operation to increase efficiency and cut operating costs. In economy mode, the UPS system suspends double conversion and operates with increased efficiency as long as input power quality is satisfactory. If input power quality becomes unsatisfactory, the UPS system immediately resumes double conversion until power quality returns to normal.
- User-Replaceable Battery: This UPS system has a user-replaceable, recyclable battery, allowing it to remain in service instead of going to a landfill.
- RoHS Compliance: This UPS system complies with the RoHS (Restriction of Hazardous Substances) Directive, limiting the use of hazardous substances in manufacturing.
Dependable Service from an Industry LeaderService and Support
- 2-Year Product Warranty: If this UPS system (including the internal battery) proves defective in material or workmanship within that period, Tripp Lite will repair or replace it at no charge.
- $250,000 Insurance: Tripp Lite will repair or replace connected equipment damaged by surges – even lightning strikes!
- Free Tech Support: Chicago-based, in-house tech specialists are available by phone, email and chat.
- Over 95 Years: Founded in 1922, Tripp Lite has a long-established and proven track record of providing reliable products and responsive customer service.
- Trusted Name: From the smallest office to the largest data center, customers worldwide trust Tripp Lite to power, protect, manage and connect valuable IT equipment.
- Third-Party Safety Testing and ISO 9001 Certification
Key SpecificationsModel: SU6000RT4UHVHW
Load Capacity: 6 kVA (5.4 kW)
Power Factor: 0.9
Nominal AC Input: 200V; 208V; 220V; 230V; 240V (50/60 Hz)
Nominal AC Output: 200V; 208V; 220V; 230V; 240V (50/60 Hz)
Output Voltage Regulation (Line Mode): +/- 2%
AC Outlets: Hardwire
Output Waveform (AC Mode): Pure Sine Wave
Output Waveform (Battery Mode): Pure Sine Wave
AC Input Connection: Hardwire
Half-Load Runtime (Included Batteries): 8.5 min. (2700W Load)
User-Replaceable Battery: Yes (RBC5-192)
Expandable Battery Runtime: Yes (Requires Optional External Battery Pack)
Compatible External Battery Packs: BP192V12-3U; BP192V557C-1PH; BP192V787C-1PH; BP192V1037C-1PH; BP192V1407C-1PH; BP192V5RT2U (Limit 1)
Communications: USB Port (HID-Compliant); Serial Port (DB9); Network Card Slot; EPO
Primary Form Factor: 4U Rack (Supports 4-post rack installation with included kit. Add 2POSTRMKITHD for 2-post rack installation. Add 2-9USTAND for tower installation.)
Dimensions: 6.85 x 17.5 x 20.67 in. (17.4 x 44.5 x 52.5 cm)
Unit Weight: 116.2 lb. (52.7 kg)
Standards: UL 1778 (USA); CSA (Canada); CE; FCC A (EMI); RoHS
Product Warranty (Worldwide): 2-Year Limited Warranty
Connected Equipment Insurance (U.S., Canada and Puerto Rico): $250,000
What's Included: UPS, 4-Post Rack Installation Kit, USB/Serial/EPO Cabling, PowerAlert Software, Manual
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Actual products may differ slightly from photos. Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. Runtime varies with load, battery condition and other factors. Go to Tripp Lite's website for more information, including complete warranty terms and conditions.
