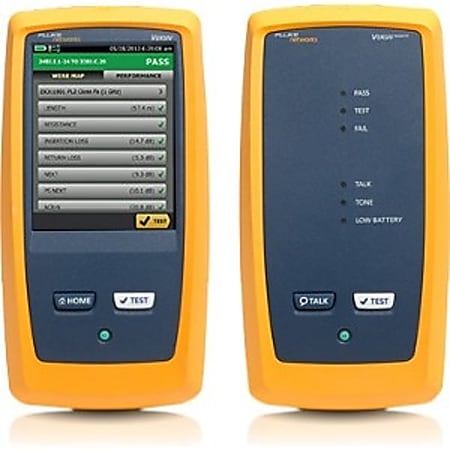

The DSX-5000 CableAnalyzer improves the efficiency of copper certification with unmatched speed for testing Cat 6A and Class FA while meeting darft IEC Level V - the most stringent accuracy requirement. The ProjX Management System helps ensure jobs are done correctly the first time and helps tracks progress from set-up to systems acceptance. Versiv platform supports modules for fiber testing (Both OLTS and OTDR) and Wi-Fi Analysis and Ethernet troubleshooting. The platform is easily upgradeable to support future standards. Troubleshoot faults faster with the Taptive user interface which graphically displays the source of failures including crosstalk, return loss and shield faults.
|battery type||lithium ion (Li-ion)|
|brand name||Fluke Networks|
|Cable Types||CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a|
|Certifications & Standards||EMC: EN 61326-1; Safety:CSA 22.2 No. 61010; IEC 61010-1 2nd Edition + Amendments 1, 2|
|Device Function||Fiber Optic Cable Testing; Twisted Pair Cable Testing; Cable Length Testing|
|Display Screen Type||LCD|
|Drop Specification||3.3 ft|
|Input Voltage||7.2 V DC|
|Maximum Length Measurement||2624.67 ft|
|Media Type Supported||Twisted Pair|
|ports||1 Ethernet (RJ-45); 1 USB|
|screen size||5.7 in.|
|Test Standards||TIA-568-C.2, ISO/IEC 11801|
|Tests, Tools and Measurements||Length, wiremap, near-end crosstalk, attenuation-to-crosstalk ratio far end, return loss, delay skew between pair, propagation delay, DC loop resistance, insertion loss (attenuation), power sum|
|Weight (Approximate)||3 lb|
