D-Link® DGS-105 5-Port Gigabit Ethernet Desktop Switch Item # 941857 OfficeMax # 23614992

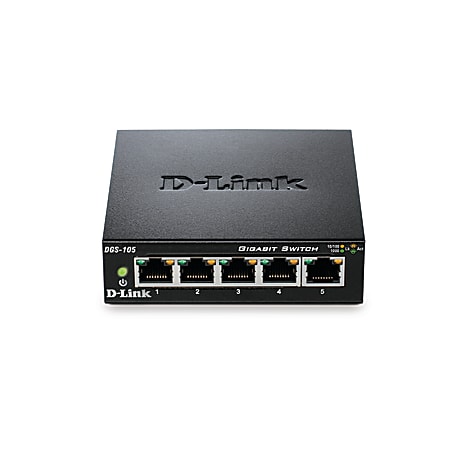

D-Link® DGS-105 5-Port Gigabit Ethernet Desktop Switch
Click to View Gallery

    • Greener choice — complies with Energy Star® standards.

    Back to Menu

    Item # 941857
    Ethernet Technology Gigabit Ethernet
    Service & Support 5 years warranty
    MAC Address Table Size 8K entries
    Total Number of Network Ports 5
    Status Indicators Link activity, power
    Max Operating Temperature 104 °F
    height 1.2"
    Additional Information Jumbo Frames: 9.6KB
    Features Flow control, auto-sensing per device, auto-negotiation, packet filtering, store and forward
    Interfaces 5 x 1000Base-T - RJ-45
    Number of Network (RJ-45) Ports 5
    width 7.8"
    depth 4.5"
    010--OD-SKU-Number 941857
    Product Name DGS-105 5-Port Desktop Switch
    Twisted Pair Cable Standard Category 5
    Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x; FCC Class B certified, CSA
    Service & Support Details Limited warranty - 5 years
    manufacturer D-Link Systems, Inc
    Subtype Gigabit Ethernet
    Management QoS: 802.1p (4 Queues); Priority queuing
    weight 1.13 lb
    Eco-conscious Energy Efficient
    brand name D-Link
    Humidity Range Operating 10 - 95%
    Min Operating Temperature 32 °F
    Port/Expansion Slot Details 5 x Gigabit Ethernet Network
    Power Consumption Operational 4.5 Watt
    Media Type Supported Twisted Pair
    Enclosure Type Desktop
    Layer Supported 2
    Product Type Ethernet Switch
    Power Device External power adapter
    ports 5 x 10/100/1000
    form factor Desktop; Wall Mountable
    warranty length 5-year limited
    model name DGS-105
    Network Technology 10/100/1000Base-T

    Back to Menu

    Back to Menu

    Back to Menu

    Back To Top

    From the Manufacturer|Powered by Answers™

    Thank You Is the information in this section helpful? Yes / No

    Overview

    • Overview

      The DGS-105 5 Port Gigabit Unmanaged Metal Desktop Switch provides a quick, easy and economical way to add high speed networking to home offices and small/medium businesses. With data transfer speeds of up to 2000 Mbps the DGS-105 is ideal for fast file transfers, and smooth media streaming. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
    • Effortless Gigabit Networking

      With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-105 Switch is ideal for transferring files quickly. Easy access front Ethernet ports with two color LED indicators per port allows you to quickly distinguish link status and speed. The switch supports IEEE 802.1p QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth media streaming and VoIP calling. Additionally the switch incorporates a Kensington Security Slot on the rear panel allowing users to securely fasten the unit to a table or desk.

      Gigabit Connection for Home and SOHO

      The DGS-105 Switch offers an economical way for SOHO and small/medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
    • Think Green

      The DGS-105 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the cable length and using only as much power as necessary. Working together these features drastically reduce power consumption and heat dissipation, resulting in extended life and substantial cost savings.

      IEEE 802.1p QoS

      QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.

      Environmentally Friendly

      The DGS-105 Switch was designed with the environment in mind.  It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. Built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmental friendly.
    • Cable Diagnostics Function

      The D-Link Cable Diagnostics Function enables users to be instantly aware of cable conditions through the LED display on the front-panel. Users can determine whether the pin connections of their cable connectors are correct, facilitating prompt network troubleshooting if required.

    Features

    • Built-in D-Link Green Technology
    • Rugged metal housing
    • Inexpensive Gigabit solution for small and medium business
    • Five 10/100/1000 Mbps Gigabit ports
    • 10 Gbps switching fabric
    • Auto MDI/MDIX crossover for all ports
    • Secure store-and-forward switching scheme
    • Full/half-duplex for Ethernet/Fast Ethernet speeds
    • IEEE 802.3x Flow Control
    • Supports Jumbo Frames
    • Supports IEEE 802.1p QoS
    • Supports Cable Diagnostics Function
    • RoHS compliant
    • Plug-and-play installation



    Images

    Specification

    Switching Fabric

    • 10Gbps

    Standards

    • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
    • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
    • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
    • ANSI/IEEE 802.3 NWay auto-negotiation
    • IEEE 802.3x Flow Control
    • IEEE 802.1p QoS
    • IEEE 802.3az Energy-Efficient Ethernet (EEE) Protocol
    • CSMA/CD

    Data Transfer Rates

    • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    • Gigabit Ethernet: 2000 Mbps (full duplex)

    Network Cables

    • 10BASE-T: UTP CAT 3, 4, 5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
    • 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)

    Media Interface Exchange

    • Auto MDI/MDIX adjustment for all ports

    LED Indicators

    • Per port: Link/Activity/Speed
    • Per device: Power

    Transmission Method

    • Store-and-forward

    MAC Address Table

    • 2K

    MAC Address Learning

    • Automatic update

    Packet Filtering/Forwarding Rates

    • Ethernet: 14,880 pps per port
    • Fast Ethernet: 148,800 pps per port
    • Gigabit Ethernet: 1,488,000 pps per port

    RAM Buffer

    • 128KB per device

    Jumbo Frames

    • 9,216 Bytes

    QoS

    • 4 Queues, strict mode

    General Specifications

    DC Input

    • External 5V/1 A Level “V” Power Adapter

    Power Consumption

    • Power On (Standby): DC input: 0.2 watts
    • AC input: 0.74 watts
    • Maximum: DC input: 1.55 watts
    • AC input: 2.75 watts

    Heat Dissipation

    • Power On (Standby) AC input: 2.5234 BTU/h
    • Maximum DC input: 5.2855 BTU/h

    MTBF

    • 593,755 hours

    Operating Temperature

    • 32 to 104 ˚F (30 to 40 ˚C)

    Storage Temperature

    • 14 to 158 ˚F (-10 to 70 ˚C)

    Operating Humidity

    • 10% to 90% RH non-condensing

    Storage Humidity

    • 5% to 90% RH non-condensing

    Dimensions

    • 3.9 x 3.8 x 1.1 inches(100 x 98 x 28 mm)

    Weight

    • 0.57 lbs (256 grams)

    Certifications

    • FCC Class B
    • ICES-003 Class B
    • CE Class B
    • C-Tick Class B
    • VCCI Class B
    • cUL
    • CB

    Warranty

    • Limited Lifetime

    Ordering Information

    • DGS-105     5-Port Gigabit Unmanaged Metal Desktop Switch
