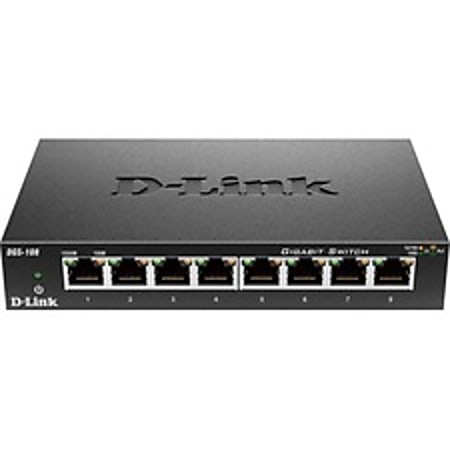

D-Link® DGS-108 8-Port 10/16 Gbps Gigabit Desktop Ethernet Switch
This item is in your cart

D-Link® DGS-108 8-Port 10/16 Gbps Gigabit Desktop Ethernet Switch

Item # 941956 OfficeMax # 23615009
Boost your business' wired network with gigabit speed
  • Power, performance and reliability — cost-effective, space-saving design.
  • High-speed networking solution.
Your Price
$44.99 $44.99
/ each
Protect your investment  Learn More
No Protection
2-Year Product Replacement Plan, Includes Coverage For Accidental Drops & Spills, $0-$49.99
$7.99
$7.99 7.99
  • Quantity

In Stock

  • Estimated delivery 3-5 business days

Free in store pickup

Sold in stores Check your store availablity
Pricing, Assortment and Availability

    Boost your business' wired network with gigabit speed

    • Power, performance and reliability — cost-effective, space-saving design.
    • High-speed networking solution.  Upgrades systems to a faster 10/16 Gbps switching-fabric network.
    • Saves space.  The connector and ports are located in the rear to avoid messy cables on the desk.
    • Cable Diagnostic LEDs.  Displays instant link status and activity information for an easy status check.
    • D-Link Green technology.  Powers down unused ports, saving energy without affecting performance.
    • Tough, metal exterior provides a durable alternative to plastic enclosures.
    • Plug-and-play set up.  Requires no configuration, and connects multiple computers around the office.
    • Complies with IEEE 802.3, 802.3u and 802.3x standards.  Supports IEEE 802.1p QoS (4 Queues, Strict Mode).

    Back to Menu

    Item # 941956
    Manufacturer # DGS-108
    Ethernet Technology Gigabit Ethernet
    plug and play yes
    maximum data transfer rate 2 Gbps
    cable included yes
    Total Number of Network Ports 8
    height 1.2"
    Additional Information Address Aging Timer: Automatic Update; Jumbo Frames: 9.6KB
    Certifications & Standards IEEE:; IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x; IEEE 802.1PEmissions:; FCC Class B; CE Class B; CSA International
    Number of Network (RJ-45) Ports 8
    width 7.8"
    depth 4.5"
    Product Name DGS-108 Unmanaged 8-Port 10/100/1000Mbps Switch
    Twisted Pair Cable Standard Category 5
    manufacturer D-Link Systems, Inc
    Additional Warranty Information Free Technical Support
    Management QoS: 802.1p (4 Queues)
    weight 1.13 lb
    brand name D-Link
    Port/Expansion Slot Details 8 x Gigabit Ethernet Network
    dimensions 1.4"H x 5.8"W x 3.4"D
    Media Type Supported Twisted Pair
    Layer Supported 2
    automatic speed sensing yes
    Product Type Ethernet Switch
    ports EthernetEthernet 10/100Ethernet 10/100/1000
    form factor Desktop
    warranty length limited lifetime
    model name DGS-108
    internal/external External
    Network Technology 10/100/1000Base-T

    Back to Menu

    Rated 4.3 out of 5�by 4 reviewers.
    Rated 4 out of 5�by D Link is a great buy! Internet was faster. I am glad we choose this product. July 8, 2015
    Rated 5 out of 5�by Does What It Is Supposed To Do This product is designed to add ports without degrading the network. It does that. No bells and whistles. Easy to install. Reasonable price. July 6, 2015
    Rated 4 out of 5�by Great product, could use minor improvements This is a solid 8 port gigabit ether net switch. The led lights clearly show when you have a gigabit connection, and the metal case is a very nice feature. My only complaint is with the rear mounting slot. Some people don't wall mount it, but if you are planning on doing so, and want to mount it vertically meaning it mounts with the ports on the left or right side it doesn't have a slot so that it easily does that. It has two slots for a horizontal mount so that the ports are either on top or on the bottom. However I was able to work around that issue with a little handy work. I wouldn't let that discourage you from this item, but just be aware if wall mounting is important to you, otherwise it's a solid product. June 17, 2015
    Rated 4 out of 5�by Good Switch It works and it doesn't hand out fake IP addresses which can mess up my network. Also it doesn't slow down the network. April 6, 2015
    • 2015-09-02T20:27:19.877-05:00
    • bvseo_lps, prod_bvrr, vn_prr_5.6
    • cp-1, bvpage1
    • co_hasreviews, tv_4, tr_4
    • loc_en_US, sid_941956, prod, sort_default
    1-4 of 4

    Back to Menu

    Back To Top

    From the Manufacturer|Powered by Answers™

    Thank You Is the information in this section helpful? Yes / No

    Overview

    • Overview

      The DGS-108 8 Port Gigabit Unmanaged Metal Desktop Switch provides a quick, easy and economical way to add high speed networking to home offices and small/medium businesses. With data transfer speeds of up to 2000 Mbps the DGS-108 is ideal for fast file transfers, and smooth media streaming. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
    • Effortless Gigabit Networking

      With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-108 Switch is ideal for transferring files quickly. Easy access front Ethernet ports with two color LED indicators per port allows you to quickly distinguish link status and speed. The switch supports IEEE 802.1p QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth media streaming and VoIP calling. Additionally the switch incorporates a Kensington Security Slot on the rear panel allowing users to securely fasten the unit to a table or desk.

      Gigabit Connection for Home and SOHO

      The DGS-108 Switch offers an economical way for SOHO and small/medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
    • Think Green

      The DGS-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the cable length and using only as much power as necessary. Working together these features drastically reduce power consumption and heat dissipation, resulting in extended life and substantial cost savings.

      IEEE 802.1p QoS

      QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.

      Environmentally Friendly

      The DGS-108 Switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. Built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmental friendly.
    • Cable Diagnostics Function

      The D-Link Cable Diagnostics Function enables users to be instantly aware of cable conditions through the LED display on the front-panel. Users can determine whether the pin connections of their cable connectors are correct, facilitating prompt network troubleshooting if required.

    Features

    • Built-in D-Link Green Technology
    • Rugged metal housing
    • Inexpensive Gigabit solution for small and medium business
    • Eight 10/100/1000 Mbps Gigabit ports
    • 16 Gbps switching fabric
    • Auto MDI/MDIX crossover for all ports
    • Secure store-and-forward switching scheme
    • Full/half-duplex for Ethernet/Fast Ethernet speeds
    • IEEE 802.3x Flow Control
    • Supports Jumbo Frames
    • Supports IEEE 802.1p QoS
    • Supports Cable Diagnostics Function
    • RoHS compliant
    • Plug-and-play installation



    Images

    Specification

    Switching Fabric

    • 16Gbps

    Standards

    • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
    • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
    • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
    • ANSI/IEEE 802.3 NWay auto-negotiation
    • IEEE 802.3x Flow Control
    • IEEE 802.1pQoS
    • IEEE 802.3az Energy-Efficient Ethernet (EEE) Protocol
    • CSMA/CD

    Data Transfer Rates

    • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    • Gigabit Ethernet: 2000 Mbps (full duplex)

    Network Cables

    • 10BASE-T: UTP CAT 3, 4, 5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
    • 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)

    Media Interface Exchange

    • Auto MDI/MDIX adjustment for all ports

    LED Indicators

    • Per port: Link/Activity/Speed
    • Per device: Power

    Transmission Method

    • Store-and-forward

    MAC Address Table

    • 8K

    MAC Address Learning

    • Automatic update

    Packet Filtering/Forwarding Rates

    • Ethernet: 14,880 pps per port
    • Fast Ethernet: 148,800 pps per port
    • Gigabit Ethernet: 1,488,000 pps per port

    RAM Buffer

    • 128KB per device

    Jumbo Frames

    • 9,216 Bytes

    QoS

    • 4 Queues, strict mode

    General Specifications

    DC Input

    • External 5V/1 A Level “V” Power Adapter

    Power Consumption

    • Power On (Standby): DC input: 0.45 watts
    • AC input: 1.14 watts
    • Maximum: DC input: 2.75 watts
    • AC input: 4.15 watts

    Heat Dissipation

    • Power On (Standby) AC input: 3.8874 BTU/h
    • Maximum DC input: 14.083 BTU/h

    MTBF

    • 858,090 hours

    Operating Temperature

    • 32 to 104 ˚F (0 to 40 ˚C)

    Storage Temperature

    • 14 to 158 ˚F (-10 to 70 ˚C)

    Operating Humidity

    • 10% to 90% RH non-condensing

    Storage Humidity

    • 5% to 90% RH non-condensing

    Dimensions

    • 6.3 x 4 x 1.1 inches (162 x 102 x 28 mm)

    Weight

    • 0.90 lbs (412 grams)

    Certifications

    • FCC Class B
    • ICES-003 Class B
    • CE Class B
    • C-Tick Class B
    • VCCI Class B
    • cUL
    • CB

    Warranty

    • Limited Lifetime

    Ordering Information

    • DGS-108     8-Port Gigabit Unmanaged Metal Desktop Switch

    Datasheet
