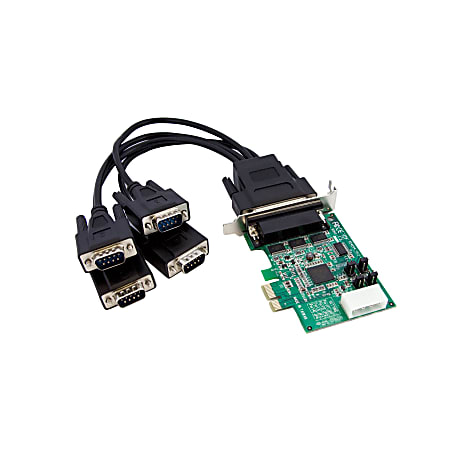

StarTech.com 4 Port Low Profile Native RS232 PCI Express Serial Card with 16950 UART Item # 946563
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Add 4 high-speed RS-232 serial ports to your PC through a low profile PCI Express expansion slot. The PEX4S952LP 4 Port Low Profile Native RS232 PCI Express Serial Card (16950 UART) turns a PCI Express slot into four RS232 (DB9) serial connections.The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows 2000/XP/2003/Vista, Linux Kernel 2.6.11 and up, and ships with a half-height/low profile bracket installed, but also includes an optional full profile bracket that lets you add four serial ports to virtually any computer (regardless of the case form factor).
|maximum data transfer rate||Up to 3.59 Mbit/s|
|System Requirements||Operating System(s):Windows 8 (32/64 bit); Windows 7 (32/64 bit); Windows Vista (32/64 bit); Windows XP (32/64 bit); Windows 2000; Windows CE 4.2; Windows 5.0; Windows 6.0; Windows Server 2008 (32/64 bit); Windows Server 2008 R2; Windows 2003 (32/64 bit); Linux 2.4.x +|
|package contents||4 Port LP PCI Express Serial Adapter Card; Full-profile Bracket|
|Product Name||4 Port Low Profile PCI Express Serial Card - 16950|
|Host Interface||PCI Express x1|
|Ports Expandability||4 x 9-pin DB-9 Male RS-232 - Serial, Via Cable|
|form factor||Plug-in Card|
|warranty length||2-year limited|
|Show More ▾|
