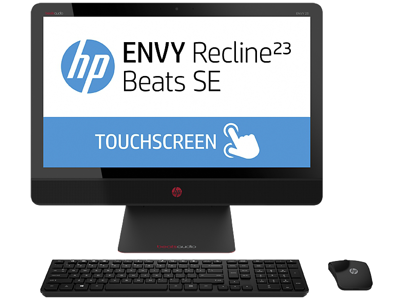

HP ENVY Recline TouchSmart 23-m230 Beats SE All-In-One Computer With 23" Touch-Screen Display & 4th Gen Intel® Core™ i5 Processor, Windows 8.1
Click to View Gallery
This item is in your cart

HP ENVY Recline TouchSmart 23-m230 Beats SE All-In-One Computer With 23" Touch-Screen Display & 4th Gen Intel® Core™ i5 Processor, Windows 8.1

Item # 949223
Type, tap, swipe and pinch — the Recline invites you to reach out and touch.
  • HD touchscreen plus the full-throttle sound of Beats Audio™ results in an incredible multimedia experience.
  • LED backlighting for a more energy-efficient screen and full HD (1920 x 1080) resolution.
Your Price
$1,194.99 $1,194.99
/ each
Protect your investment Learn More
No Protection
2-Year Product Service Plan, $1,000-$2,999.99
$199.99 199.99

Type, tap, swipe and pinch — the Recline invites you to reach out and touch.

  • HD touchscreen plus the full-throttle sound of Beats Audio™ results in an incredible multimedia experience.  Quad speakers and adjustable 23" 10-point touchscreen give the ENVY its deserved name—no need to tell anyone how productive it really is! The Recline lets you work and play all day long.
  • LED backlighting for a more energy-efficient screen and full HD (1920 x 1080) resolution.
  • High-performance Intel Core i5 processor.  Handles the demands of today's complex software. Great for multitasking, too.
  • Huge 8GB memory lets you run your most demanding programs.
  • Large 1TB (1000GB) hard drive holds thousands of songs, photos and documents.
  • Wireless-N (802.11n) for high-performance, cable-free networking.  Access wireless networks to share files, surf the Web and exchange email. Fully compatible with 802.11a/b/g. High-speed wired networking is also supported.
  • Plays and burns CDs and DVDs.
  • Easily connect to external video devices with the HDMI input.  Connect to a Blu-ray™ or DVD player and view movies and more on your computer. Cable is sold separately.
  • 2 USB 3.0 ports for ultra-fast data transfers.  Up to 10 times faster than USB 2.0, yet fully compatible with USB 2.0 devices. Also includes 3 USB 2.0 ports, including one specifically designed for a keyboard/mouse dongle.
  • Built-in HD webcam and microphone.  Keep in touch with others via video and voice messaging.
  • Bluetooth® wireless.  Permits short-range wireless data transfers at up to 30' with other Bluetooth-enabled devices, such as mice, phones and printers.
  • Includes a wireless keyboard and wireless optical mouse.
  • Microsoft® Windows® 8.1.
  • Greener choice — complies with Energy Star® and EPEAT® Gold standards.

Back to Menu

Item # 949223
Manufacturer # F3D56AA#ABA
software included Amazon Kindle e-reader; Box; Cyberlink PhotoDirector; CyberLink PowerDirector; CyberLink YouCam; DTS Sound+; Getting Started with Windows 8; HP Connected Music by Meridian; HP Connected Photo; HP Games; HP Recovery Manager; HP SimplePass; HP Support Assistant; Microsoft Games; Netflix; Pinger; Vudu; 7-Zip; McAfee LiveSafe; Buy Office
Screen Mode Full HD
processor speed 2.9 GHz
Hyper-Threading Yes
Product Series 23-m200
processor brand Intel
Direct Media Interface 5 GT/s
memory speed PC3-12800
Graphics Controller Manufacturer NVIDIA
Optical Drive Type DVD-Writer
Multi-touch Screen Yes
Product Line ENVY Recline
Graphics Memory Capacity Up to 1 GB
Webcam Yes
Graphics Memory Accessibility Dedicated
video hardware nVidia GeForce GT 730A
64-bit Processing Yes
postconsumer recycled content 0%
peripherals included keyboard; mouse
brand name HP
Wireless LAN Standard IEEE 802.11a/b/g/n
Number of Processors Supported 1
Number of Total Memory Slots 2
processor type Core i5
Operating System Architecture 64-bit
Bluetooth Standard Bluetooth 4.0
Number of USB 2.0 Ports 3
hard drive capacity 1 TB
Standard Memory 8 GB
Keyboard Yes
Processor Core Dual-core (2 Core)
Cache 4 MB
total recycled content 0%
Graphics Controller Model GeForce GT 730A
Product Type All-in-One Computer
ports 3 USB 2.0; 2 USB 3.0
Bluetooth Yes
Maximum Turbo Speed 3.6 GHz
audio hardware Beats Audio
diagonal screen size 23 inches
segmentation Entertainment
Hybrid Hard Drive Interface Serial ATA
Maximum Power Supply Wattage 150 W
height 17.9"
SSD Cache Capacity 8 GB
Headphone/Microphone Combo Port Yes
maximum memory capacity 16 GB
optical drive DVD±RW
Total Number of USB Ports 5
hard drive type solid state drive
Optical Media Supported DVD-RAM/± R/± RW
width 10.4"
package contents ENVY Recline 23-m230 TouchSmart Beats SE All-in-One Desktop PC (ENERGY STAR); Keyboard; Mouse; USB SuperMulti External DVD Writer
depth 22"
Product Name ENVY Recline 23-m230 TouchSmart Beats SE All-in-One Desktop PC (ENERGY STAR)
TV tuner no
wired connectivity 10/100/1000 Ethernet
Backlight Technology LED
manufacturer Hewlett-Packard
Ecolabel ENERGY STAR; EPEAT Silver
Number of Processors Installed 1
wireless connectivity 802.11a/b/g/n
Operating Systems Windows 8
modem no modem
Audio Line Out Yes
frontside bus speed 2900 MHz
weight 26.83 lb
operating system details Windows 8.1
Maximum Memory 16 GB
memory type DDR3 SDRAM
controller type Serial ATA
Number of USB 3.0 Ports 2
Hybrid Hard Drive Capacity 1 TB
Network (RJ-45) Yes
Pointing Device Type Mouse
screen resolution 1920 x 1080
Memory Standard DDR3-1600/PC3-12800
memory card reader Yes
Graphics Memory Technology DDR3 SDRAM
aspect ratio 16:9
Wireless LAN Yes
memory 8 GB
eco-label/standard EPEAT Gold
processor model Core i5-4570T
Memory Technology DDR3 SDRAM
form factor Desktop
warranty length 1-year limited
model name ENVY Recline TouchSmart 23-m230 Beats SE
Display Screen Type Active Matrix TFT Color LCD
Touchscreen Yes

Back to Menu

Rated 5 out of 5�by 1 reviewer.
Rated 5 out of 5�by Great Touchscreen-Comes with DVD Drive Great computer. Does what I expected. Very quite. Like the recline features. However, Office Depot told me that it did not come with a DVD Drive. It does.So now I have an extra DVD Burner. April 26, 2014
  • 2015-07-31T23:28:40.063Z
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_1, tr_1
  • loc_en_US, sid_949223, prod, sort_default
1-1 of 1

Back to Menu

Back To Top
Key specs

Operating System

Windows 8.1 64

Memory (RAM)

8 GB 1600 MHz DDR3 (1 x 8 GB)

Hard Drive

1 TB 5400 rpm SATA SSHD


Intel® Core™ i5 processor

Screen Size

23" diagonal IPS FHD multitouch-enabled LED-backlit (1920 x 1080)


26.72 lb

Touch Screen



Supported Operating Systems

Operating system installed

  • Windows 8.1 64

Memory (RAM)

Memory, standard

  • 8 GB 1600 MHz DDR3 (1 x 8 GB)

Memory, maximum

  • Upgradeable to 16 GB

Memory slots

  • 2 DIMM


Hard drive description

  • 1 TB 5400 rpm SATA SSHD

Optical drive

  • HP USB SuperMulti External DVD Writer

Flash cache

  • 8 GB


Processor family

  • Intel® Core™ i5 processor


  • Intel® Core™ i5-4570T with Intel HD Graphics 4600 (2.9 GHz, 4 MB cache, 2 cores)

Graphic Subsystem


  • NVIDIA GeForce GT 730A (1 GB DDR3 dedicated)

Display Specifications


  • 23" diagonal IPS FHD multitouch-enabled LED-backlit (1920 x 1080)

Battery and Power

Power supply type

  • 150 W external AC power adapter



  • 26.72 lb


Minimum dimensions (W x D x H)

  • 10.44 x 22.02 x 17.87 in

Camera Specifications


  • 720p HP TrueVision HD Webcam with integrated microphones

Multimedia and Input Devices

Pointing device

  • USB optical mouse

Audio features

  • Beats audio
  • Integrated speakers

Connectivity and Communications


  • 3 USB 2.0
  • 2 USB 3.0
  • 1 HDMI
  • 1 headphone-out/microphone-in combo jack
  • 1 subwoofer out

Network interface

  • Integrated 10/100/1000BASE-T Gigabit Ethernet LAN


  • 802.11a/b/g/n (2x2) and Bluetooth 4.0 MiniCard combo

System Components

Form factor

  • All-in-One

Certification and Compliance

Energy efficiency

  • ENERGY STAR® qualified
  • EPEAT® Silver

Software and Applications

Pre-installed software

  • Amazon Kindle e-reader
  • Box
  • CyberLink PhotoDirector
  • CyberLink PowerDirector
  • CyberLink YouCam
  • DTS Sound+
  • Getting Started with Windows 8
  • HP Connected Music by Meridian
  • HP Connected Photo
  • HP Games
  • HP Recovery Manager
  • HP SimplePass
  • HP Support Assistant
  • Microsoft Games
  • Netflix
  • Pinger
  • Vudu
  • 7-Zip

Software includeds1

  • McAfee LiveSafe™

Software - Productivity & finance

  • Buy Office



  • 1-year limited hardware warranty and 1 year of software support
  • 24x7 technical assistance available online or toll-free by phone
  • Lifetime use of HP Support Assistant
Product highlights
Beats Audio™ through-and-through.

Studio-quality sound and quad speakers combined with a bold design deliver a premium Beats Audio™ experience.

Play video Demo 0:57 min
Adjustable design to work and play the most natural way.

Position the touchscreen four different ways with this revolutionary adjustable design. Pull it below the table and close to your lap for easy touch navigation and position it upright and at different angles to use the keyboard or watch movies.

Enjoy the view.

Enjoy a stunning entertainment experience from almost every angle. Watch videos, movies, and more on a large 23-inch diagonal Full HDh2 display.

The perfect touch.

Tap, swipe, and type like you do on your smartphone and tablet. A responsive 10-point touchscreen lets you get the most out of Windows 8.h2 With the smooth, ultra-reactive screen, you’ll find love at first touch.

Additional product features
Make yourself comfortable.

Sit back, relax, and type—or tap, swipe, and pinch. Perform touch gestures naturally with an adjustable stand that allows for below-desk typing and deep recline.

A stunning display.

Movies and games are big enough to share on this 23-inch diagonal Full HD touchscreen that delivers wide viewing angles, rich colors, and sharp graphics.f3

Productivity and fun at your fingertips.

Tap, swipe, and type away on the 10-point touchscreen that responds to multiple gestures at once. Write emails, shop online, play games, and more—handle it all with the ease of touch.

High performance.

The powerful Intel® Core™ processor delivers the speed and responsiveness to keep up with your most demanding tasks.

Windows 8.

Get more done and have more fun with the new fast and fluid Windows 8.f2

Incredible graphics. Game on.

Immerse yourself in ultra-realistic games, thanks to NVIDIA discrete graphics.

Get the bigger picture.

Wirelessly send HD content from your PC to your TV or other display for an even larger view without the cumbersome cords.f4

Connected in every corner.

Gain faster, more reliable wireless than ever. Stay connected across your home with fewer dead zones and less interference using the built-in 5G wireless support.f5

Welcome to a whole new world.

Use your computer in ways you never thought possible. Leap MotionT™ technology lets you play, learn and do everything without touching anything.f3


1-year limited hardware warranty and 1 year of software support; 24x7 technical assistance available online or toll-free by phone; Lifetime use of HP Support Assistant


Product image may differ from actual product f3 Internet service required and not Not all features are available in all editions of Windows 8 included. f4 Intel® Wireless Display available on Intel® products only. Requires a separate Wireless Display receiver with a USB port and an HDTV or Monitor with HDMI input. High definition (HD) content is required to view high-definition images f5 Wireless access point and Internet service required and not included. Availability of public wireless access points limited. h2 Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8 functionality. See For full functionality of the share hot key, internet access is required and not included.
