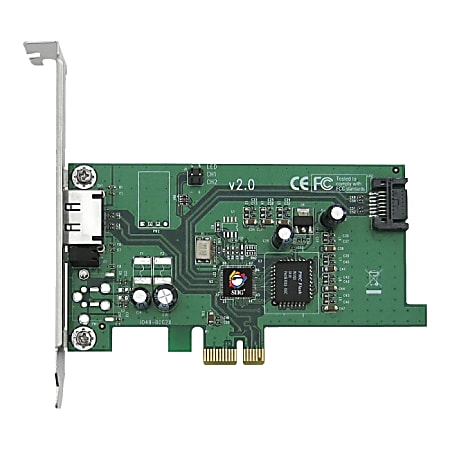

SIIG eSATA II PCIe i/e Adaptor Item # 967445
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
SIIG's eSATA II PCIe i/e controller card is an ideal solution for expanding your SATA storage capacity to your PCIe-equipped desktop computer. It is designed to add two SATA channels (one internal and one external) for connecting up to two additional SATA hard disk drives. The eSATA II PCIe i/e controller card features the latest eSATA connector, delivers data transfer rates of up to 3.0Gb/s, and supports 48-bit LBA for drives with capacity larger than 137GB. Additional features supported by this Serial ATA PCIe host controller include independent command fetch, scatter/gather, command execution, Native Command Queuing (NCQ), Non-zero offsets NCQ, Out-of-order data delivery NCQ, and hard disk hot-plugging ensure fast and reliable data transfers.The eSATA II PCIe i/e controller card is easily installed into any available PCIe slot with different lane width. The dual profile design along with the included spare low profile bracket allows for installing into either standard height or low profile system chassis.The eSATA II PCIe i/e controller card is powered by Silicon Image chipset and is fully compliant with industry standards, including PCI Express Base Specification Revision 1.0a, Serial ATA 1.0a specification with support for full complement of SATA II optional features. It also carries FCC Class B (DoC) & CE regulatory approvals and is RoHS-compliant.The eSATA II PCIe i/e is fully compatible with a wide variety of Windows operating systems.
|Additional Information||Compliant with PCI Express Base Specification Revision 1.0a; Compliant with Serial ATA 1.0a specification with support for complement of SATA II optional features; Compliant with eSATA (external SATA) connector specification; Installs in any available PCI Express slot and supports data transfer rates up to 3.0Gbps (300MBps); Supports 48-bit LBA for drives with capacity larger than 137GB; Integrated Serial ATA Link and PHY logic; Supports two independent Serial ATA channels|
|Certifications & Standards||RoHS; FCC Class B (DoC); CE|
|Drive Supported||Up to 2|
|Drive Type||Serial ATA/300|
|form factor||Plug-in Card|
|Host Interface||PCI Express x1|
|maximum data transfer rate||Up to 2.34 Gbit/s|
|package contents||eSATA II PCIe i/e Adaptor; Spare enhanced low profile bracket; Serial ATA Cable; Serial ATA power cable; Driver CD; User's Manual|
|ports||1 x 7-pin Serial ATA/300 Serial ATA Internal; 1 x 7-pin Serial ATA/300 External SATA External|
|System Requirements||PCI Express-enabled system with an available PCI Express slot; Windows 2000; Windows XP; Windows Server 2003|
|warranty length||limited lifetime|
