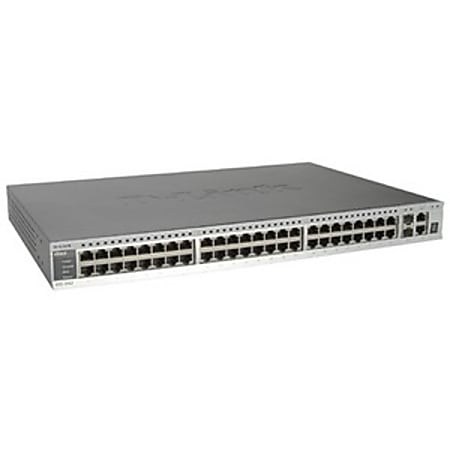

D-Link 3552 Stackable Ethernet Switch Item # 967825
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The xStack DES-3552 xStack switch is a enhanced L2+ access stackable switch designed to connect end-users in a secure SMB (small and medium size business) or enterprise network. This switch provides physical stacking1, static routing1, multicast and enhanced security, making it an ideal access layer solution.The DES-3552 provides 48 Fast Ethernet ports and four Gigabit uplinks. The two combo 10/100/100Base-T/SFP slots on the front panel provide flexible copper or fiber Gigabit connection. The two 10/100/1000Base-T ports on the back panel can be used either as stacking ports with 4 Gbps bidirectional stacking bandwidth, or simple copper Gigabit uplinks. Physical stacking1 capability allows administrators to add up to eight switch units per stack on a scalable expansion basis, an attractive alternative to the expensive chassis-based solution.The DES-3552 switch provides administrators with extensive security features such as 802.1X Guest VLAN, MAC-based Access Control (MAC) and Web-based Access Control (WAC). 802.1X Guest VLAN is a comprehensive end-point security solution for user authentication/authorization and WAC guarantees granular network access control with a user-friendly authentication mechanism. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC address and a port number to enhance user access control. And with DHCP Snooping feature, the switch automatically learns the IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list. This keeps the network secure and auditable. The D-Link Safeguard Engine identifies and prioritizes "CPU interested" packets to prevent malicious traffic from interrupting normal network flows and protects switch operation.The DES-3552 series targets SMB/enterprise customers who require a high level of network security and maximum uptime. It offers Static Route1, 4K VLAN, advanced selective Q-in-Q, as well as delivering progressive QoS capability for mission-critical applications and multicast services. This switch offers superior performance and availability through the latest Spanning Tree protocol, optional redundant power, and Loopback Detection (D-Link's advanced technology for preventing loops without the presence of STP).The DES-3552 switch uses an easy-to-use web interface and configuration wizards to minimize an administrator's learning curve and make deployments easier to plan and implement. Utilizing the latest generation of chipsets, the DES-3552 optimizes power consumption to reduce energy costs and contribute to a greener environment. In addition, its fanless design ensures quiet operation, ideal for deployment in open spaces.
|Additional Information||IEEE 802.1X; WAC; SSH v2; SSL v1, v2, v3; ACL; RADIUS; TACACS|
|Compatible Rack Unit||1U|
|Expansion Slot Type||SFP|
|Input Voltage||110 V AC; 220 V AC; 12 V DC|
|Management||IEEE 802.1p QoS; IEEE 802.1q VLAN; SNMP v1, v2c, v3; RMON v1 (1, 2, 3, 9); RMON v2 (ProbeConfig); Syslog; HTTP; DHCP; CLI; Telnet|
|manufacturer||D-Link Systems, Inc|
|Max Units In A Stack||32|
|Network Technology||10/100/1000Base-T; 10/100Base-TX|
|Number of SFP Slots||2|
|Number of Total Expansion Slots||2|
|Port/Expansion Slot Details||48 x Fast Ethernet Network; 4 x Gigabit Ethernet Uplink; 2 x Gigabit Ethernet Expansion Slot|
|ports||48 10/100/1000 Ethernet (RJ-45); 1 management; 2 stack; 1 uplink|
|power source||Power Supply|
|Redundant Power Supply Supported||Yes|
|Shared SFP Slot||Yes|
|System Requirements||Compatible operating systems: Microsoft|
|Total Number of Network Ports||52|
|warranty length||limited lifetime|
|Show More ▾|
From the Manufacturer|
DescriptionThe DES-3552 xStack 48-port Managed Layer 2 switch is ideal for light to medium voice, video and data applications and features advanced QoS, network management and security.
The xStack DES-3552 by D-Link is a high-performance, managed, stackable Layer 2 switch that provides an ideal solution for workgroups and edge deployments of a network. The D-Link Single IP Management (SIM) allows administrators to cluster up a virtual stack of up to 32 DES-3552 dispersed switches with fewer distance limitations through a single IP address. The clustering environment spans buildings, making it perfect for businesses that require multiple building deployments. The DES-3552 also supports physical stacking of up to 8 units in a stack, so that the entire stack can act as a single logical unit with up to 4Gbps of stacking backplane. The xStack switch also provides comprehensive security for edge access such as Access Control List, DHCP server screening and DoS attack prevention.
The DES-3552 provides a non-blocking switching solution for 10/100 Fast Ethernet connections. The DES-3552 supports 48 10/100Mbps ports, with 4 gigabit 10/100/1000BASE-T ports. Two of these gigabit copper ports are disabled when the two 1000BASE-X SFP are used, also known as dual personality or combo ports. The DES-3552 has a non-blocking bandwidth of 17.6Gbps; the xStack switch has a redundant power option for mission critical applications.
Advanced Network Security
For edge network security, the DES-3552 supports DHCP server screening, client filtering, and IP-MAC-Port Binding to prevent security breaches such as rogue DHCP server, man-in-the-middle attacks and IP spoofing. For clients with XP SP3, Vista, or servers with Microsoft’s Server 2008, DES-3552 works in conjunction with Microsoft’s Network Access Protection (NAP) as part of an ecosystem that enforces compliance with network health policies. The xStack switch will grant network host access only if it complies with IT security policies such as up-to-date anti-virus signatures and operating system patches. This prevents a virus-infested client or server from gaining access and further contamination.
The xStack switch also supports loopback detection, which detects a loop in the network even though the end device causing the loop is without spanning tree. When the switch detects a loop is in the connected node, the DES-3552 shuts down the port with the loop so that the entire system will continue to function normally. This feature can also be VLAN based.
The DES-3552 incorporates advanced mechanisms to detect an attack against the switch’s central processing unit and to take corrective action on the attacking interface. When a Denial of Service attack is waged against the xStack switch, the D-Link Safeguard Engine detects the threat and prevents overload of the central processor thus insuring network integrity and helping to maintain open network bandwidth channels.
In addition, the DES-3552 supports 802.1x authentication, which securly allow users to log onto your network. When used in conjunction with a RADIUS server, 802.1x requires each user workstation attached to the xStack switches to provide a username and password before gaining access to the network. Web-based authentication option is available for those clients who may not have the 802.1x supplicant, while MAC-based authentication can make the authentication process automatically, authenticated by the 802.1x server based on the client’s MAC address. Other security features include access control list, which an administrator can restrict the access of a network through a variety of means including MAC address, IP, UDP/TCP, and even VLAN ID.
IP Clustering Stackable
The xStack DES-3552 provides D-Link Single IP Management Technology (SIM), allowing a set of switches to be managed by a single IP, regardless of geographical locations. Traffic running among units in this virtual stack is through the full-duplex Gigabit interfaces and your usual network wires, doing away with the costly and cumbersome stacking cables. Without any stacking cable, cable distance barrier and physical stacking limitations, your stack can comprise units that are located anywhere on the network, minimizing the impact of any single point of failure. Furthermore, multiple xStack switches can be configured, monitored and maintained from any workstation running a web browser through one unique IP address. The stack is managed as a single object, with all units identified by a single IP address. With Tree View, you can obtain and overview of the members of the stack and a network topology showing the locations of the units and their link information. This provides simple yet powerful web-based management without expensive SNMP network management software. You can add up to 32 switches per stack not limited to any specific D-Link models. With embedded SIM, you can expand your Ethernet stack to include L3 core Gigabit and chassis based switches to accommodate your network growth.
Voice and Video Applications
For today’s businesses, having voice, data and video on the same network is common practice. This challenge is met by the DES-3552, which supports 802.1p with 8 queues. The administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, so that voice data is always clear and jitter free. Video traffic can also be assigned with the same priority. In addition, the switch provides IGMP Snooping or MLD snooping, which allows the forwarding of multicast packets such as streaming audio and video, without increasing network broadcast congestion. By snooping IGMP registration information within a frame, a list of workstations in the multicast group is created. This list then allows the switch to intelligently forward packets to only the appropriate member workstations. In conjunction with the 802.1Q VLANs, Quality of Service and security can be achieved on a network infused with data traffic.
For other multimedia-on-demand applications, such as IPTV deployments, the DES-3552 provides advanced features for easy video streaming management. For example, this xStack family supports per port multicast stream control, which allows a service provider to assign limited multicast addresses per port. This means it can act as a security control that pre-configures channels for each subscriber on a port level to prevent unauthorized multicast join. DES-3552 also supports IGMP multicast VLAN, which eliminates duplicate multicast traffic being sent to clients in different VLANs and thus removing bottlenecks in the uplink port.
Ease of Management
The DES-3552 supports SNMP v1/2/3 so traps can be set on abnormal events and information can be polled to maximize the productivity of the network. Other standard management features are also supported including RMON and IEEE 802.1d/w/s spanning tree, User interface includes intuitive web-based browser graphic interface or industry-standard CLI, either administration traffic can be protected thru SSL or SSH encryptions.
- 17.6Gbps Switching Capacity
- D-Link Single IP Management
- Create a Virtual Stack of up to 32 Units
- Provides Comprehensive Security such as Access Control List, DHCP Server Screening and DoS Attack Prevention
