StarTech.com 1 Port PCI Express IDE Controller Adapter Card Item # 974045
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability

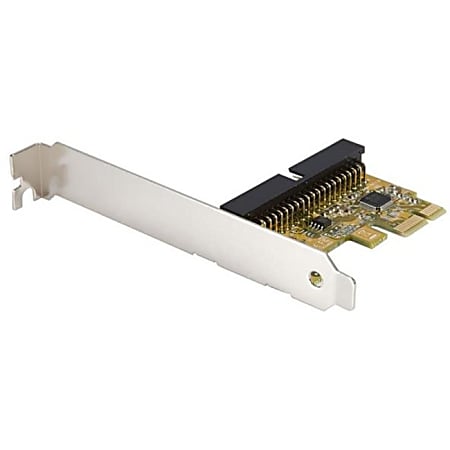

Add a 2-channel IDE port to a computer through a PCI Express slot. This PCI Express IDE Controller Adapter Card provides a cost-effective way to use legacy drives with modern computers, by converting a PCI Express port into an IDE port.Providing data burst transfer rates of up to 133MBps and support for PIO 0/1/2/3/4 and UDMA 33/66/100/133 operating modes, the IDE controller card offers an efficient way to add an IDE channel with support for two IDE drives on the same channel.A complete dual profile solution, the PCI Express IDE controller card provides both standard and low profile brackets for adapting to slimline or small form factor system applications.
|Drive Supported||Up to 2 x Ultra ATA/133 (ATA-7)|
|Drive Type||Ultra ATA/133 (ATA-7)|
|form factor||Plug-in Card|
|Host Interface||PCI Express|
|maximum data transfer rate||Up to 1.04 Gbit/s|
|ports||1 x 44-pin IDC Male Ultra ATA/133 (ATA-7) Ultra ATA|
|Product Name||1-Port PCI Express IDE Controller Adapter Card|
|warranty length||2-year limited|
