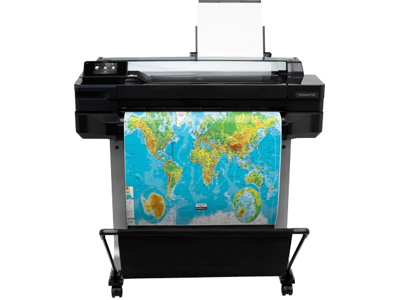

HP Designjet T520 Wireless Color 24" Inkjet ePrinter, CQ890A Item # 986038
Deliver fast, professional results
- Built-in wireless (802.11b/g) technology makes it easy for the whole office to connect or print from your compatible Android or iOS smartphone. Ethernet and USB 2.0 ports allow backup wired connectivity.
- Create wide-format architectural designs, maps, photos and other oversize items.
- Creates color images at speeds up to 275 sq ft/hr.
- Up to 2400 x 1200 optimized dpi resolution for crisp, detailed images.
- Sheet feed, roll feed, input tray, media bin and automatic cutter allow printing on a wide range of media. Accommodates 11" to 24" rolls, 8.3" x 11" to 24" x 74.7" sheets and A4, A3, A2, A1 (A, B, C, D) standard sheets.
- Built-in A3/B+ tray enables flexible printing options.
- Full-color 4.3" touch screen puts simple, intuitive use at your fingertips.
- 1GB of built-in memory help you process complex files at high speeds.
- Included drivers are compatible with most Windows® and Mac OS X machines.
- Backed by the manufacturer's 1-year limited warranty.
- Eco-conscious choice — has one or more meaningful eco attributes or eco-labels.
- ENERGY STAR certified — meets federal guidelines for energy efficiency.
- EPEAT Bronze certified — has multiple eco-attributes. Ranked in three tiers: Bronze, Silver or Gold.
|Auto Paper Cutter||Yes|
|Certifications & Standards||IEC 13660:2001; EU (LVD and EN 60950-1 compliant); Russia (GOST); Class B; EU (EMC/R&TTE Directives)|
|compatible toner/ink||HP 711 (CZ129A); HP 711 CZ130A); HP 711 (CZ131A); HP 711 (CZ132A); HP 711 (CZ133A); HP 711 (CZ134A); HP 711 (CZ135A); HP 711 (CZ136A)|
|connector type||Ethernet; USB 2.0; Wi-Fi (802.11b/g)|
|dimensions||36.7"H x 38.9"W x 20.9"D|
|eco-label/standard||ENERGY STAR; EPEAT Bronze; FEMP; RoHS; WEEE|
|Environmental Certification||ENERGY STAR; WEEE; RoHS; REACH|
|Ethernet Technology||Fast Ethernet|
|form factor||Floor Standing Supported|
|ink/toner cartridge(s) included||starter-capacity cartridge(s)|
|Language Emulation||HP GL/2; HP RTL; HP PCL3/GUI; CALS/G4|
|Max Resolution (B&W)||2400 x 1200 dpi|
|Max Resolution (Color)||2400 x 1200 dpi|
|maximum black and white print resolution||2400 x 1200 dpi|
|maximum color print speed||241.1 ft²/h|
|Maximum Memory||1 GB|
|maximum optimized color print resolution||2400 x 1200 dpi|
|Maximum Print Resolution||2400 x 1200 dpi|
|Maximum Print Width||24 in.|
|maximum sheet size||24" x 74.7"|
|maximum true color print resolution||2400 x 1200 dpi|
|Media Handling||1 x Cut Sheet Feeder 1 Sheet|
|Media Size||D; A1; A3; 8.27" to 24.02" Width - Cut Sheet; 10.98" to 24.02" Width - Roll Paper; 149.93 ft; B+|
|media type||Roll Paper; Cut Sheet; Plain Paper; Coated Paper; Glossy Paper; Bond Paper; Heavyweight Paper; Recycled Paper; Bright White Inkjet Paper; Technical Paper; Tracing Paper; Vellum; Clear Film; Matte Film; Photo Paper; Satin Photo Paper; Semi-gloss Paper; Premium Ink Jet Plain Paper; Polypropylene|
|Mobile Device Printing||Yes|
|network card included (network ready)||yes|
|number of colors||4|
|Operating Power Consumption||35 W|
|operating system compatibility||Windows; Mac OS X|
|package contents||Designjet T520 24-in ePrinter; Printhead; Quick Reference Guide; Setup Poster; Software CD; Power Cord|
|Platform Supported||PC; Mac|
|ports||1 USB 2.0|
|postconsumer recycled content||0%|
|printing application||special formats|
|RAM Installed (Max)||1 GB / 1 GB (max)|
|screen size||4.3 in.|
|Standby Power Consumption||300 mW|
|total recycled content||0%|
|warranty length||1-year limited|
|Wireless Print Technology||HP ePrint|
|Show More ▾|
Product Q & A
Print quality color (best)
Up to 2400 x 1200 optimized dpi
Reliable, accurate, and easy to use—this large-format printer is a good investment for your studio. Grow your business with convenient printing that lets you work and print wherever you are.h1
Take advantage of a large-format printer loaded with features to help you do more in your growing studio. Accurate and rich color quality, exceptional print speeds, and reduced downtime give you the tools you need to succeed.
Experience how easy it is to use the HP Designjet T520 ePrinter. With an intuitive color touchscreen, true print preview, A3/B+ tray, front-load media roll, and Wi-Fi, it has never been simpler to print a wide range of large-format applications.
Print to your HP Designjet T520, using HP Designjet ePrint & Share. This free Web service makes it easy to access and print large-format documents using your tablet, smartphone, laptop or printer touchscreen.h1
Print from your smartphone, tablet, and Internetconnected PC from virtually anywhere.
Individual Inks - Replace only the individual ink cartridge that runs out
Architecture, engineering and GIS; Graphic design
Add this device to your office Ethernet network to share with your workgroup.
- HP DesignJet T520 Printer
- introductory ink cartridges
- printer stand
- quick reference guide
- setup poster
- startup software
- power cord
- Model size
- 24 in
- Print time color image ISO N5 (best, D glossy paper)
- 16.3 min/page
- Print time color image ISO N5 (normal, D glossy paper)
- 9.3 min/page
- Print time color image ISO N5 (draft, D coated paper)
- 1.3 min/page
- Print time color image ISO N5 (normal, D coated paper)
- 4.1 min/page
- Print time color line drawing (draft, D)
- 35 sec/page
- Print speed color line drawing (draft, US D plain paper)
- 70 D prints per hour
- Print speed black line drawing (draft, US D plain paper)
- 70 D prints per hour
- Print speed line drawing (economode, D plain paper)
- 70 D prints per hour
- Memory, standard
- 1 GB
- Hard disk
- Print quality color (best)
- Up to 2400 x 1200 optimized dpi
- Print technology
- HP Thermal Inkjet
- Number of print cartridges
- 4 (cyan, magenta, yellow, black)
- Ink types
- Dye-based (C, M, Y); pigment-based (K)
- Non-printable area (cut-sheet)
- 0.2 x 0.67 x 0.2 x 0.2 in
- Guaranteed minimum line width
- 0.0028 in (ISO/IEC 13660:2001(E))
- Line accuracy
- Maximum optical density (black)
- 8 L* min/2.10 D
- Finished output handling
- Sheet feed; roll feed; input tray; media bin; automatic cutter
- Media types
- Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
- Media sizes standard (sheets, rolls)
- 8.3 to 24-in wide sheets; 11 to 24-in rolls
- Roll maximum output
- 150 ft
- Roll external diameter
- 3.9 in
- Media thickness
- Up to 11.8 mil
- HP ePrint capability
- Connectivity, standard
- Fast Ethernet (100Base-T); Hi-Speed USB 2.0 certified; Wi-Fi
- Print languages
- HP-GL/2, HP-RTL, HP PCL 3 GUI, JPEG, CALS G4
- Compatible operating systems
- Microsoft Windows 7 Ultimate/Professional/Home Premium, Windows Vista Ultimate/Business/Home Premium, Windows XP (32-bit, 64-bit) Professional/Home, Windows Server 2008 (32-bit, 64-bit), Windows Server 2008 R2, Windows Server 2003 (32-bit, 64-bit); Mac OS X v 10.6, v 10.7, v 10.8; Citrix XenApp; Citrix XenServer
- Power consumption
- < 35 watts (printing), < 4.5 watts (sleep), < 0.3 watts (standby)
- Operating temperature range
- 41 to 104ºF
- Minimum dimensions (W x D x H)
- 38.9 x 20.9 x 36.7 in
- 75 lb
- One-year limited hardware warranty
- Software included
- HP DesignJet Utility for Mac and Windows
