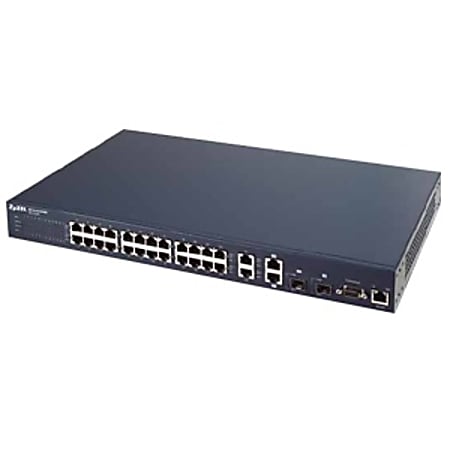

With twenty-four 10/100Mbps RJ-45 ports, two GbE copper ports and two shared SFP / copper GbE interface, ZyXEL ES-3124 boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 12.8Gbps. Its four built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.Featuring "Backup Power System Support" design for even higher availability, ZyXEL ES-3124 adds a built-in DC power receptacle on its rear panel for external Backup Power System connection; and the system can switch to the alternative power source automatically in response to different situations.ZyXEL ES-3124 is loaded with powerful traffic management and QoS features to enhance services offered by telcos. For instance, the ES-3124 provides 8 priority queues per port for different types of traffics, allowing administrators to set policies for classified filtering and rule-based rate limitation. The ES-3124 prioritizes applications with WFQ (Weighted Fair Queuing) scheduling algorithm to allocate more bandwidth to key traffics such as voice transmission, empowering the enterprise to take full advantages of the limited network resources and guarantee the best performance.In addition, the ES-3124 also supports a variety of ways to categorize and prioritize network packets; multilayer information from L2 to L4 can be used to classify packet priorities for alignment with ACL features to construct a platform for Multi-Service Networks.ZyXEL ES-3124 offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanisms comprised of per-port MAC filtering, limited per-port MAC number, port-based 802.1x user and device authentication, as well as TCP/UDP Socket filtering to control the network services accessible to employees. Thanks to these solid mechanisms, the administrators can now construct highly secured corporate networks with time and effort considerably less then before.Users may stack works by assigning two VLAN IDs to each frame header. One is a "backbone" VLAN ID used by the service provider, and the other provides up to 4,096 unique 802.1Q VLAN tags. The ES-3124 support VLAN Stacking, namely Q in Q or Tag in Tag that help Telcos or Carriers to easily establish IP VPN networking architectures.With supports to advanced features like iStacking, SNMP, Web, telnet, RS-232 and RJ-45 MGMT ports, the ES-3124 is very easy to deploy and manage. Better yet, its underlying ZyXEL iStacking technology allows up to 24 clustered switches to be managed by just one IP management, enabling users to benefit from significantly reduced operation and maintenance cost.
|Additional Information||Traffic Management and QoS:IEEE 802.1p with 8 priority queues per port for different types of traffic; WFQ (Weighted Fair Queuing) scheduling for different prioritization of packets; SPQ (Strict Priority Queuing) for highest priority packets to get best service; IEEE 802.1Q tag-based and port-based VLAN; Support GVRP, automatic VLAN member registration; Supports IGMP snooping; Congestion control on all ports; Rate Limiting: Rule-based bandwidth control; Port-based egress traffic shaping|
|Certifications & Standards||FCC; CE; IEEE:IEEE 802.3; IEEE 802.3u; IEEE 802.ab; IEEE 802.3z; IEEE 802.3x; IEEE 802.1d; IEEE 802.1w; IEEE 802.1P; IEEE 802.1Q; IEEE 802.1X; IEEE 802.3ad; IEEE 802.1ad|
|Expansion Slot Type||SFP|
|Input Voltage||110 V AC; 220 V AC|
|Management||Supports ZyXEL iStacking, up to 24 switches can be managed by one IP address; Web-Based Management; Telnet CLI; SNMP v2c; RS-232c Local console; IP management: static IP or DHCP client; RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis; Port mirroring: supports Source/Destination/Both port mirroring|
|manufacturer||ZyXEL Communications Corp.|
|Media Type Supported||Twisted Pair|
|Number of SFP Slots||2|
|Number of Total Expansion Slots||2|
|Port/Expansion Slot Details||24 x Fast Ethernet Network; 2 x Fast Ethernet Expansion Slot|
|ports||26 10/100 Ethernet (RJ-45); 1 management|
|Shared SFP Slot||Yes|
|Total Number of Network Ports||24|
|warranty length||limited lifetime|
|Weight (Approximate)||8.82 lb|
