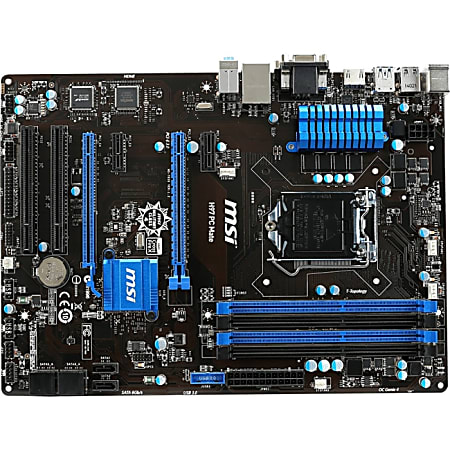

Sign up for MSI H97 PC Mate Desktop Motherboard - Intel H97 Express Chipset - Socket H3 LGA-1150
1 / 1
$109.99/each
Description
MSI motherboard features PCI Express 3.0 slots, perfectly aligned and with enough space for an optimal airflow when using multiple graphics cards. That way, you will never have to worry about an overheating PC, while you are enjoying the best graphics jumping off from your monitor when running an AMD CrossFire gaming setup.Enjoy awesome 4K UHD video playback with MSI 9 series motherboard. MSI motherboard that is equipped with HDMI port support the 4K UHD (2160p ultra-high definition) resolution to provide an unprecedented breathtaking visual experience.
Specifications
Product Specifications
| Item # | 138767 |
| Manufacturer # | H97 PC MATE |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC887 |
| BIOS Features | DMI support, UEFI BIOS, MSI ClickBIOS 4 |
| brand name | MSI |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| Chipset Manufacturer | Intel |
| Chipset Model | H97 Express |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/600 |
| depth | 8.7 in. |
| DVI | Yes |
| Environmental Certification | WEEE; China RoHS |
| form factor | Atx |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Memory | 1.72 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | Audio jack detect technology, Intel Extreme Memory Profile (XMP) support, Intel Smart Response Technology, AMD CrossFireX technology support, Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Small Business Advantage support, MSI Military Class IV, OC Genie 4, MSI Fast Boot, Clear CMOS Button |
| HDMI | Yes |
| Internal Interfaces | 4 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x serial - header; 1 x parallel - header |
| manufacturer | MSI |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Technology | DDR3 SDRAM |
| model | H97 PC Mate |
| Multi GPU Supported | CrossFireX |
| Network Controller | Realtek RTL8111G |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Number of PCI Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 6 |
| Onboard Parallel Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 4 onboard USB 2.0; 2 onboard USB 3.0; 2 PS/2; 4 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA1150 Socket |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
| PS/2 Port | Yes |
| RAID Features | Intel Smart Response Technology |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC887 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 6 |
| Total Number of PCI Express Slots | 4 |
| Total Number of USB Ports | 6 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
$109.99/each
