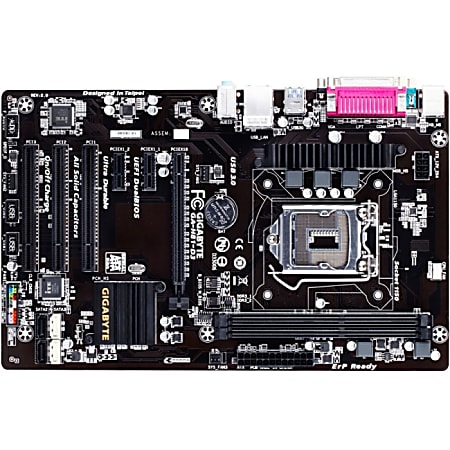

Sign up for Gigabyte GA-H81-D3 Desktop Motherboard - Intel H81 Chipset - Socket H3 LGA-1150
1 / 1
$86.99/each
Description
Gigabyte Ultra Durable 4 Plus debuts on Gigabyte 8 series motherboard, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.Gigabyte motherboard features Gigabyte DualBIOS, an exclusive technology from Gigabyte that protects arguably one of your PC's crucial components, the BIOS. Gigabyte DualBIOS means that your motherboard has both a 'main BIOS' and a 'backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
Specifications
Product Specifications
| Item # | 139188 |
| Manufacturer # | GA-H81-D3 |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC887 |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| BIOS Type | AMI |
| brand name | Gigabyte |
| Bus Clock | 1600 MHz, 1333 MHz |
| Chipset Manufacturer | Intel |
| Chipset Model | H81 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/600; Serial ATA/300 |
| depth | 7.5 in. |
| Environmental Certification | WEEE; China RoHS; ErP Ready |
| form factor | Atx |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Memory | 1 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | DualBIOS, Q-Flash, All-Solid Capacitor motherboard Design, Intel Extreme Memory Profile (XMP) support, On/Off Charge, One Port One Fuse, GIGABYTE 333 Onboard Acceleration, GIGABYTE LAN Optimizer, ESD Protection, Ultra Durable 4 Plus, Clear CMOS Button |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Internal Interfaces | 4 x USB 2.0 - header; 1 x audio - header; 1 x SPDIF out - header |
| manufacturer | GIGABYTE Technology, Inc |
| Max Processors Qty | 1 |
| Max Size | 16 GB |
| Maximum Memory | 16 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Memory Technology | DDR3 SDRAM |
| model | GA-H81-D3 |
| Number of Memory Slots | 2 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Number of PCI Slots | 3 |
| Number of SATA Interfaces | 4 |
| Number of Total Expansion Slots | 6 |
| Onboard Audio Header | Yes |
| Onboard S/PDIF Header | Yes |
| Onboard Video | CPU Dependent Video |
| package contents | Ultra Durable 4 Plus 8 Series GA-H81-D3 (rev. 1.0) Desktop Motherboard; Bundle Software |
| PCI Express Standard | PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 Ethernet (RJ-45); 1 microphone; 4 onboard USB 2.0; 1 parallel; 2 PS/2; 1 serial; 2 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA1150 Socket |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
| Product Series | 8 |
| PS/2 Port | Yes |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC887 |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices; SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 4 |
| Total Number of PCI Express Slots | 3 |
| Total Number of USB Ports | 4 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
$86.99/each
