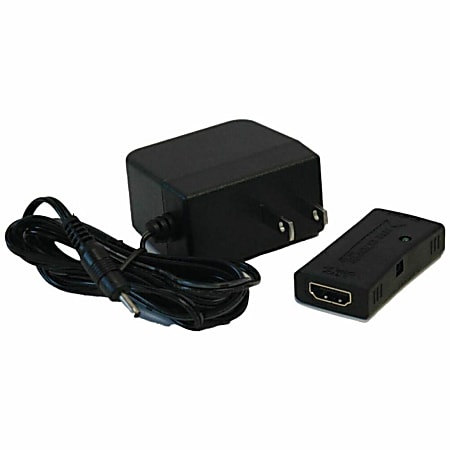

Tripp Lite B122-000 HDMI Signal Extender Item # 149705
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's B122-000 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, as well as a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B122-000, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.Although most installations will not require power, a Micro USB port is provided in the event power is needed. Using a Micro USB cable(such as Tripp Lite's UR05C-Series), connect the Micro USB port to a USB wall charger, the USB port on your monitor, or the USB port on a computer.
|brand name||Tripp Lite|
|Certifications & Standards||TAA|
|warranty length||3-year limited|
|What's Included||B122-000 Home Theater - HDMI Signal Extender; Owner's Manual|
Tripp Lite’s B122-000 HDMI In-Line Signal Booster/Extender helps you overcome standard HDMI distance limitations. At 50 ft., an HD signal starts to degrade. With the B122-000, you can boost and extend the HD audio/video signal up to 150 ft., giving you much more flexibility with your installation, without sacrificing the quality of your content.
This booster’s small size makes it easy to tuck out of sight in your installation. No software or drivers are required, so you only need to connect the B122-000 to your source and you’re ready for your presentation. For distances greater than 75 ft., HDMI cables made with 24 AWG wiring, such as Tripp Lite’s P568-100-HD, are recommended. Most installations will not require external power. In the event power is needed, simply connect a Micro USB cable from the port on the unit to a USB port on a computer, monitor or wall charger.
For peace of mind, the B122-000 comes with a 3-year warranty. It’s also manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
TAA-Compliant for GSA Schedule Purchases
The B122-000 is compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
