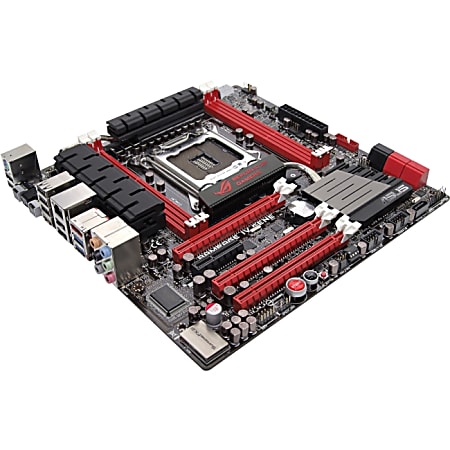

Sign up for ROG Rampage IV GENE Desktop Motherboard - Intel X79 Express Chipset - Socket R LGA-2011
1 / 1
$301.99/each
Description
This motherboard supports the Intel sandy bridge-E processors in the LGA2011 package, with memory and PCI express controllers integrated to support 4-channel (8 DIMM) DDR3 memory and 16 PCI Express 3.0 lanes. This provides great graphics performance. Intel sandy bridge-E processors are among the most powerful and energy efficient CPUs in the world.
Specifications
Product Specifications
| Item # | 167410 |
| Manufacturer # | RAMPAGE IV GENE |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | SupremeFX III |
| BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ASUS O.C. Profile, ACPI 2.0a support, SMBIOS 2.5 support, USB BIOS Flashback, UEFI BIOS |
| BIOS Type | AMI |
| brand name | ROG |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz |
| Buttons & Keys | CMOS Clear; Reset; Power; ROG Connect On/Off; GO |
| Chipset Manufacturer | Intel |
| Chipset Model | X79 Express |
| Compatible Processors | Core i7 |
| controller type | Serial ATA/300; Serial ATA/600 |
| depth | 9.6 in. |
| Environmental Certification | REACH; WEEE |
| eSATA | Yes |
| form factor | Micro ATX |
| Gigabit Ethernet | Yes |
| Internal Interfaces | 4 x USB 2.0; 2 x USB 3.0; 1 x SPDIF out; 1 x audio |
| manufacturer | ASUS COMPUTER INTERNATIONAL |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | UDIMM |
| Memory Speed Supported | 2.40 GHz (O.C.); 2.13 GHz (O.C.); 1.87 GHz; 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Memory Standard | DDR3-2400/PC3-19200 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Technology | DDR3 SDRAM |
| model | Rampage IV GENE |
| Multi GPU Supported | SLI; CrossFireX |
| Number of Memory Slots | 4 |
| Number of PCI Express x16 Slots | 3 |
| Number of PCI Express x4 Slots | 1 |
| Number of SATA Interfaces | 7 |
| Number of Total Expansion Slots | 4 |
| Onboard Audio Header | Yes |
| Onboard LEDs Header | Yes |
| Onboard S/PDIF Header | Yes |
| package contents | Rampage IV GENE Desktop Motherboard; User's Manual; I/O Shield; 2 x SATA 3Gb/s cable(s); 4 x SATA 6Gb/s Cable(s); 1 x SLI Bridge(s); 1 x Q-connector(s) (2 in 1); 1 x ROG Connect Cable(s); 1 x ROG Theme Label(s); 1 x 12 in 1 ROG Cable Label(s); 1 x ROG Door Hanger(s); 1 x Support DVD |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 eSATA; 1 Ethernet (RJ-45); 1 microphone; 4 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 8 USB 2.0; 2 USB 3.0 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Power Supply Supported | EPS12V |
| Processor Socket | LGA2011 Socket |
| Processor Supported | Core i7 |
| Processor Technology | Turbo Boost Technology 2.0; Virtualization Technology; Enhanced SpeedStep Technology; Hyper-Threading Technology |
| PS/2 Port | Yes |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
| Sound Controller Manufacturer | Creative |
| Sound Controller Model | SupremeFX III |
| Storage Interfaces | SATA-300 -connectors: 3 x 7pin SATA - 3 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices; SATA-300 -connectors: 1 x 7pin external SATA - 1 devices |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 6 |
| Total Number of PCI Express Slots | 4 |
| Total Number of USB Ports | 10 |
| Total Processor Supported | 1 |
$301.99/each
