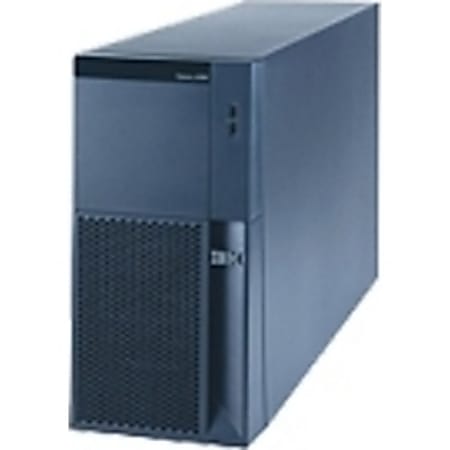

Sign up for IBM System x3500 7977 - Dual-Core Xeon 5160 3 GHz
1 / 1
$2812.95/each
Description
The IBM System x3500 delivers unprecedented performance and reliability for demanding distributed environments that rely on 24x7 availability of mission-critical applications. The x3500 offers leading-edge capacity and high-speed I/O scalability. A long-life platform with 24-month availability, the x3500 minimizes deployment and support concerns. The x3500 provides the ultimate balance of high performance, high availability and vast internal storage in a stable-life, distributed platform.
Specifications
Product Specifications
| Item # | 190805 |
| Manufacturer # | 190805 |
| manufacturer | IBM/Lenovo |
| Type | Server |
| recommended use | Small business, corporate business |
| Product Form Factor | tower - 5u |
| Built-in Devices | LED panel |
| server scalability | 2-way |
| front accessible bays qty | 3 |
| hot-swap bays qty | 8 |
| depth | 27.6 in |
| color | Stealth Black |
| Localization | English / United States |
| processor type | intel dual-core xeon 5160 / 3 ghz |
| 64-bit Computing | Yes |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| upgradability | upgradable |
| Processor Main Features | intel extended memory 64 technology, intel execute disable bit, enhanced intel speedstep technology, intel virtualization technology |
| cache memory type | l2 cache |
| Cache Per Processor | 4 mb ( 2 x 2 mb ) |
| Chipset Type | intel 5000p |
| data bus speed | 1333 mhz |
| memory | 4 MB |
| memory type | ddr2 sdram - ecc chipkill |
| memory speed | 667 MHz |
| maximum memory upgrade | pc2-5300 |
| form factor | DIMM 240-pin |
| Configuration Features | 2 x 512 MB |
| upgrade rule | 2 modules at a time |
| storage controller type | 1 x raid - integrated - pci express |
| Storage Controller Name | serveraid-8k |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| storage controller (2nd) type | 1 x ide - integrated |
| Controller Interface Type | serial ata-150 / sas |
| Channel Qty | 2 |
| hard drive capacity | none. |
| optical storage type | dvd-rom - ide |
| read speed | 16x (dvd) |
| monitor type | None. |
| graphics controller type | pci - integrated |
| graphics processor / vendor | ati es1000 |
| Video Memory | ddr sdram |
| networking | network adapter - integrated |
| Ethernet Ports | 2 x Gigabit Ethernet |
| ethernet controller(s) | broadcom bcm5721 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | ipmi 2.0 |
| Remote Management Controller | Intel Baseboard Management Controller (BMC) |
| expansion bays total (free) | 3 ( 2 ) x front accessible - 5.25" x 1/2h ª 8 ( 8 ) x hot-swap - 3.5" x 1/3h |
| expansion slots total (free) | 2 ( 1 ) x processor - lga771 socket ª 12 ( 10 ) x memory - dimm 240-pin ª 1 ( 1 ) x pci express x8 - half-length ª 2 ( 2 ) x pci express x8 - full-length, full-height ª 2 ( 2 ) x pci-x / 133 mhz - full-length, full-height ª 1 ( 1 ) x pci - half-length |
| data input method | 2 x network - ethernet 10base-t/100base-tx/1000base-t - rj-45 ª 4 x hi-speed usb - 4 pin usb type a ( 2 in front ) ª 1 x keyboard - generic - 6 pin mini-din (ps/2 style) ª 1 x mouse - generic - 6 pin mini-din (ps/2 style) ª 1 x display / video - vga - 15 |
| digital camera use | wake on lan (wol), acpi support |
| Compliant Standards | acpi 2.0, ce, fcc class a certified, tuv gs, iso 9241-3, cispr 22 class a, en 60950, iec950, en55024, en55022 class a, cb, fcc part 15, iec 60950-1 |
| image technology | power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| wattage | ac 120/230 v ( 50/60 hz ) |
| Power Provided | 835 watt |
| Software | drivers & utilities, ibm serverguide, ibm director |
| Warranty | 3 years warranty |
| Service & Support Details | limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Min Operating Temperature | 50 ¦f |
| Max Operating Temperature | 95 ¦f |
| Humidity Range Operating | 8 - 80% |
$2812.95/each
