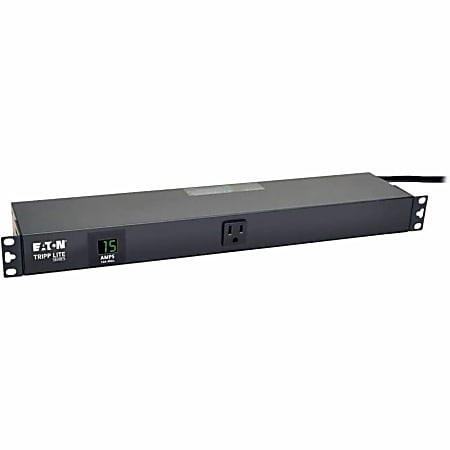

Tripp Lite PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM Item # 193917
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
|brand name||Tripp Lite|
|Certifications & Standards||Tested to UL60950-1 (USA); CAN/CSA C22.2 No. 60950-1-03 (Canada)|
|cord length||15 ft|
|Frequency Provided||50/60 Hz|
|Input Connectors||1 x power NEMA 5-15P|
|Input Current||15 A|
|Input Receptacles||NEMA 5-15P|
|Input Voltage||120 V AC|
|Output Receptacles||13 x NEMA 5-15R|
|Output Voltage||120 V AC|
|Placement||Wall; Under-counter; Rack|
|Power Rating (Watt)||1500 W|
|protection type||Overload Protection|
|warranty length||2-year limited|
|Weight (Approximate)||4.60 lb|
|What's Included||PDUMH15-RA Metered Rackmount PDU; Mounting Accessories; Owner'sManual with Warranty Information|
|Show More ▾|
Built-in Digital Meter Provides Visual Monitoring and Right-Angle Outlets Keep Cords Organized
The PDUMH15-RA provides reliable 120V power service via 13 NEMA 5-15R right-angle outlets (1 front-facing, 12 rear-facing). It has a rugged all-metal housing and a 15 ft. power cord with NEMA 5-15P plug. This PDU also has a 15A circuit breaker, a TVSS rear grounding lug, and a switchless design to prevent accidental shutoff. Load capacity is 1.4kW.
A two-digit load meter provides the real-time load level (in amps) of connected equipment. The meter helps ensure that the PDU is used at maximum capacity without danger of overload.
Versatile Mounting Options
The PDUMH15-RA is easy to integrate with a wide range of data center and network applications. It has removable mounting flanges to support 1U (horizontal) and 0U (vertical) installation in 2- and 4-post racks. It’s also suitable for wall-mounting and under-counter mounting. The housing is reversible to face the front or back of the rack. For 0U (vertical) rack toolless button-mount installation, add Tripp Lite’s PDUSIDEBRKT bracket accessory.
- Reliable power distribution in rack enclosures and network closets
- Digital meter provides real-time visual monitoring of load level
- Rugged all-metal housing with 13 NEMA 5-15R right-angle outlets (1 front-facing, 12 rear-facing)
- This PDU has right-angle outlets. When the PDU is mounted horizontally, the outlets have the ground pin at the bottom, which keeps equipment cords from overlapping and minimizes cable clutter
- 15 ft. cord with NEMA 5-15P plug
- Removable mounting flanges support installation in 2- and 4-post racks; also supports wall-mount and under-counter installation
- 2-year warranty
- Single-Phase Metered Rackmount PDU
- Removable Mounting Flanges
- Owner’s Manual
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosure cabinets, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
