Tripp Lite 100Gb/120Gb to 40Gb Breakout Cassette 2 24-Fiber to 6 12-Fiber Item # 213735
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's N484-2M24-6M12 is a High Density 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber MTP/MPO connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 100/120 GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE-802.3ae maximum channel loss spec of <25db. Effectively trunks 48-fibers between IDF's and MDF's with (x2) 24-Fiber MTP/MPO cables, breaking out to (x6) 12-fiber MTP/MPO connections. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.NOTE: Each 24 Fiber cable breaks out to three, 12-fiber MTP ports, with only 8 of the 12 pins populated ( 4 inner pins unused ). QSFP+ and QSFP28 support.
|brand name||Tripp Lite|
|dimensions||1 2/5" x 4 2/5" x 3 4/5"|
|ports||8 MT; 8 RJ-11|
|Total Number of Ports||8|
|warranty length||limited lifetime|
|Weight (Approximate)||11.20 oz|
|What's Included||N484-2M24-6M12 Network Patch Panel; Quick Start Guide|

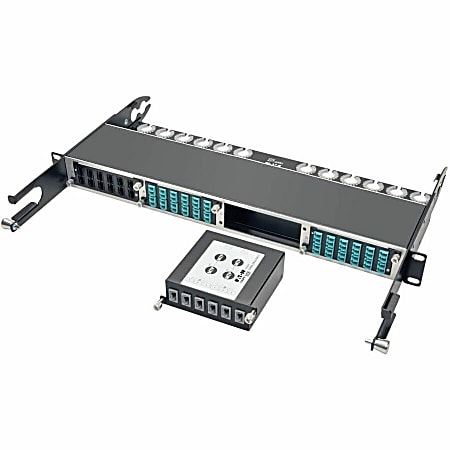

High-Density Fiber Cassette is a Simple Solution for 100/120Gb to 40Gb Connections (MTP/MPO)
Fiber Breakout Cassette offers a simple, elegant solution for connecting a
100/120Gb network to 40Gb devices. The N484-2M24-6M12 breaks out two 24-Fiber MTP/MPO cables to six
12-fiber MTP/MPO connections. It’s designed to fit Tripp Lite’s N484-00U
Cassette Sleeve and N484-01U Enclosure Panel (sold separately). The modular
design of the N484-2M24-6M12 offers the
density and flexibility to modify your installation as your needs change. The
cassette housing is heavy-duty steel for durability and long life.
The N484-2M24-6M12 cassette is easy to install into a Tripp Lite N484-00U sleeve or N484-01U 1U enclosure panel. Insert the cassette and tighten the screw tabs to secure it to the sleeve or panel. Loosen the screw tabs for removal. No tools are required. Once the cassette is installed, you can connect your cables. One N484-2M24-6M12 cassette fits in the N484-00U sleeve and up to four cassettes fit in the N484-01U 1U panel. The connectors are factory terminated to reduce time and labor during field installations.
Meets or Exceeds the Latest Standards
The N484-2M24-6M12 complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements. It has a max insertion loss of 0.35 dB, which is far below the IEEE 802.3ae maximum channel loss spec of <25 dB.
- High-density fiber cassette for use with Tripp Lite’s N484-00U Cassette Sleeve or N484-01U Enclosure Panel
- 100/120Gb to 40Gb breakout cassette with (x2) 24-fiber MTP/MPO (Type A) connections to (x6) 12-fiber MTP/MPO (Type B) connections
- No tools are required for installation and removal; just tighten and loosen the screw tabs
- Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
- Factory terminated connectors reduce the time and labor required during field installations
- Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
- Max insertion loss of 0.35 dB is far below the IEEE 802.3ae maximum channel loss spec of <25 dB
- Heavy-duty steel housing with dust caps to protect unused ports
- Lifetime warranty
What’s in the Box
- N484-2M24-6M12 100/120Gb to 40Gb Breakout Cassette – (x2) 24-Fiber MTP/MPO to (x6) 12-Fiber MTP/MPO
- Quick Start Guide
