Tripp Lite 12U Wall Mount Open Frame Rack Cabinet Wallmount Heavy Duty Item # 278477
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability

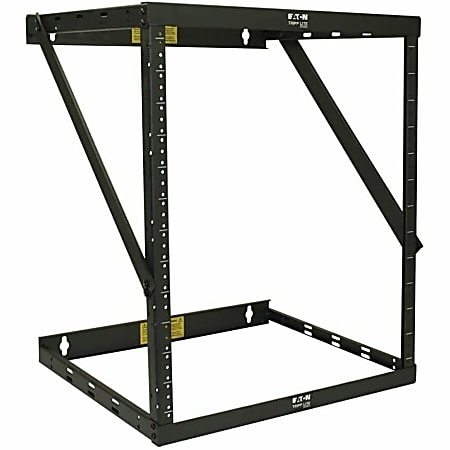

The SRWO12UHD SmartRack 12U Heavy-Duty Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame Rack stores and organizes EIA-standard 19-inch rack equipment compatible with 2-post mounting in network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required. Constructed from heavy-duty steel with a durable black powder-coated finish, the rack has a maximum load capacity of 200 pounds. The open frame design allows unrestricted access for installing, configuring and servicing equipment and cabling. The rack is simple to assemble and mount to the wall. Threaded 12-24 mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails accommodate equipment up to 18 inches deep, such as network switches and patch panels. Assembly and equipment-mounting hardware is included.
|brand name||Tripp Lite|
|Certifications & Standards||EIA-310-D; IEC 60297-3-100; DIN 41494|
|color||black powder coat|
|form factor||Wall Mountable|
|Rack Depth||18 in.|
|Rack Type||Open frame|
|Rack Width||19 in.|
|Static/Stationary Weight Capacity||550 lb|
|warranty length||5-year limited|
|Weight (Approximate)||14.30 lb|
|What's Included||12U Wall-Mount Open Frame Rack; 1 x 3mm L-Shaped Hex Key; 2 x Top/Bottom Panel Frames; 2 x Vertical Mounting Rails; 8 x M5 Button Head Cap Screws; 24 x #12-24 Equipment Mounting Screws|
|Show More ▾|
12U Heavy-Duty Wall-Mount Open Frame Rack Supports 150 lbs. of Network Equipment
|Are you running out of IT floor space? Do you need to accommodate rackmount equipment at a remote location or branch office? Tripp Lite’s SRWO12UHD Wall-Mount 2-Post Open Frame Rack is the ideal storage solution for high-density rackmount equipment in any environment where floor space is limited. With its sturdy wall-mount brackets and heavy-duty steel frame, the SRWO12UHD can accommodate up to 150 lbs. of equipment in 12U of rack space—off the floor! The SRWO12UHD assembles and installs quickly, and comes with a 5-year warranty.|
Simple Equipment Installation and Access
The SRWO12UHD’s open frame design facilitates quick installation of equipment and provides convenient service access to equipment and cabling.
- Stores 12U of EIA-standard 19-in rackmount equipment; max equipment mounting depth of 18 inches
- Maximum load capacity of 200 lb.
- Allows easy access to equipment and cabling
- Assembly and equipment-mounting hardware included
- 5-year warranty
What’s in the Box
- (1) 3mm L-Shaped Hex Key
- (2) Top/Bottom Panel Frames
- (2) Vertical Mounting Rails
- (8) M5 Button Head Cap Screws
- (24) #12-24 Equipment Mounting Screws
