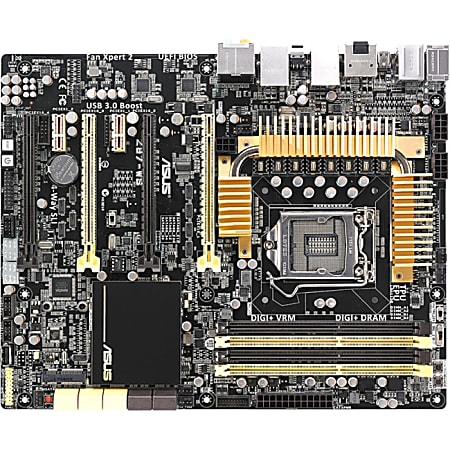

Asus Z87-WS Workstation Motherboard - Intel Z87 Express Chipset - Socket H3 LGA-1150 - Retail Pack
1 / 1
$306.99/each
Description
The Z87-WS can carry up to four dual-slot graphics. It supports 4-way NVIDIA Geforce SLI and AMD CrossFireX, making it an excellent choice for graphics professionals who depend on powerful graphics in areas such as design and modeling, medical research, plus processing-intensive simulation and rendering applications. In addition to graphics cards, extensive Z87-WS expandability offers ample room for RAID cards, PCI Express-based solid state storage drives, video capture cards, and other components.
Specifications
Product Specifications
Item # | 390898 |
Manufacturer # | Z87 WS |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC1150 |
BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS EZ Flash 2, ASUS O.C. Profile, USB BIOS Flashback, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
BIOS Type | AMI |
brand name | ASUS |
Bus Clock | 1800 MHz, 1600 MHz, 1333 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2500 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 1866 MHz (O.C.) |
Buttons & Keys | BIOS Flashback; DirectKey; MemOK; TPU; EPU; Dr. Power Switch |
Chipset Manufacturer | Intel |
Chipset Model | Z87 Express |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series |
controller type | Serial ATA/600 |
depth | 9.6 in. |
DisplayPort | Yes |
Environmental Certification | WEEE; RoHS; ErP Ready |
eSATA | Yes |
form factor | Atx |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 1 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
HDMI | Yes |
Internal Interfaces | 4 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x USB 2.0 - Type A; 1 x audio - header; 1 x serial - header; 1 x SPDIF out - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.50 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 1.87 GHz (O.C.); 1.80 GHz; 1.60 GHz; 1.33 GHz |
Memory Standard | DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2500/PC3-20000 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1800/PC3-14400; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
Memory Technology | DDR3 SDRAM |
model | Z87-WS |
Multi GPU Supported | CrossFireX; SLI |
Network Controller | Intel I210 |
Number of Memory Slots | 4 |
Number of mSATA Interfaces | 1 |
Number of PCI Express x1 Slots | 2 |
Number of PCI Express x16 Slots | 4 |
Number of SATA Interfaces | 10 |
Number of Total Expansion Slots | 6 |
Onboard Audio Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
package contents | Z87-WS Workstation Motherboard; Support Disc; User's Manual; Accessory Guide; ASUS Q-Shield; 1 x COM port cable(s); 10 x SATA 6Gb/s cable(s); 1 x 3-Way SLI Bridge(s); 1 x 4-Way SLI Bridge(s); 1 x SLI Bridge(s); 1 x 2-port USB2.0 + 1394 bracket(s) |
Package Type | Retail |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 2 DisplayPort out; 2 eSATA; 2 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 1 onboard FireWire 400; 5 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 4 USB 2.0; 4 USB 3.0 |
Power Connectors | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
Power Supply Supported | EATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
Processor Technology | Turbo Boost Technology 2.0 |
PS/2 Port | Yes |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL) |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC1150 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin SATA, 1 x mSATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin external SATA - 2 devices; Marvell 88SE9230: SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard FireWire/i.LINK Ports | 1 |
Total Number of Onboard USB Ports | 7 |
Total Number of PCI Express Slots | 6 |
Total Number of USB Ports | 8 |
Total Processor Supported | 1 |
Windows 8 Compatible | This product has been tested to meet all of the technical requirements to be Windows 8 Compatible. |
