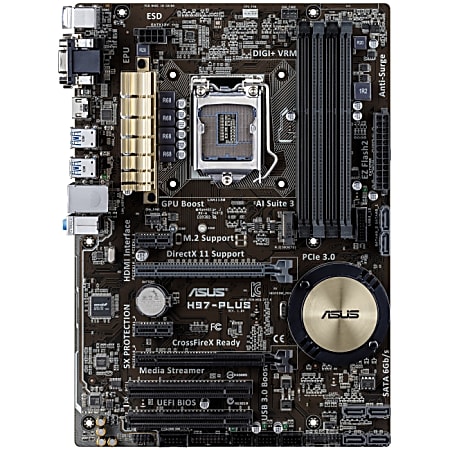

Asus H97-PLUS Desktop Motherboard - Intel H97 Express Chipset - Socket H3 LGA-1150
1 / 1
$109.99/each
Description
Voltage regulator modules (VRMs) are among the most essential motherboard components. A good VRM intelligently delivers CPU power based on actual needs at any given time. ASUS was first with digital power design featuring faster sensing and response to deliver precise CPU power on demand. This great accuracy reduces energy waste and of course improves system stability thanks to more consistent delivery.ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a lifespan that's three times (3x) longer compared to ordinary panels.
Specifications
Product Specifications
Item # | 4034241 |
Manufacturer # | H97-PLUS |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC887 |
BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, UEFI BIOS, DMI 2.7 support, ACPI 5.0 support, SMBIOS 2.8 support |
BIOS Type | AMI |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz |
Chipset Manufacturer | Intel |
Chipset Model | H97 Express |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600 |
depth | 8.6 in. |
DVI | Yes |
Environmental Certification | RoHS; WEEE |
form factor | Atx |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 512 MB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
HDMI | Yes |
Internal Interfaces | 6 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x SPDIF out - header; 1 x audio - header; 1 x serial - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 1.60 GHz |
Memory Standard | DDR3-1600/PC3-12800 |
Memory Technology | DDR3 SDRAM |
model | H97-PLUS |
Multi GPU Supported | CrossFireX |
Network Controller | Realtek RTL8111GR |
Number of M.2 Interfaces | 1 |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 2 |
Number of PCI Express x16 Slots | 2 |
Number of PCI Slots | 2 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 6 |
Onboard Audio Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
package contents | H97-PLUS Desktop Motherboard; User's Manual; I/O Shield; 2 x SATA 6Gb/s Cable(s); Support Disc |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 6 onboard USB 2.0; 2 onboard USB 3.0; 2 PS/2; 2 USB 2.0; 4 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
Processor Technology | Turbo Boost Technology 2.0; Quick Sync Video Technology |
PS/2 Port | Yes |
RAID Features | Intel Smart Response Technology |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC887 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 8 |
Total Number of PCI Express Slots | 4 |
Total Number of USB Ports | 6 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
