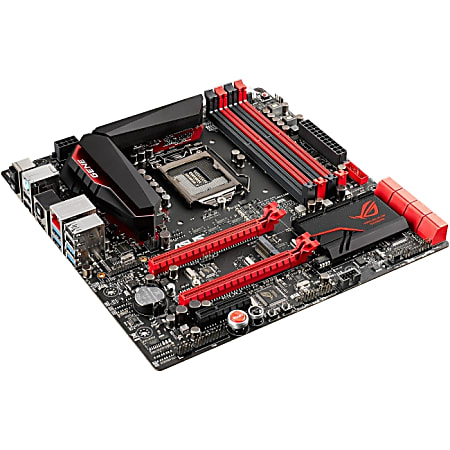

Asus MAXIMUS VII GENE Desktop Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150
1 / 1
$257.99/each
Description
Maximus VII Gene features the very latest Intel Ethernet for faster, smoother gaming - always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for your game and your gameplay!Designed for first-person shooters (FPS), Sonic Radar II displays a stealthy overlay that shows what opponents and teammates are up to. See the precise direction and origin of in-game sounds such as gunshots, footsteps and call-outs, and practice your enemy-pinpointing skills - and exclusive audio enhancement further improves in-game sound for superb hearing awareness.
Specifications
Product Specifications
Item # | 478431 |
Manufacturer # | MAXIMUS VII GENE |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | SupremeFX Impact II |
BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS EZ Flash 2, ASUS O.C. Profile, USB BIOS Flashback, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0a support |
BIOS Type | AMI |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 2250 MHz (O.C.), 3300 MHz (O.C.) |
Buttons & Keys | Power; Reset; MemOK; CMOS Clear |
Chipset Manufacturer | Intel |
Chipset Model | Z97 Express |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600 |
depth | 9.6 in. |
Environmental Certification | RoHS; WEEE |
form factor | Micro ATX |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Memory Technology | DDR3 SDRAM |
HDMI | Yes |
Integrated Processor Manufacturer | No |
Internal Interfaces | 5 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 3.20 GHz (O.C.); 3.10 GHz (O.C.); 3 GHz (O.C.); 2.93 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.50 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 1.87 GHz (O.C.); 1.80 GHz (O.C.); 1.60 GHz; 1.33 GHz |
Memory Standard | DDR3-3200/PC3-25600 (O.C.); DDR3-3100/PC3-24800 (O.C.); DDR3-3000/PC3-24000 (O.C.); DDR3-2933/PC3-23400 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2500/PC3-20000 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1800/PC3-14400 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
Memory Technology | DDR3 SDRAM |
model | MAXIMUS VII GENE |
Multi GPU Supported | CrossFireX; SLI |
Network Controller | Intel I218V |
Number of M.2 Interfaces | 1 |
Number of Memory Slots | 4 |
Number of Mini PCI Express Slots | 1 |
Number of PCI Express x16 Slots | 2 |
Number of PCI Express x4 Slots | 1 |
Number of SATA Interfaces | 8 |
Number of Total Expansion Slots | 4 |
Onboard Audio Header | Yes |
Onboard Video | CPU Dependent Video |
package contents | MAXIMUS VII GENE Desktop Motherboard; User's Manual; I/O Shield; 6 x SATA 6Gb/s cable(s); 1 x SLI Bridge(s); 1 x Q-connector(s) (2 in 1); 1 x 12 in 1 ROG Cable Label(s); 1 x ROG Door Hanger(s); Support Disc |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 5 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 4 USB 2.0; 4 USB 3.0 |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
Processor Technology | Turbo Boost Technology 2.0; Quick Sync Video Technology |
PS/2 Port | Yes |
RAID Features | Intel Smart Response Technology |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL) |
Sound Controller Model | SupremeFX Impact II |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5; ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 7 |
Total Number of PCI Express Slots | 3 |
Total Number of USB Ports | 8 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
$257.99/each
