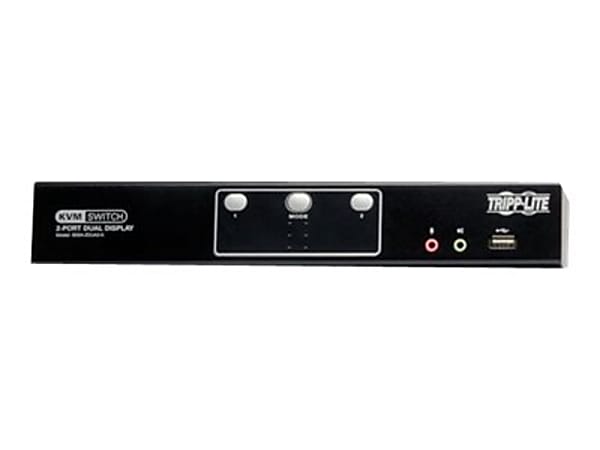

Tripp Lite 2-Port Dual Monitor DVI KVM Switch with Audio and USB 2.0 Hub, Cables included Item # 491572
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's B004-2DUA2-K 2-Port Dual Monitor KVM switch allows for the control of two computers with Dual Head DVI video cards via a single set of keyboard, mouse, and dual displays. Built-in USB 2.0 and 3.5 mm. Mini Stereo ports provide added functionality, allowing you to share USB peripherals (CAC Card Reader, flash drive, web cam, powered USB hub, etc.), Speakers (2.1 stereo sound), and Microphone amongst the connected computers. Switch between the connected computers using the front panel pushbuttons, keyboard hotkey commands, or a function that allows for switching via the scroll wheel on your mouse. Switch the KVM, USB, and Audio functionality all at the same time, or separately. KVM control can be fixed on one computer, while the USB 2.0 hub and/or Audio functionality is fixed on another. And set-up is quick and simple, with no software to install, and KVM cables included, so you're ready to go right out of the box.The B004-2DUA2-K is the perfect solution for CAD/CAM and Graphic designers; Medical, Educational and Financial institutions; and High-End gaming. Its DVI-I connectors support both Dual Link digital resolutions up to 2560 x 1600, and analog resolutions up to 2048 x 1536. Connect a VGA monitor or computer port by using a P556-Series DVI to VGA adapter cable instead of the included DVI-D cables. Regardless of whether you use DVI or VGA, the KVM stores the EDID (Extended Display Identification Data) of the connected monitors, which ensures optimal display resolution and prevents any delay or change in video resolution when switching between or booting computers. This full time DDC support provides the necessary EDID information for optimal performance on Windows 7 and other operating systems. Additionally, if you have the need for more than two monitors, the KVM's Quad-View Mode allows for computers with three- or four-head video cards to share KVM, audio and USB peripherals by connecting two Dual Display/Monitor KVM switches together. All major operating systems are supported; Windows, Mac, Linux and Sun. Compliant with CE, FCC, RoHS, REACH.
|brand name||Tripp Lite|
|Certifications & Standards||CE; FCC; TAA|
|Input Voltage||110 V AC; 220 V AC|
|Maximum Video Resolution||2560 x 1600|
|Number of Computers Supported||2|
|Number of Local Users Supported||1|
|Platform Supported||Sun; Linux; PC; Mac|
|ports||6 DVI; 1 Ethernet (RJ-45); 5 USB|
|warranty length||3-year limited|
|Weight (Approximate)||1.23 lb|
|What's Included||2-Port Dual Monitor DVI KVM Switch with Audio and USB 2.0 Hub; 2 x 6 ft. DVI-D Dual Link / USB KVM Cable Kits; 2 x 6 ft. DVI-D Dual Link Cables; External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5.3V, 2.4A); Owner's Manual|
|Show More ▾|
2-Port Dual Monitor DVI KVM Switch with Audio and USB 2.0 Hub
Quick and Simple SetupThe B004-2DUA2-K is easy to configure for your system. Connect your computers and audio components to the switch using the included USB KVM cable kits and audio cable kits, plug in the power adapter and you’re ready to play!
Computer Selection Made Easy
The B004-2DUA2-K lets you control two computers from a single keyboard/mouse/dual display setup. Keyboard hot keys and front-mounted port selection buttons give you two convenient ways to select a computer. You’ll get optimal display resolution for each monitor without delay, since the B004-2DUA2-K stores the EDID (Extended Display Identification Data) of the connected monitors. In Auto Scan mode, the B004-2DUA2-K automatically cycles between the ports at regular 5-second intervals, allowing you to monitor computer activity with no need to manually switch between computers.
Independent Audio SwitchingThe B004-2DUA2-K features independent audio switching that allows you to listen to audio from one computer even when switched to the other computer, providing an uninterrupted listening experience.
Sharing of USB Peripherals
Two USB 2.0 ports on the B004-2DUA2-K allow connected computers to share USB peripherals, such as flash drives, printers and scanners. There are also two mini stereo ports for connecting speakers and a microphone.
Hot-Plugging CapabilityAdd or remove computers and devices without powering down the KVM switch. This handy feature enables you to swap out a computer without disrupting the overall system.
Universal CompatibilityThe B004-2DUA2-K is compatible with all major operating systems and the scrolling wheel on most mice. It incorporates DVI technology to reduce undesirable video distortion from conventional analog/digital conversion. Both DVI single-link digital video (up to 2560 x 1600) and DVI analog video (up to 2048 x 1536) are supported. To connect a VGA monitor or computer port, use a Tripp Lite P556-Series DVI to VGA adapter cable instead of the included DVI-D cables.
TAA-Compliant for GSA Schedule PurchasesThe B004-2DUA2-K is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Three-Year Warranty and Environmentally Responsible Design
The B004-2DUA2-K comes backed by a three-year warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Viewing dual displays in small office environments
- Industries that require high-resolution dual displays, such as graphic design, CAD/CAM design and desktop publishing
- Medical, educational and financial institutions that require multiple displays
- High-end gaming
What’s in the Box
- 2-Port Dual Monitor DVI KVM Switch with Audio and USB 2.0 Hub
- 2 6-ft. DVI-D Dual Link/USB KVM Cable Kits
- 2 6-ft. DVI-D Dual Link Cables
- External Power Supply
- Owner’s Manual
