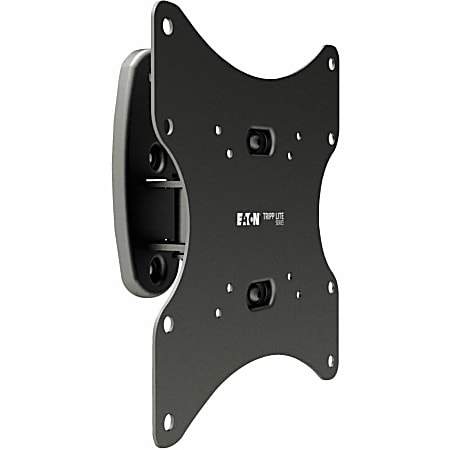

Tripp Lite Display TV LCD Wall Monitor Mount Swivel/Tilt 17" to 42" TVs / Monitors / Flat-Screens Item # 517848
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The VESA-compliant DWM1742MN swivel/tilt wall mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 17 to 42 inches.Adjust the display angle to fit your environment and comfort level. An 80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.Durable all-metal frame with scratch-resistant powder-coated finish supports up to 52 kg (115 lbs.). Comes fully assembled for quick mounting to the wall with included hardware. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm.
|Assembly Description||Tools Needed & Not Included|
|brand name||Tripp Lite|
|color||black powder coat|
|Device Supported||Flat Panel Display|
|Maximum Load Capacity||115 lb|
|maximum screen size supported||42"|
|Minimum Screen Size Supported||17"|
|Number of Displays Supported||1|
|VESA Mount Compatible||Yes|
|VESA Mount Standard||75 x 75; 100 x 100; 200 x 100; 200 x 200|
|warranty length||5-year limited|
|Weight (Approximate)||3.63 lb|
|What's Included||Full-Motion Wall Mount for 17" to 42" Flat-Screen Displays; Mounting Hardware; Owner's Manual|
|Show More ▾|
Display TV LCD Wall Mount Swivel 17" - 42" Flat Screen / Panel
Ideal For 17”-42” Displays – This Full-Motion Wall Mount is Simple to Install & Guaranteed to Last!Tripp Lite’s VESA-compliant DWM1742MN Full-Motion Flat-Screen Wall Mount packs a lot of functionality into a compact design. It offers full-motion articulation and can free up valuable space in your workstation by allowing you to effortlessly reposition your display at any time, even after installation. Its low-profile frame features convenient one-touch display adjustment with tilt and swivel capabilities and fits most 17- to 42-inch flat-panel displays. Its durable, all-metal construction with scratch-resistant, powder-coat finish withstands the stress of repeated use. It comes preassembled for quick and easy installation and supports weights of up to 115 lbs. For peace of mind, the DWM1742MN comes backed by a 5-year warranty and green, RoHS-compliant design.
Optimized ViewingThe DWM1742MN easily adjusts to optimize viewing angles and makes the most of your display environment. It upgrades existing displays with a -15° to +15° tilt range, 80° swivel capability and -4 - +4 screen level adjustment to minimize glare, provide comfortable viewing angles and reduce fatigue. It is ideal for airport informational displays, classrooms, hotel conference rooms, point-of-sale displays, production studios, security stations and any display application that requires repeated repositioning.
The DWM1742MN’s durable, all-metal frame supports displays weighing up to 115 lbs. and withstands the stress of repeated adjustments and use in common areas. Its scratch-resistant powder-coat finish tolerates frequent handling.
VESA ComplianceVESA (Video Electronics Standards Association) is a professional organization whose purpose is to promote uniformity in the video electronics industry by developing industry-wide interface standards for a wide variety of products, including flat-panel TVs and monitors. Most manufacturers of display mount products comply with these standards by adhering to a series of universal mounting hole patterns on the backs of the products. The DWM1742MN is guaranteed to work with VESA-compliant displays with hole patterns of 75 mm x 75 mm, 100 mm x 100 mm, 200 mm x 100 mm and 200 mm x 200 mm. In order to ensure that the DWM1742MN is right for you, measure the vertical and horizontal distances between the holes on the back of your display or refer to your display’s owner’s manual.
Easy InstallationThe DWM1742MN comes with all the hardware you need for installation. Included fasteners enable installation on walls with timber or masonry construction, including wooden studs, cinder blocks, bricks and concrete. Installation is simple: just mount the wall frame, connect the display bracket and hang the display.
5-Year Warranty and Environmentally Responsible Design
The DWM1742MN is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility. For peace of mind, it comes backed by a 5-year warranty.
