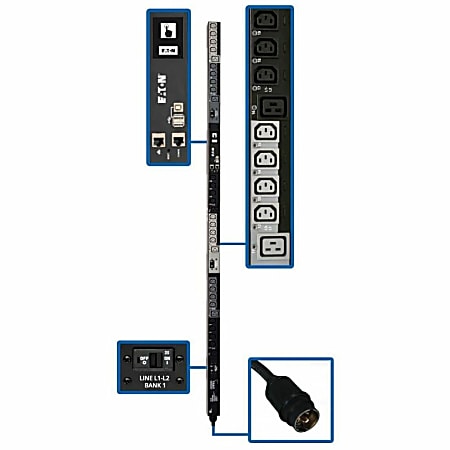

Tripp Lite 10kW 3-Phase PDU, Vertical, Switched, 0U, 24 IEC C13, 6 IEC C19 to L21-30P - 6 ft. Cord, LX Platform, TAA - Power distribution unit (rack-mountable) - 16 A - AC 208/240 V - 10 kW - 3-phase - Ethernet 10/100 - input: NEMA L21-30P

Tripp Lite 10kW 3-Phase PDU, Vertical, Switched, 0U, 24 IEC C13, 6 IEC C19 to L21-30P - 6 ft. Cord, LX Platform, TAA - Power distribution unit (rack-mountable) - 16 A - AC 208/240 V - 10 kW - 3-phase - Ethernet 10/100 - input: NEMA L21-30P
Share
1 / 1
$1350.99/each

Description

    • 30 outlets dispense AC power to connected equipment. During normal operation, 30 individually controllable outlets - 24 C13 and six C19 - distribute AC power to rack equipment. Each 208/240V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets are split into three separately breakered load banks that can be individually monitored to ensure proper load levels and prevent downtime due to overload-related breaker trips. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.
    • Color touchscreen LCD offers important data at a glance. An easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 208V 3-phase PDU via mobile device. If an EnviroSense2 module is connected to the Tripp Lite vertical PDU, the LCD also displays its status and environmental data, such as temperature and humidity.
    • 3-phase PDU distributes, monitors and manages network-grade power. Recommended for data centers, server rooms and network closets, this switched power distribution unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and remotely reboot locked network items without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance, thus lowering the PDU's total cost of ownership.
    • Built-in LX platform network management card allows remote access 24/7. The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.
