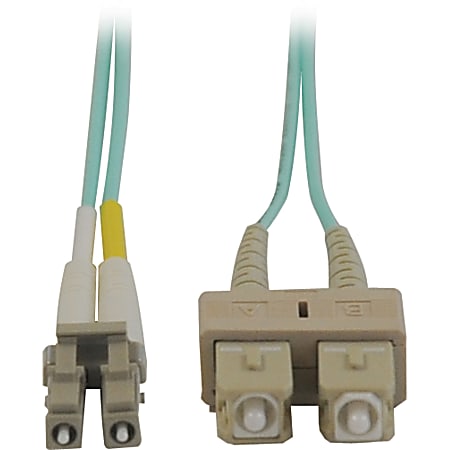

Tripp Lite 5M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Optic Patch Cable LC/SC Aqua 16' 16ft 5 Meter Item # 540934
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite introduces it's new OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications. These new technology, 50/125um, SC/LC Fiber Optic cables, provide nearly four times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.
|brand name||Tripp Lite|
|Cable Characteristic||Patch Cable|
|cable type||Fiber Optic|
|Connector||2 x SC multi-mode - male|
|Connector (Second End)||2 x LC multi-mode - male|
|Connector on First End||2 x SC Male IEEE 802.3ae|
|Connector on Second End||2 x LC Male IEEE 802.3ae|
|Core / Cladding Diameter||50 / 125 micron|
|Core/Cladding Diameter||50/125 µm|
|Fiber Optic Mode||Multi-mode|
|Type of Fiber Optics||Multimode|
|warranty length||limited lifetime|
|What's Included||Fiber Optic Duplex Patch Cable; 5 meter Duplex Multimode 50/125 Aqua Fiber Patch Cable, SC/LC|
|Show More ▾|
10Gb Duplex MMF 50/125 OM3 LSZH 16 ft. Fiber Patch Cable with LC/SC Connectors
The Smart Solution for Local Area NetworksThis genuine Tripp Lite N816-05M fiber optic cable is the ideal solution for networks in need of fast, clear signal transmission up to the latest in industry standards. With attenuation loss that meets or exceeds current standards, fiber made from glass instead of polymer and documented insertion loss testing on every connector, Tripp Lite's fiber optic patch cables are ideal for high-density, demanding network applications. The N816-Series comes in lengths to fit a variety of installations.
The N816-05M comes with widely compatible dual LC and SC connectors that are thoroughly tested to ensure they meet Tripp Lite's stringent insertion loss standards. The connectors' edges are also beveled and color coded for easy and secure connection throughout your network. The N816-Series is OM3-reated, designed for 10Gb Ethernet networks and is also backward compatible with existing 50/125 fiber.
