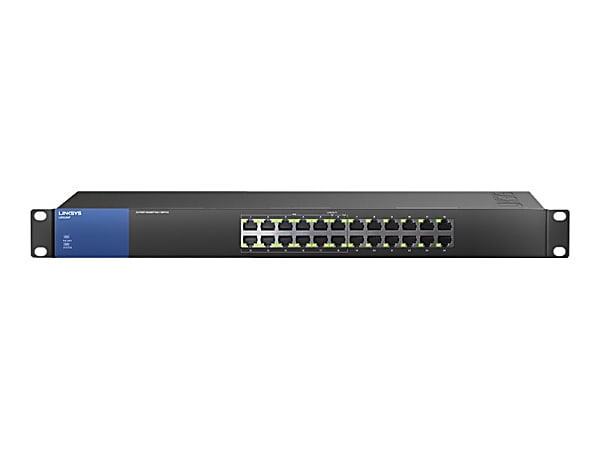

Linksys LGS124P 24-Port Business Gigabit POE+ Switch Item # 551647
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Upgrade the data paths of your local wired network to information superhighways with Gigabit switches at the desktop. Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speed. Power over Ethernet (PoE) capability also carries electrical power to peripheral devices without the need for additional outlets.
|Certifications & Standards||FCC Class A; CE; UL; CB; IEEE Standards:802.3; 802.3u; 802.3x; 802.3ab; 802.3az|
|dimensions||1 7/10" x 17 3/10" x 7 9/10"|
|Ethernet Technology||Gigabit Ethernet|
|Input Voltage||110 V AC; 220 V AC|
|Media Type Supported||Twisted Pair|
|PoE Budget||120 W|
|Port/Expansion Slot Details||24 x Gigabit Ethernet Network|
|ports||12 Power over Ethernet (PoE, RJ-45); 12 Power over Ethernet+ (PoE+, RJ-45)|
|Power Over Ethernet (PoE)||PoE+|
|power source||Power Supply|
|Total Number of Network Ports||24|
|warranty length||limited lifetime|
|Weight (Approximate)||6.08 lb|
|What's Included||LGS124P 24-Port Business Gigabit POE+ Switch; Power cord; Quick Start Guide|
|Show More ▾|
Linksys LGS124P 24-Port Business Gigabit PoE+ Switch
Learn how the 24-Port Gigabit PoE+ Switch accelerates productivity to Gigabit speeds, with PoE+, QoS and plug-and-play setup for ease of use. Upgrade the data paths of your local wired network to information superhighways with 24-port desktop Gigabit PoE+ switches.
- Wired connection speed up to 1,000 Mbps
- 24 Gigabit Ethernet autosensing ports
- Power over Ethernet Plus (PoE+) support
- Easy plug & play connection
- Meets EEE (Energy Efficient Ethernet) 802.3az standard
Gigabit PerformanceMinimize transfer times and stream high-bandwidth files to connected devices without interference.
Plug-and-Play ConvenienceInstantly extend your office network with a quick and easy installation.
Quality of Service (QoS) Traffic PrioritizationPrioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.
Auto-Sensing PortsAutomatically optimize speed for each connected device.
Integrated Power over Ethernet Plus (PoE+)Makes installation simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE) standard.
|Network Standards||IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az; IEEE 802.3af; 802.3at (PoE+)|
|Ports||24-port switch with 12 PoE+ ports (ports 1–6 and 13–18) and dedicated PoE power budget of 120 W|
|LEDs||Link, speed, activity, and PoE indicators|
|Performance||Full line rate and forwarding rate of 64B frame at:; 1.488 Mpps for 1000M port; 0.1488 Mpps for 100M port; 0.01488 Mpps for 10M port|
|MAC Address Table Size||8,000 entries|
|Bandwidth||48 Gbps (non-blocking)|
|Minimum System Requirements||Connected devices need Ethernet connectivity and Ethernet cables.|
|Dimensions (LxWxH)||440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)|
|Weight||2.758 kg (6.08 lbs)|
|Power Consumption||7.79 W / 17.65 W|
|Power Input||100–240 VAC, 50/60 Hz|
|Power Saving||Cable connected detection, sleep mode|
|Operating Temperature||0–50°C (32–122°F)|
|Storage Temperature||-40–70°C (-40–158°F)|
|Operating Humidity||10–90% (non-condensing)|
|Storage Humidity||10–90% (non-condensing)|
|Quality Of Service||802.1p and DSCP|
|Regulatory Compliance||FCC Class A, CE, UL, CB|
|Warranty and Support||Limited Lifetime|
- Linksys LGS124P 24-Port Gigabit Ethernet PoE+ Switch
- Power Cord
- Quick Start Guide
