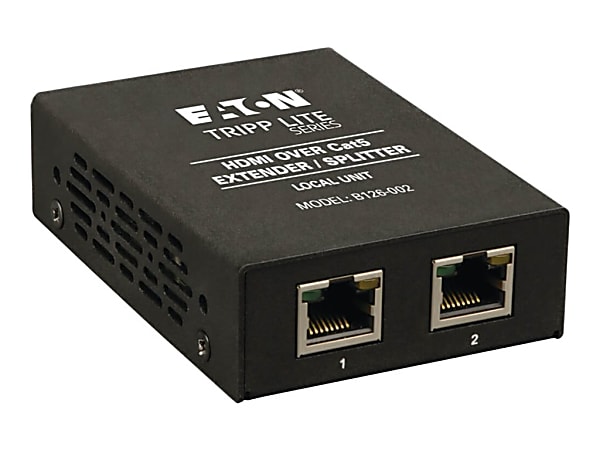

Tripp Lite B126-002 Video Extender Item # 579517
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's B126-002 splits an HDMI signal into 2, and allows you to locate monitors over long distances using a single Cat5e/6 cable. When used with an active remote unit, a 1080i (60Hz) signal can be extended up to 200ft.; or, a 1080p (60Hz) signal can be extended up to 150ft. When used with a passive remote unit, a 1080i (60Hz) signal can be extended up to 100ft.; or, a 1080p (60Hz) signal can be extended up to 50ft. It supports both stereo audio and 7.1 channel surround sound audio, as well as HDCP protected content.
|brand name||Tripp Lite|
|form factor||Rack-mountable; Wall Mountable; Pole-mountable|
|Graphics Modes||Full HD|
|Maximum Operating Distance||200 ft|
|Maximum Video Resolution||1920 x 1080|
|Media Type Supported||Twisted Pair|
|Number of Input Devices Supported||1|
|ports||2 Ethernet (RJ-45); 1 HDMI in|
|Transmitter Depth||3.60 in.|
|Transmitter Height||1 in.|
|Transmitter Width||2.50 in.|
|Twisted Pair Cable Standard||Category 6|
|warranty length||1-year limited|
|What's Included||B126-002 Video Extender; Mounting Hardware; External Power Supply; Owner's Manual|
|Show More ▾|
Split a Single HDMI Signal into Two Separate Signals
The B126-002 splits a single HDMI signal into two separate signals, making it the ideal solution for digital signage applications requiring multiple displays connected to one source, ranging from retail and point-of-sale displays to trade show presentations. The B126-002 allows for the video source to be in a secure, remote location for controlled access while still delivering signal to devices in another area.
This Tripp Lite 2-Port HDMI over Cat5/6 Extender/Splitter allows extension of an HDMI signal beyond the 15-ft. (5-meter) distance limitation. The B126-002 can extend a 1080i (60Hz) resolution up to 200 ft. and a 1080p (60Hz) resolution up to 150 ft. when used with an active remove unit (Tripp Lite B126-1A0 or B126-1A0-WP). When used with a passive remote unit (Tripp Lite B126-1P0 or B126-1P0-WP), it can extend a 1080i (60Hz) resolution up to 100 ft. and a 1080p (60Hz) resolution up to 50 ft. And, we haven't forgotten the sound! The B126-002 is compatible with both stereo and 7.1 channel surround sound audio delivering premium sound quality to every point of your application. For maximum distance performance, always use 24 AWG Solid Wire Cat5e/6 cable (Tripp Lite N202-series).
With no software or drivers to install, the B126-002's plug-and-play setup gets your application up and running faster. Simply connect the unit to the video source and remote receiver, connect the remote receiver to the HD display and watch as the B126-002 provides crystal clear resolution. The B126-002 is compatible with all HDMI video sources and all computer operating systems.
Versatile Installation Options
The B126-002 includes mounting hardware enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount.
