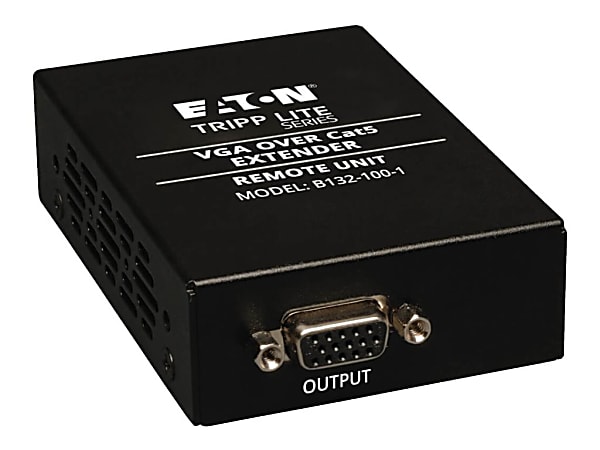

Tripp Lite B132-100-1 TAA/GSA Compliant Video Console Item # 580813
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's B132-100-1 works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440(60Hz) video signal up to 152.4 m (500-ft.), or a 1024 x 768(60Hz) video signal up to 304.8 m (1,000-ft.) 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY(Cat5) and N222-01K-GY(Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.
|brand name||Tripp Lite|
|Certifications & Standards||Federal Trade Agreements Act (TAA)|
|Maximum Operating Distance||1000 ft|
|Maximum Video Resolution||1920 x 1440|
|Media Type Supported||Twisted Pair|
|Number of Input Devices Supported||1|
|Number of Output Devices Supported||1|
|ports||1 Ethernet (RJ-45)|
|Twisted Pair Cable Standard||Category 6|
|warranty length||1-year limited|
|What's Included||B132-100-1 TAA/GSA Compliant Video Console; Mini-Screwdriver; Mounting Hardware; External Power; Owner's Manual|
|Show More ▾|
VGA over Cat5/Cat6 Extender Receiver Ideal for Long Distance Transmission
|Ensure clear video transmission at distances of up to 1,000 feet! The B132-100-1 VGA Over Cat5 Receiver is the ideal solution for digital signage applications that require long distance transmission and uncompromising video quality. It works with a B132-002-1 or B132-004-1 local unit to extend a VGA video signal over long distances. It features built-in Equalization and Gain controls for adjusting the video image. Mounting hardware is included to support multiple installation options. An AC power supply is included for powering the device.|
The Smart Solution for Digital Signage ApplicationsThe B132-100-1 enables the video source to be installed in a secure, remote location for controlled access. It can be used to connect display devices with VGA ports, such as DTVs, plasma displays, LCD TVs and projectors, to VGA video sources, such as computers, video cards and AV receivers.
Greater Distance—Greater FlexibilityThis genuine Tripp Lite VGA Over Cat5 Receiver works with a B132-002-1 or B132-004-1 local unit to extend a VGA video signal beyond the average 100-ft. distance limitation. The B132-100-1 can extend a 1024 x 768 (60 Hz) signal up to 1,000 ft. when using 24Awg Solid Wire Cat5e/6 cable (Tripp Lite N202-series), and supports a maximum resolution of 1920 x 1440 (60 Hz). For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K.
Superior Quality and Built-In Equalization Assure Error-Free Signal TransferThe B132-100-1 Receiver is manufactured using top-quality materials. Plus, built-in equalization and gain controls allow the video image to be adjusted for optimal quality. It is also compliant with RoHS (Reduction of Hazardous Substances) standards, reflecting Tripp Lite's commitment to environmental responsibility.
Versatile Installation OptionsThe B132-100-1 Receiver includes mounting hardware that enables it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount.
What's in the Box
- B132-100-1 Receiver
- Mini-Screwdriver for EQ/gain adjustment
- Mounting Hardware
- External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
- Owner's Manual
