Designed for business-class management, security, speed, and quality of service, Linksys smart PoE+ Gigabit Switches provide a network your business can grow on. Numerous QoS features ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth-intensive graphic/video file uploads and downloads. IGMP snooping limits IP multicast traffic to the ports that requested it, enabling the rest of the network to operate at peak efficiency.
|Certifications & Standards||IEEE Standards:802.3; 802.3u; 802.3ab|
|color||black - blue|
|Ethernet Technology||Gigabit Ethernet|
|Media Type Supported||Twisted Pair|
|PoE Budget||72 W|
|Port/Expansion Slot Details||8 x Gigabit Ethernet Network|
|ports||8 Power over Ethernet+ (PoE+, RJ-45)|
|Power Over Ethernet (PoE)||PoE+|
|Total Number of Network Ports||8|
|warranty length||limited lifetime|

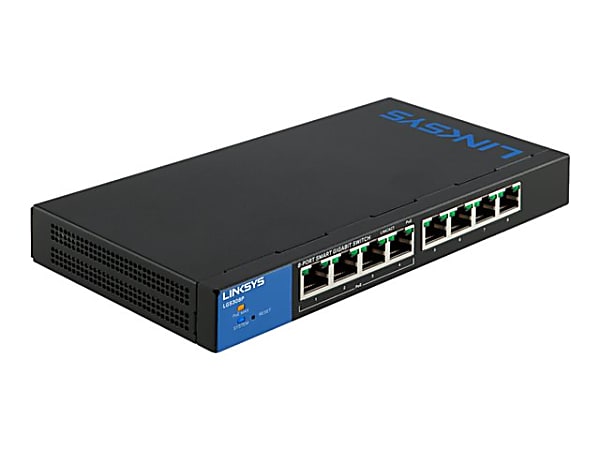

Linksys LGS308P 8-Port Business Smart Gigabit PoE+ Switch
Learn about the 8-Port Smart PoE+ Switch, featuring Power over Ethernet Plus, IPv6 Support, QoS, and DHCP snooping for a fast, secure network. Designed for business-class management, security, speed, and quality of service, with 8 PoE+ gigabit ethernet ports.
- Integrated Power Over Ethernet Plus
- Easy Configuration and Management
- Advanced Network Security
- Advanced QoS
- Meets EEE (Energy Efficient Ethernet) 802.3az standard
Quality of Service (QoS) Traffic PrioritizationNumerous QoS features prioritize traffic, ideal for real-time voice and video applications & high bandwidth graphic or video uploads and downloads.
Integrated Power over Ethernet Plus (PoE+)Makes installation simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE) standard.
Network Expansion FeaturesBuild a mesh of switches easily with features like Spanning Tree Protocol (STP) and Storm Control. They help control planned or inadvertent cable loops so you can expand your network with confidence.
Advanced Network SecurityEnsure data passes to authorized clients only with Port authentication and MAC-based port security. Advanced DHCP snooping and IP-MAC binding functions assure network integrity and help prevent attacks.
|Network Standards||IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3x; IEEE 802.3ad; IEEE 802.3az; IEEE 802.3af; IEEE 802.3at; IEEE 802.1d; IEEE 802.1q/p; IEEE 802.1X|
|Number of Ports with PoE+ Support||8|
|LEDs||System (blue), Link/Act/PoE (green/green)|
|System Power Consumption without PoE+||110V:9.95W; 220V:10.17W|
|Forwarding Rate||11.90 Mpps|
|Switching Capacity||16 Gbps|
|MAC Address Table Size||8K|
|Jumbo Frame (FE, GE)||9K|
|Dimensions (LxWxH)||210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)|
|Weight||0.562 kg (1.23 Ibs.)|
|Power Dedicated to PoE+||72W|
|Power Input||100–240V; 50-60 Hz; (1.5A max)|
|Operating Temperature||0 to 50°C (32 to 122°F)|
|Storage Temperature||-40 to 70°C (-40 to 158°F)|
|Operating Humidity||10 to 90% RH|
|Storage Humidity||10 to 90% RH (non-condensing)|
|Spanning Tree||IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree|
|Link Aggregation||IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group|
|VLAN||Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication|
|Number of VLANs Supported||128 active VLANs (4,096 range)|
|Auto Voice VLAN||VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels|
|IGMP Snooping||IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups|
|HOL Blocking Prevention||Head of line (HOL) blocking prevention|
|Port Mirroring||Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer|
|Security Features||802.1x Radius authentication; DHCP snooping; IP-MAC binding; Port security supports limited dynamic lock and locked MAC address; Management access control|
|Storm Control||Broadcast, flooding, and multicast|
|RMON||Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis|
|Management Interface||HTTP; HTTPS|
|Other Management||Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP|
|SNMP||Version 1; Version 2c|
|Firmware Upgrade||Web Browser (HTTP/HTTPS); TFTP|
|QoS - Class of Service||Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based|
|Copper FE/GE Ports (RJ45)||g1–g8|
|Green Power Mode||EEE+, Short Reach + Energy Detect|
|QoS - Priority Levels||4 hardware queues|
|QoS - Scheduling||Priority queuing and weighted round robin (WRR)|
|Total System Ports||8GE|
