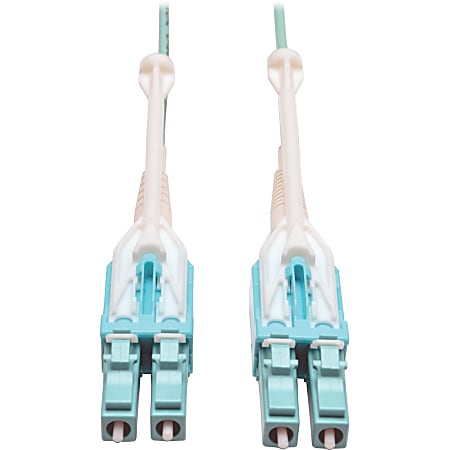

Tripp Lite's N820-02M-T is a Premium OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cable, for use with 10GbE applications. This 50/125um, LC/LC Fiber Optic cable provides nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. Each LC/LC connector features a push/pull tab, providing maximum accessibility in high density installations; install or remove the cable with one hand without needing additional tools. LOMMF cable allows 10GbE serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. A slim, uniboot design provides space savings, while premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible with existing 50/125 fiber. Sturdy plastic housing for long lasting durability.
|brand name||Tripp Lite|
|Cable Characteristic||Patch Cable|
|cable type||Fiber Optic|
|Connector||2 x LC multi-mode - male|
|Connector (Second End)||2 x LC multi-mode - male|
|Connector on First End||2 x LC Male Network|
|Connector on Second End||2 x LC Male Network|
|Core / Cladding Diameter||50 / 125 micron|
|Core/Cladding Diameter||50/125 µm|
|Device Supported||Network Device|
|Fiber Optic Mode||Multi-mode|
|Type of Fiber Optics||Multimode|
|warranty length||limited lifetime|
The Smart Connection for High-Density Network Applications
|Tripp Lite’s N820-02M-T 2 m (6-ft.) LC/LC fiber optic cable is the ideal solution for networks in need of fast, clear signal transmission. With attenuation loss that meets or exceeds current standards, glass fiber construction, and documented insertion loss testing on every connector, the N820-02M-T is ideal for high-density, demanding network applications.|
LC/LC ConnectorsThe N820-02M-T comes with widely compatible dual LC connectors that are thoroughly tested to ensure they meet Tripp Lite’s stringent insertion loss standards. The connectors’ edges are also beveled and color coded for easy and secure connections throughout your network. The N820-02M-T is OM3-rated, designed for 10Gb Ethernet networks and is also backward compatible with existing 50/125 fiber.
Unique Push/Pull Tabs for Maximum Accessibility
Tripp Lite’s N820-02M-T features special Push/Pull tabs attached to each end of the cable connector for simplified installations and maximum accessibility in high density installations. Just grab the tab to insert or pull out.
The N820-02M-T is manufactured using top quality materials. With 10Gb 50/125 duplex fiber, a Low-Smoke, Zero Halogen (LSZH) jacket, sturdy connectors and fiber made from glass instead of a polymer, Tripp Lite’s fiber optic cables are made to last in high-demand data center and networking applications.
When you choose the Tripp Lite N820-02M-T, you get superior performance plus peace of mind! We're so confident of the quality of the N820-02M-T that we warrant it to be free from defects in material and workmanship—for life! The N820-02M-T is also manufactured according to strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect and protect your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
