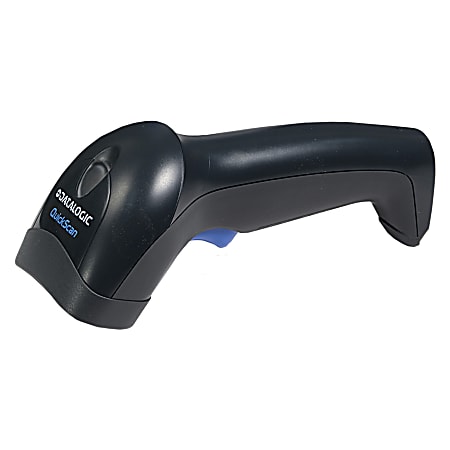

Datalogic QuickScan L Bar Code Reader Item # 606595
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The QuickScan L bar code reader is a bar code scanner with laser technology at an affordable price. The QuickScan L reader is the perfect solution for general purpose users who prefer laser scanning technology and need to read bar codes at nominal distances. This scanner is lightweight and small with an ergonomic form factor which provides the user with ease of scanning during daily operations. Used in retail and office application environments, the QuickScan L reader provides a snappy scanning performance and is capable of reading a wide range of bar codes including the majority of 1D and GS1 DataBar codes (previously known as RSS).The wider than usual scan angle allows users to read a longer bar code from a shorter distance. The gun shaped ergonomic design fits most users' hands comfortably and the scanner only weighs 4.5oz/128g (without the cable). The QuickScan L reader has been designed with durability in mind. It meets the IP42 sealing rating (against dust and liquid spills) and has a 5ft/1.5m drop specification. This scanner also has a greater than 1 million duty cycle trigger specification as well as sustainable 20kV of Electro Static Discharge (ESD). These are the best class specifications of any product on the market. One of the most vulnerable features of any scanner is damage to the scanner window. When such incidents happen, the scanner may have to be replaced. The QuickScan L reader was specially designed so that the end user can order a replacement window pack and replace the damaged window without having to send the scanner in for repairs.
|Barcode Symbology Supported||Interleaved 2/5; Code 39 Full ASCII; Code 39 TriOptic; Discrete 2/5; UPC/EAN with supplementals; UCC/EAN128; Code 128; Code 128 Full ASCII; Code 93; Codabar; Code MSI; Code 11; IATA; GS1 DataBar; Chinese 2 of 5|
|Decode Capability||EAN/JAN, Code 93, Code 39, UCC/EAN-128, IATA, GS1 DataBar, Code 39 Full ASCII, Discrete 2 of 5, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, Code 128 Full ASCII, Code 39 Trioptic|
|Depth of Field||5.50"@5 mil|
|Drop Specification||5 ft to concrete|
|Electric Current Required||30 mA (standby), 100 mA (typical)|
|Light Source Wave Length||650 nm|
|Maximum Scan Resolution||5 mil|
|Minimum Bar Width||5 mil|
|OK Notification||Beeper, LED indicator|
|Print Contrast Signal (PCS)||30%|
|Scan Field Width||5.47 in. - 10.59 in.|
|Scan Rate||100 scan/s|
|Weight (Approximate)||4.50 oz|
