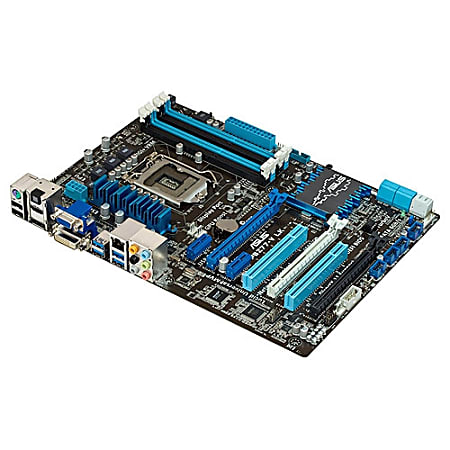

Asus P8Z77-V LK Desktop Motherboard - Intel Z77 Express Chipset - Socket H2 LGA-1155
1 / 1
$167.99/each
Description
This motherboard supports LGA1155 socket for 3rd generation Intel Core processor-based platform and 2nd Generation Core / Pentium / Celeron processors in the LGA1155 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. LGA1155 socket for 3rd generation Intel Core processor-based platform and 2nd Generation Core / Pentium / Celeron processors are among the most powerful and energy efficient CPUs in the world.
Specifications
Product Specifications
| Item # | 621253 |
| Manufacturer # | P8Z77-VLK |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC892 |
| BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, UEFI BIOS, SMBIOS 2.7 support |
| BIOS Type | AMI |
| brand name | ASUS |
| Buttons & Keys | MemOK |
| Chipset Manufacturer | Intel |
| Chipset Model | Z77 Express |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/600; Serial ATA/300 |
| depth | 8.8 in. |
| DisplayPort | Yes |
| DVI | Yes |
| Environmental Certification | WEEE |
| form factor | Atx |
| Gigabit Ethernet | Yes |
| HDMI | Yes |
| Internal Interfaces | 1 x USB 3.0 - header; 8 x USB 2.0; 1 x serial; 1 x SPDIF out; 1 x audio |
| manufacturer | ASUS COMPUTER INTERNATIONAL |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Memory Standard | DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Technology | DDR3 SDRAM |
| model | P8Z77-V LK |
| Multi GPU Supported | SLI; CrossFireX |
| Network Controller | Realtek RTL8111F |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 3 |
| Number of PCI Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 7 |
| Onboard Audio Header | Yes |
| Onboard LEDs Header | Yes |
| Onboard S/PDIF Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 8 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 4 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Power Supply Supported | EPS12V |
| Processor Socket | LGA1155 Socket |
| Processor Supported | Core i5; Core i7; Core i3; Pentium Dual-core; Celeron Dual-Core |
| Processor Technology | Smart Response Technology; Turbo Boost Technology 2.0 |
| PS/2 Port | Yes |
| RAID Features | Intel Smart Response Technology |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC892 |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Total Number of Onboard USB Ports | 10 |
| Total Number of PCI Express Slots | 5 |
| Total Number of USB Ports | 6 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
| weight | 3.02 lb |
