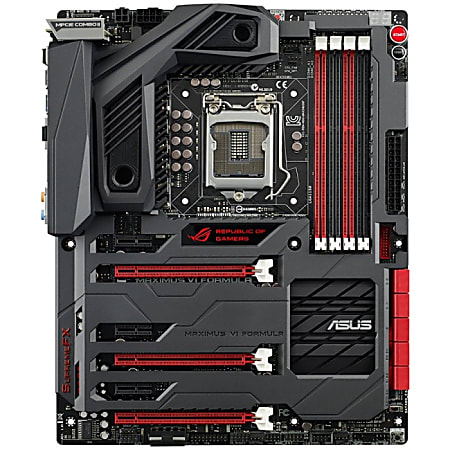

Asus Maximus VI Formula Desktop Motherboard - Intel Z87 Express Chipset - Socket H3 LGA-1150 - Retail Pack
1 / 1
$324.99/each
Description
Maximus VI Formula series is the ultimate ATX gaming motherboard. Why? Just count the reasons. ROG's sixth-generation Formula packs even greater cooling performance, the very best onboard audio, incredible strength, amazing heat dissipation and advanced shielding technology. With ultrafast Intel Ethernet plus attention to design that goes right down to the level of audio capacitors and amplifiers, the Maximus VI Formula arms you with gaming-dominating advantages that other motherboards just can't match - that's why it's the winning formula.Excited? Then our Maximus VI Formula video is sure to get you truly pumped.
Specifications
Product Specifications
Item # | 632961 |
Manufacturer # | MAXIMUS VI FORMULA |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | SupremeFX Formula |
BIOS Features | WfM 2.0 support, ASUS EZ Flash 2, ASUS O.C. Profile, USB BIOS Flashback, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0a support |
BIOS Type | AMI |
Bluetooth | Yes |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2500 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.) |
Buttons & Keys | CMOS Clear; ROG Connect On/Off; DirectKey; MemOK; TPU; EPU; Power; Reset |
Chipset Manufacturer | Intel |
Chipset Model | Z87 Express |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600 |
depth | 9.6 in. |
DisplayPort | Yes |
Environmental Certification | WEEE; RoHS; ErP Ready |
form factor | Atx |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
HDMI | Yes |
Internal Interfaces | 4 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x SPDIF out - header; 1 x audio - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 3.10 GHz (O.C.); 3 GHz (O.C.); 2.93 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.50 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.80 GHz (O.C.); 1.60 GHz; 1.33 GHz |
Memory Standard | DDR3-3100/PC3-24800 (O.C.); DDR3-3000/PC3-24000 (O.C.); DDR3-2933/PC3-23400 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2500/PC3-20000 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1800/PC3-14400 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
Memory Technology | DDR3 SDRAM |
model | Maximus VI Formula |
Multi GPU Supported | CrossFireX; SLI |
Network Controller | Intel I217V |
Number of Memory Slots | 4 |
Number of Mini PCI Express Slots | 1 |
Number of PCI Express x1 Slots | 3 |
Number of PCI Express x16 Slots | 3 |
Number of SATA Interfaces | 10 |
Number of Total Expansion Slots | 7 |
Onboard Audio Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Video | CPU Dependent Video |
Package Type | Retail |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 4 onboard USB 2.0; 2 onboard USB 3.0; 1 S/PDIF; 1 S/PDIF out; 4 USB 2.0; 6 USB 3.0 |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
Processor Technology | Turbo Boost Technology 2.0; Quick Sync Video Technology |
RAID Features | Intel Smart Response Technology |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL) |
Sound Controller Manufacturer | Creative |
Sound Controller Model | SupremeFX |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA, 1 x M.2 - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; ASMedia ASM1061: SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 6 |
Total Number of PCI Express Slots | 6 |
Total Number of USB Ports | 10 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
$324.99/each
