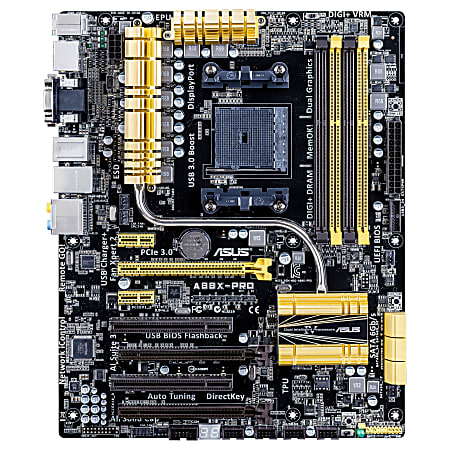

Asus A88X-PRO Desktop Motherboard - AMD Chipset - Socket FM2+ - 1 x Retail Pack
1 / 1
$149.99/each
Description
ASUS motherboard guards your PC with 5x protection. ASUS uses quality components like DIGI+ VRM digital power design for precise APU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage.
Specifications
Product Specifications
Item # | 643896 |
Manufacturer # | A88X-PRO |
64-bit Processing | Yes |
Audio Channels | 7.1 |
BIOS Features | DMI 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, USB BIOS Flashback, UEFI BIOS, SMBIOS 2.7 support |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz, 2400 MHz (O.C.), 2200 MHz (O.C.), 2250 MHz (O.C.) |
Buttons & Keys | DirectKey; MemOK; TPU; EPU; BIOS Flashback |
Chipset Manufacturer | AMD |
Compatible Processors | Athlon, Sempron, A series (supports CPUs with up to 4 cores) |
controller type | Serial ATA/600 |
depth | 9.6 in. |
DisplayPort | Yes |
DVI | Yes |
eSATA | Yes |
form factor | Atx |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | AMD |
Graphics Controller Memory | 2 GB |
Graphics Memory Accessibility | Shared |
HDMI | Yes |
Internal Interfaces | 8 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x SPDIF out - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 64 GB |
Maximum Memory | 64 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 2.40 GHz (O.C.); 2.25 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz; 1.87 GHz; 1.60 GHz; 1.33 GHz |
Memory Standard | DDR3-2400/PC3-19200 (O.C.); DDR3-2250/PC3-18000 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000; DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
Memory Technology | DDR3 SDRAM |
model | A88X-PRO |
Network Controller | Realtek RTL8111GR |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 2 |
Number of PCI Express x16 Slots | 3 |
Number of PCI Slots | 2 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 7 |
Onboard Audio Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
Package Type | Retail |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 1 DVI out; 2 eSATA; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 8 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 2 USB 2.0; 4 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Power Supply Supported | ATX12V |
Processor Socket | Socket FM2+ |
Processor Supported | A-Series; Athlon; Sempron |
Processor Technology | Turbo Core 3.0 Technology |
PS/2 Port | Yes |
quantity | 1 |
RAID Levels | 0; 1; 5; 10; JBOD |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC1150 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin SATA, 2 x 7pin eSATA - 8 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 10 |
Total Number of PCI Express Slots | 5 |
Total Number of USB Ports | 6 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
Weight (Approximate) | 4.10 lb |
What's Included | AMD A88X-PRO Motherboard; Support Disc; User's Manual; ASUS Q-Shield; 4 x SATA 6Gb/s Cable(s); 1 x Q-connector(s) (2 in 1) |
$149.99/each
