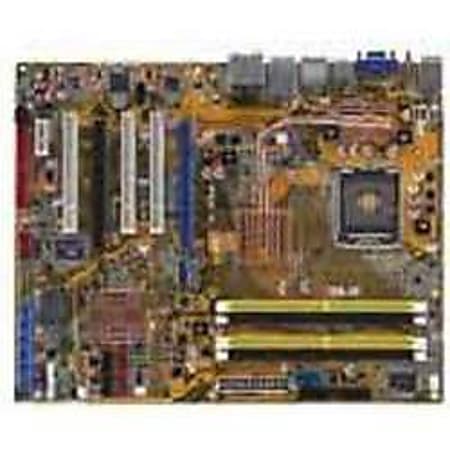

Sign up for ASUS P5K-V - motherboard - ATX - iG33
1 / 1
$164.99/each
Description
This motherboard supports the latest Intel Quad-core processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. It is excellent for multi-tasking, multi-media and enthusiastic gamers with 1333/1066/800 MHz FSB. Intel Quad-core is one of the most powerful CPU in the world. The Intel G33 Express Chipset boosts your gaming and multimedia experience with the integrated graphics engine Intel Graphics Media Accelerator 3100. It supports 1333MHz FSB (front-side-bus), and delivers breakthrough advances in 3D and 2D graphics; and video capabilities. This integrated chipset is able to meet the changing display requirements of visually rich applications and features the Intel Clear Video Technology - which trailblazers new standards in high-definition video, crisp imaging, and accurate color control.
Specifications
Product Specifications
| Item # | 683705 |
| Manufacturer # | 683705 |
| manufacturer | ASUS COMPUTER INTERNATIONAL |
| form factor | Atx |
| depth | 9.6 in |
| Compatible Processors | pentium 4, pentium extreme edition, pentium d, core 2 duo, core 2 extreme, core 2 quad, celeron 400 sequence |
| 64-bit processors compatibility | yes |
| Processor Socket | LGA775 Socket |
| multi-core support | dual-core / quad-core |
| Chipset Type | intel g33 express / intel ich9 |
| Max Bus Speed | 1333 MHz |
| BIOS Type | AMI |
| Storage Controller | ata-133, serial ata-300 (raid), esata port |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Installed Qty (Max Supported) | 0 ( 1 ) |
| supported ram technology | ddr ii sdram |
| Supported RAM Integrity Check | Non-ECC |
| RAM Installed ( Max ) | 0 mb / 8 gb (max) |
| supported ram speed | pc2-6400, pc2-5300, pc2-8500 |
| memory type | unbuffered, two ddr channels |
| Graphics Controller | Intel GMA 3100 |
| Video Memory | dynamic video memory technology 4.0 |
| video memory installed ( max ) | / 256 mb (max) |
| audio formats supported | sound card |
| Audio Codec | Realtek ALC883 |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | plug and play, acpi 2.0, rohs |
| networking | network adapter - ethernet, fast ethernet, gigabit ethernet |
| BIOS Features | dmi 2.0 support, wfm 2.0 support, asus mylogo2, acpi 2.0 support, smbios 2.3 support, asus ez flash 2, asus o.c. profile |
| Manual Settings | cpu frequency, processor core voltage, memory voltage, memory bus frequency, pci express x16 slot frequency |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
| Hardware Features | c.p.r. (cpu parameter recall), asus q-fan 2, green edition, asus ai nos (non-delay overclocking system), asus sata on the go, heat pipe chipset cooling, ati crossfire technology support, asus ai nap, crashfree bios 3, asus q-connector |
| Expansion Slot(s) | 1 processor - lga775 socket ª 4 memory - dimm 240-pin ª 1 pci express x16 ª 1 pci express x16 ( x4 mode ) ª 1 pci express x1 ª 3 pci |
| Storage Interfaces | intel ich9 : serial ata-300 - connector(s): 4 x 7pin serial ata - 4 device(s) ª jmicron jmb363 : ata-133 - connector(s): 1 x 40pin idc - 2 device(s) ª jmicron jmb363 : serial ata-300 - connector(s): 1 x 7pin serial ata, 1 x 7pin external sata - raid 0 / r |
| data input method | 1 x audio - line-in - 4 pin mpc ª 1 x storage - floppy interface - 34 pin idc ª 1 x keyboard - generic - 6 pin mini-din (ps/2 style) ª 1 x audio - spdif output - rca ª 1 x storage - esata-300 - 7 pin external serial ata ª 1 x ieee 1394 (firewire) - 6 pin |
| Additional Connectors (Optional) | 1 x ieee 1394 (firewire), 6 x hi-speed usb |
| cable type included | 1 x ide cable ª 1 x floppy cable ª 2 x serial ata cable ª 1 x serial ata power adapter |
| software included | asus mylogo2, asus live update, asus pc probe 2, asus ai booster |
$164.99/each
