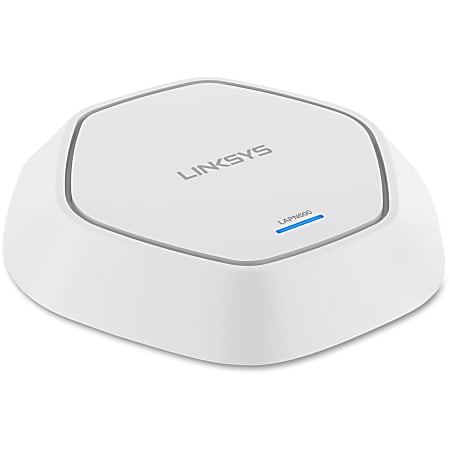

Linksys® LAPN600 Business Wireless-N600 Dual-Band Access Point, TW8542 Item # 694737
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
If you frequently work on a variety of wireless devices, this dual-band access point makes it easy to transfer work between platforms to stay productive. Work from your computer, smartphone and tablet and keep work moving smoothly.
- Wireless-N technology delivers up to 600 (300 + 300) Mbps data transfer rates.
- Dual-band 2.4GHz and 5.0GHz wireless connectivity supports high-bandwidth applications, including video streaming and file sharing.
- Gigabit Ethernet port provides fast speeds to maximize wireless-to-wired performance.
- Integrated Power over Ethernet (PoE) capabilities help optimize placement by eliminating extra power adapters.
- Advanced security and preventions help keep your wireless network safe. Wi-Fi Protected Access (WPA/WPA2) security and data encryption and 802.1X with RADIUS provide security measures to help protect sensitive information and data transfers from being accessed.
|Certifications & Standards||IEEE Standards:802.11b; 802.11g; 802.11n; 802.1q|
|dimensions||1.72"H x 9.33"W x 9.57"D|
|form factor||Wall Mountable; Ceiling Mountable; Desktop|
|Frequency Band||2.40 GHz; 5 GHz|
|ISM Maximum Frequency||2.40 GHz|
|maximum data transfer rate||600|
|Power Over Ethernet (PoE) Supported||PoE+|
|UNII Maximum Frequency||5 GHz|
|warranty length||limited lifetime|
|Wireless LAN Standard||IEEE 802.11n|
|Wireless Security||WPA; WPA2; WEP; 802.1X RADIUS|
|Wireless Transmission Speed||600 Mbit/s|
|Show More ▾|
Linksys LAPN600 Business Access Point Wireless Wi-Fi Dual Band 2.4 + 5GHz N600 with PoE
Learn how the N600 Dual-Band Wireless Access Point with PoE offers fast and secure extended wireless coverage to your business network. Employs Wi-Fi technology (802.11n) to provide a fast, powerful wireless network at a transfer rate of up to 600 Mbps.
- Integrated Power over Ethernet
- Dual Band (2.4 GHz + 5 GHz) capability and speeds up to 600 Mbps
- Industrial-strength Wi-Fi Protected Access (WPA, WPA2) security and data encryption
- IPv6 Support
- High Power PA for better Wi-Fi coverage
Up to N600 MbpsProvides high-speed connectivity for notebooks, smartphones, tablets, and other Wi-Fi enabled devices
Single Point Control: ClusteringSimplifies administration and management efforts with a Single Point Control, reducing the costs and complexity of managing multiple wireless access points.
High Power Wireless CoverageHigh power offers better, wider wireless coverage for you and your business, strengthening your network connection in hard-to-reach areas.
Gigabit Ethernet PortWireless clients can enjoy faster speeds by maximizing wireless-to-wired performance. Gigabit Ethernet is 10x faster than Fast Ethernet.
3-in-1 Access Point, WDS & Workgroup BridgeExtends wired and wireless range with three modes: traditional access point, wireless distribution system (WDS), or wireless bridge.
Easy to Use with PoE+Integrated with 802.3at Power over Ethernet Plus (PoE+) capability to eliminate external adapters and facilitate optimal placement.
Advanced Network SecurityProtect your network with advanced security features including Rogue AP detection, SSID to VLAN mapping, and 802.1X Supplicant.
|Network Standards||IEEE 802.11n; IEEE 802.11g; IEEE 802.11b|
|Radio Frequency Bands||Concurrent Dual-Band 2.4 GHz and 5 GHz|
|802.1q VLAN||Yes, 802.1q-based VLAN|
|Ports||1 Gigabit Ethernet Port|
|LEDs||One system LED|
|Antenna Gain||1.8 dBi @ 2.4 GHz;; 3.5 dBi @ 5 GHz|
|RF Transmit Power||802.11b @ 11 Mbps: 21 dBm; 802.11g @ 54 Mbps: 20 dBm; 802.11n @ HT20/HT40 MCS7/15: 19 dBm|
|Radio Frequency Channels||2.412 to 2.462 GHz; 11 channels; 5.180 to 5.240 GHz; 4 channels; 5.745 to 5.825 GHz; 5 channels|
|Receive Sensitivity||802.11b @ 11 Mbps: -85 dBm; 802.11a/g @ 54 Mbps: -70 dBm; 802.11n @ HT20 MCS7/15: -65 dBm; 802.11n @ HT40 MCS7/15: -62 dBm|
|Maximum Power Consumption||17W|
|Dimensions (LxWxH)||243.08 x 236.98 x 43.69 mm (9.57 x 9.33 x 1.72 in)|
|Weight||498.95 g (1.10 lb)|
|Operating Temperature||0° to 40°C (32° to 104°F)|
|Storage Temperature||-20° to 70°C (-4° to 158°F)|
|Operating Humidity||10% to 85% (non-condensing)|
|Storage Humidity||10% to 90% (non-condensing)|
|Mounting||Ceiling; Wall; Desktop|
|Number of VLANs Supported||17, 1 management VLAN plus 16 VLANs for SSID|
|Security Lock||Kensington lock slot|
|Access Control||Yes, MAC based ACL with local or remote RADIUS server authentication|
|Management Interface||HTTP; HTTPS; SNMP|
|Regulatory Compliance||Class B, Wireless;; FCC, CE, IC|
|Rate Limiting||Yes, Bandwidth Management per SSID|
|Event Notification||Local Log, Remote Syslog, and Email Alert|
|Network Diagnostics||Log, Ping, Packet Capture|
|Warranty and Support||Limited Lifetime|
|External Power Adapter||12V/1A|
|External Power Amplifier||High Power PA|
|Isolation of Wireless Clients in the Same SSID||Yes|
|Rogue AP Detection||Yes|
|Scheduler||Yes, Time-based profiles per SSID|
|SSID to VLAN Mapping||Yes|
|Wireless Security||WEP; WPA; WPA2; 802.1X RADIUS|
- Wireless-N600 Dual Band Access Point with PoE (LAPN600)
- Quick Start Guide
- Ethernet Cable
- AC Power Adapter
- CD with Documentation
- Mounting Bracket
- Mounting Kit Screws
- Ceiling Mount Back plate
- Drilling Layout Template
