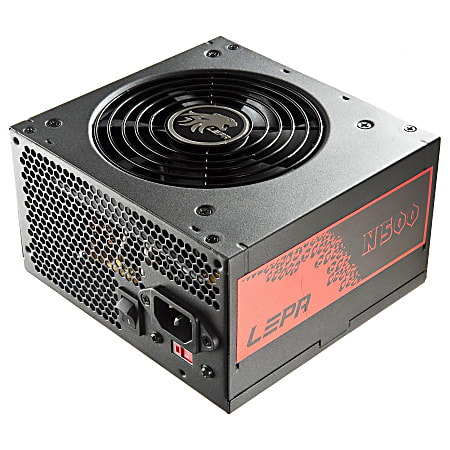

LEPA N500-SA ATX12V & EPS12V Power Supply

1 / 1

Description

High efficiency 5Vsb circuit helps system meet EU ErP Lot 6 2010 standby low power consumption requirements.
12cm fan with thermal programmed speed controller provides silent cooling performance.
Over Power, Over Voltage, Over Current, Short-circuit, and Brown Out protection are equipped to provide great safety to your system.
8P PCI-E connector for extreme graphics cards.
CPU 12V connector rail with >18A output to support next generation >6 cores processor structure.
60cm CPU connector cable facilitates installation with bottom-mounted PSU chassis.
SATA power connectors with 3.3V rail support new generation SSD.
Active PFC universal switching circuit improves Power Factor value up to 0.99. (N400-SA-EU, N500-SA-EU, N600-SA only)

Specifications

Item #	729438
Manufacturer #	N500-SA
brand name	LEPA
Efficiency	83%
form factor	Internal
Input Current	8 A @ 110V; 5 A @ 220V
Input Voltage	110 V AC; 220 V AC
Input Voltage Range	115 V AC to 230 V AC
Input Voltage Type	AC
manufacturer	Enermax Technology Corporation
model	N500-SA
Number of +12V Rails	1
number of fans	1
Output Current	+3.3V - 25 A ¦ +5V - 20 A ¦ +12V - 34 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Output Power	500 W
Output Voltage	3.3 V DC @ 25 A; 5 V DC @ 20 A; 12 V DC @ 34 A; -12 V DC @ 800 mA; 5 V DC @ 3 A
Product Series	N
protection type	Over Voltage; Over Current; Over Power; Short Circuit; Brownout
Receptacles	1 x 24-pin ATX Motherboard; 1 x 4+4pin ATX12V Motherboard; 4 x 4-pin LP4 Peripheral Device; 1 x 4-pin SP4 Floppy Drive; 5 x Serial ATA; 1 x 6-pin PCI-E; 1 x 6+2pin PCI-E
Specification Compliance	ATX12V/EPS12V
warranty length	2-year limited
