HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter - PCI Express 3.0 x16 - 100 Gbit/s - 2 x Total Infiniband Port(s) - QSFP - Plug-in Card Item # 809984
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
- The data speed of 100 Gbit/s maximizes system performance and saves time during critical tasks
- To fulfill your need this infiniband host bus adapter is a perfect choice
- This 16000MB/s bandwidth adapter is ideal for PCs with PCI Express 3.0 x16 slots, ensuring top level network connectivity for your desktops
|Expansion Card Type||Adapters|
|Eco Label Standard||REACH|
|Product Type||Specialty Expansion Card|
|Product Name||InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter|
|form factor||Plug-in Card|
|Total Number of Infiniband Ports||2|
|Data Transfer Rate||13421772800|
|Expansion Slot Type||QSFP|

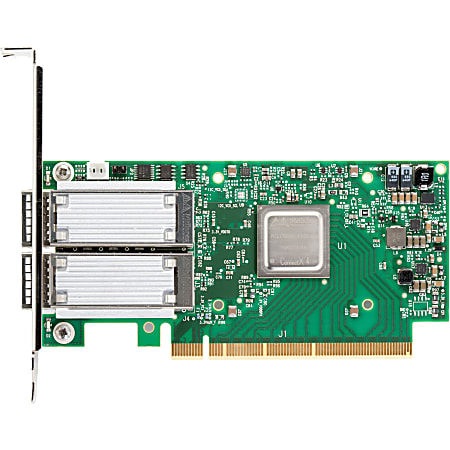

HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter
Are you looking for an HPE EDR InfiniBand Adapter for your HPE ProLiant XL and HPE ProLiant DL Gen9 and Gen10 server families? The HPE InfiniBand EDR and 100 Gb Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and DL Gen9 and Gen10 servers in the data center. The HPE InfiniBand EDR and 100 Gb Ethernet adapters include HPE InfiniBand EDR 100Gb 1-port 841QSFP28 Adapter, HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter, HPE InfiniBand EDR/Ethernet 100Gb 1-port 840QSFP28 Adapter, and HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter. The 1-port 841QSFP28 card supports InfiniBand, and the rest of the other cards support both InfiniBand and Ethernet. Combined with EDR InfiniBand or 100 Gb Ethernet switches, they deliver low latency and up to 100Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.
The 841QSFP28 adapters are based on Mellanox® ConnectX-5 technology.
The 840QSFP28 adapters are based on Mellanox ConnectX-4 technology.
Low Latency, High-Bandwidth Adapters for EDR InfiniBand and 100 Gb Ethernet Connectivity
- The HPE InfiniBand EDR and 100 Gb Ethernet adapters are supported on the HPE ProLiant XL and HPE ProLiant DL Gen9 and Gen10 servers. They deliver up to 100Gbps bandwidth and a sub-microsecond low latency for demanding high performance computing (HPC) workloads.
- The adapter includes multiple offload engines that speed communications by delivering a low CPU overhead for increasing throughput.
- HPE InfiniBand EDR/Ethernet 100Gb 1-port and 2-port 841QSFP28 Adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.
|Form factor||Stand Up|
|Technology||Mellanox ConnectX-4 technology|
|Protocol supported||IBTA Specification 1.3 compliant and PCIe Gen3 x16|
|Port configurations||2 QSFP28 ports|
|Connector speed||PCIe Gen3 x16|
|Switches supported||Mellanox EDR InfiniBand switches, Mellanox FDR InfiniBand switches, and 100Gb Ethernet switches|
|Product dimensions (H x W x D)||7 x 8.5 x 2 in|
