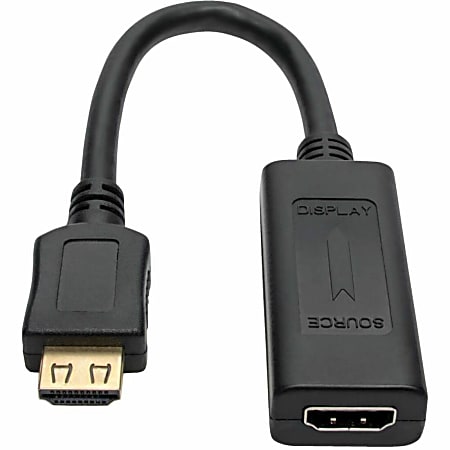

Tripp Lite B123-001 HDMI Signal Extender Item # 812675
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's B123-001 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, at a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B123-001, and then connect the built-in cable to the monitor. The built-in HDMI cable features a latching connector for a more secure connection. Software or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
|brand name||Tripp Lite|
|Certifications & Standards||TAA|
|Connector on First End||1 x 19-pin HDMI Female HDMI 1.3 Digital Audio/Video|
|Connector on Second End||1 x 19-pin HDMI Male HDMI 1.3 Digital Audio/Video|
|Device Supported||Audio/Video Device; TV; Optical Drive; Monitor|
|warranty length||3-year limited|
Extend an HDMI Signal up to 150 ft.
- Creating digital signs for your office, store, restaurant, bar or other retail establishment
- Giving video presentations at a trade show or large hall
- Setting up a home theater layout with the source device hidden away from the display
The Smart Solution for Long-Run HDMI ApplicationsBecause the video source does not have to be close to the display, you can secure the source device in a safe remote location for controlled access. The B123-001 connects HDMI sources, such as Blu-ray™ players, laptops and computers, with HDMI display devices, including high-definition televisions, projectors and monitors, using HDMI cabling. It’s ideal for point-of-sale and other retail displays, trade show presentations, churches, schools and even home theater applications.
The B123-001 supports HD video resolutions up to 1920 x 1200, including 1080p, at 24 Hz up to 150 feet from the video source. No adjustments or equalization is needed to transmit crystal-clear audio and video. When extending a 1080p signal more than 75 feet or a 3D signal more than 50 feet, using 24 AWG HDMI cabling is suggested.
Latching Connectors Ensure Continuous A/V Signal
To ensure a continuous signal, the unit’s male connector latches firmly to prevent the adapter from coming loose or accidentally disconnected.
Convenient Plug-and-Play SetupThe bus-powered, plug-and-play design of the B123-001 allows you to set up your application quickly and efficiently without installing or mounting any extra hardware. Simply plug an HDMI cable from a video source into the B123-001’s female connector, and then plug the male end of the extender into an HDMI display. If additional power is needed, connect the USB Micro-B port to a computer’s USB port or a USB wall charger.
For maximum playback capability, the B123-001 is compliant with HDCP and 3D digital video content standards. It is also compatible with DTS-HD, Dolby® TrueHD and 7.1-channel surround sound for immersive hi-fi audio.
First-Rate Construction for Superior Signal Transfer Premium foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI interference. Molded gold-plated connectors with corrosion-resistant gold-plated contacts provide maximum conductivity and minimize data loss. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.
The B123-001 comes with a three-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
TAA-Compliant for GSA Schedule Purchases
The B123-001 is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Why Choose Tripp Lite?Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
Tripp Lite B123-001 Product Summary
- Extends a 1080p signal up to 150 ft. from source
- Supports HD video resolutions up to 1920 x 1200 (1080p) @ 24 Hz
- Latching male connector helps prevent accidental disconnection
- Plug-and-play—no drivers, software or external power required
- Compatible with DTS-HD, Dolby TrueHD and 7.1 channel surround sound audio
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Three-year warranty
