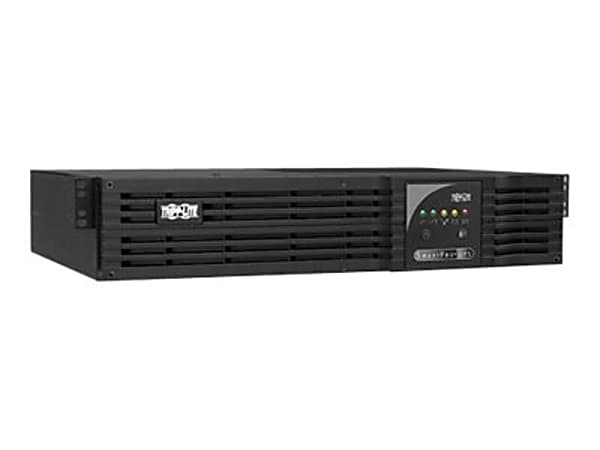

Tripp Lite UPS Smart 1500VA 1440W Rackmount AVR 120V Pure Sine Wave USB DB9 SNMP 2URM Item # 825980
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
SMART1500CRMXL 2U rackmount 1500VA/1440 watt UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V. Includes NEMA 5-15P input plug and NEMA 5-15R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and optional SNMP/Web management accessory card slot.HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. Includes PowerAlert monitoring software with USB and serial cables. Emergency Power Off (EPO) interface. Integrated 3-bank programmable PDU switching supports load shedding and remote-reboot of up to 3 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme.
|Backup/Run Time (Full Load)||6 Minute|
|Backup/Run Time (Half Load)||14 Minute|
|brand name||Tripp Lite|
|Certifications & Standards||UL1778 (USA), CSA (Canada), NOM (Mexico), Class A (EMI)|
|Emergency Power OFF||Yes|
|form factor||Tower/Rack Mountable|
|Frequency Provided||60 Hz|
|Input Connectors||1 x power NEMA 5-15|
|Input Current||12 A|
|Input Voltage||110 V AC|
|Load Capacity (VA)||1500 VA|
|Load Capacity (Watt)||1440 W|
|Maximum Battery Recharge Time||3 Hour|
|Network Management||SNMP Manageable|
|Output Voltage||120 V AC|
|Plug/Connector Type||NEMA 5-15P|
|ports||1 serial; 1 USB|
|Receptacles||8 x NEMA 5-15R|
|software included||PowerAlert monitoring software|
|Switching Time||5.50 ms|
|warranty length||2-year limited|
|Weight (Approximate)||60 lb|
|What's Included||SMART1500CRMXL 1500VA Tower/Rack-mountable UPS; SmartPro compact rackmount UPS System; 4-post rackmount installation hardware; USB and serial cabling; Owner's Manual with Warranty Information|
|Show More ▾|
SMART1500CRMXL SmartPro® Line-Interactive Rack/Tower Sine Wave UPS with Expandable Runtime and Network Slot
for servers and network hardware
This line-interactive UPS system protects your critical network systems from damage, downtime and data loss.
- Pure sine wave output improves compatibility with sensitive equipment.
- Expandable battery backup supports critical systems during outages.
- Advanced AVR corrects power sags (brownouts) and overvoltages.
- Surge protection blocks harmful transient voltages.
- LED indicators signal power, voltage correction, load level and battery charge state.
- Network card slot supports optional remote access and network management.
- USB and serial ports connect to computers for power management.
- 3-year warranty and $250,000 insurance reflect commitment to reliability.
Why is this UPS a Good Investment?The success of any organization depends on critical information systems like servers and network hardware. If your critical systems don't have reliable power, employees can't work, communications go down, automated systems malfunction and productivity grinds to a halt. It would be nice if utility power was always reliable, but it isn't. Between severe weather, the aging electrical grid and unavoidable hazards lurking inside your own walls, your servers and network hardware are under constant attack from power problems. Even a brief loss of power or a momentary surge can damage your equipment, corrupt your data, bring down your network and hurt your bottom line.
The potential costs of downtime are alarming. Surveyed averages range from $1,167 per minute for mid-size businesses (IDC) to $7,908 per minute for larger operations (Ponemon Institute). For a tiny fraction of these costs, you can prevent damage, downtime and data loss by installing this SmartPro® UPS system. It conditions incoming AC power to protect your equipment, provides enough battery backup to outlast most outages and allows critical systems to shut down gracefully to prevent data loss and corruption during extended blackouts.
This UPS system also has a high power factor (0.96), allowing you to connect more equipment to the UPS and circuit. A 1500 VA UPS with a typical 0.8 power factor can support a 1200W load, while a 1500 VA UPS with a high 0.96 power factor can support a 1440W load, an increase of 20 percent without a corresponding increase in circuit or space requirements.
Common ApplicationsProtect Servers and Network Hardware
Application Servers, Storage Servers, Database Servers, File Servers, Virtualization Servers, Proxy Servers, Web Servers, Media Servers, VoIP Servers, Network-Attached Storage, Network Switches, PoE Switches, Firewalls, Network Appliances, Bridges, Gateways, Routers
Protect Equipment with Active PFC Power Supplies
Active PFC power supplies found in many devices require pure sine wave power.
Pure Sine Wave OutputWhen operating from battery power, a UPS system generates the waveform of its AC output. Many UPS systems generate PWM sine wave power, an approximation of the pure sine wave power you receive from your electrical utility. Although PWM sine wave power is compatible with most equipment, pure sine wave power is required by some devices -- such as computers with active PFC power supplies -- and prevents others from overheating, malfunctioning or failing prematurely. This UPS system generates pure sine wave power for superior compatibility with active PFC power supplies and other sensitive equipment.
Expandable Battery Backup
- Half-Load Runtime: This UPS system will support a 50% load (720 W) for up to 14 minutes using the included batteries..
- Extended Runtime: This UPS system allows you to connect one or more optional external battery packs to provide additional backup runtime. Some external battery packs can also be daisy-chained, allowing you to scale runtime to match any application requirement.
- Hot-Swappable Batteries: You can add or replace batteries without turning off the UPS system and disrupting the operation of connected equipment.
Advanced AVR and Surge/Noise ProtectionIn locations with chronic voltage problems, frequent switching to battery drains reserve power and shortens battery life. This UPS system has a feature called automatic voltage regulation (AVR) that solves the problem. The UPS detects when input voltage is out of bounds and corrects it without using the battery.
All Tripp Lite UPS systems also include built-in surge protection and noise filtering to shield your equipment from destructive transient voltages and electromagnetic (EMI/RFI) line noise.
Flexible Management OptionsThere are several ways to manage this UPS system:
- Use the front-panel LEDs for convenient local management.
- Use the USB port with your computer's built-in power management features.
- Use the USB or serial port with your computer and Tripp Lite's PowerAlert® software. PowerAlert provides enhanced features like automatic file saves, event notification, logging, advanced device control and an SNMP agent that supports centralized management. Select UPS models include a convenient CD-ROM, or you can download the latest version of PowerAlert for free at Tripp Lite's website.
- Install an optional network card to enable standalone network management via SNMP, Web, SSH or telnet. The network card has an Ethernet port and embedded interface, allowing you to access advanced monitoring, control and notification features without directly connecting the UPS system to a computer. The network card also supports connecting one or more optional sensors for remote temperature, humidity and contact closure monitoring. (Available network cards and sensors include TLNETCARD with TLNETEM sensor; WEBCARDLX with E2MT, E2MTDO, E2MTDI and E2MTHDI sensors; and SNMPWEBCARD with ENVIROSENSE sensor. Refer to each model for specific features.)
LED Control PanelThe intuitive multicolor LEDs display a variety of helpful and important information, including power status, voltage regulation status, connected load level, battery charge level and battery condition.
If you decide to install the UPS system in a tower configuration, you can rotate the control panel to match.
- High Efficiency: This UPS system saves energy, produces less heat, shrinks your carbon footprint and reduces annual operating costs.
- User-Replaceable Battery: This UPS system has a user-replaceable, recyclable battery, allowing it to remain in service instead of going to a landfill.
- RoHS Compliance: This UPS system complies with the RoHS (Restriction of Hazardous Substances) Directive, limiting the use of hazardous substances in manufacturing.
Dependable Service from an Industry LeaderService and Support
- 3-Year Product Warranty: If this UPS system (including the internal battery) proves defective in material or workmanship within that period, Tripp Lite will repair or replace it at no charge.
- $250,000 Insurance: Tripp Lite will repair or replace connected equipment damaged by surges – even lightning strikes!
- Free Tech Support: Chicago-based, in-house tech specialists are available by phone, email and chat.
- Over 90 Years: Founded in 1922, Tripp Lite has a long-established and proven track record of providing reliable products and responsive customer service.
- Trusted Name: From the smallest office to the largest data center, customers worldwide trust Tripp Lite to power, protect, manage and connect valuable IT equipment.
- Third-Party Safety Testing and ISO 9001 Certification
Key SpecificationsModel: SMART1500CRMXL
Load Capacity: 1.5 kVA (1.44 kW)
Power Factor: 0.96
Nominal AC Input: 120V, 60 Hz
Nominal AC Output: 120V, 60 Hz
AC Outlets: 8 x 5-15R
Switched Outlet Banks: Three switchable single-outlet 5-15R load banks
Output Waveform (AC Mode): Pure Sine Wave
Output Waveform (Battery Mode): Pure Sine Wave
Input Cord: 10 ft. (3 m) Cord with 5-15P Plug
Half-Load Runtime: 14 min. (720 W Load)
Communications: USB Port (HID-Compliant); Serial Port (DB9); Network Card Slot; EPO
User-Replaceable Battery: Yes (RBC94-2U)
Expandable Battery Runtime: Yes (Requires optional external battery pack)
External Battery Pack Compatibility: BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
Primary Form Factor: 2U Rack (Supports 4-post rack installation with included kit. Add 2POSTRMKITWM for 2-post rack or wall-mount installation. Add 2-9USTAND for tower installation.)
Dimensions: 3.5 x 17.3 x 19.4 in. (8.9 x 44 x 49.3 cm)
Weight: 60 lb. (27.3 kg)
Standards: UL 1778 (USA); CSA (Canada); NOM (Mexico); FCC (EMI); RoHS
Product Warranty (Worldwide): 3-Year Limited Warranty (Registration required for third year.)
Connected Equipment Insurance (U.S., Canada and Puerto Rico): $250,000
What's Included: UPS, 4-Post Rack Installation Kit, USB/Serial/EPO Cabling, PowerAlert Software, Manual
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Actual products may differ slightly from photos. Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. Runtime varies with load, battery condition and other factors. Go to Tripp Lite's website for more information, including complete warranty terms and conditions.
