Tripp Lite PDUV20 PDU Basic 14 Outlet Item # 826485
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability

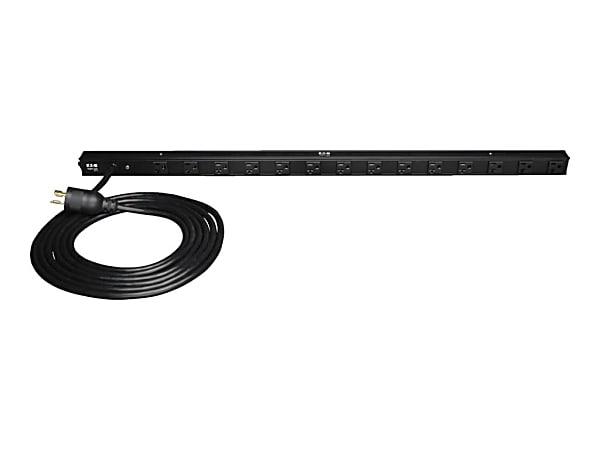

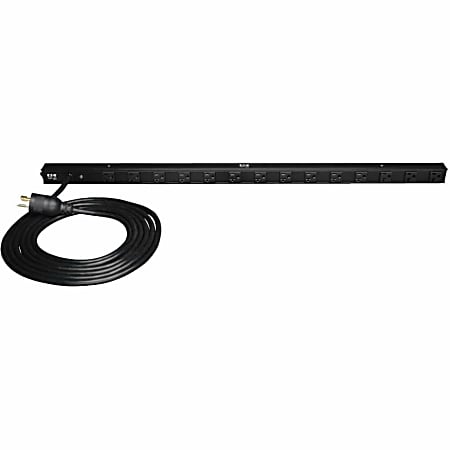

The PDUV20 1.9kW Single-Phase 120V Basic PDU is an excellent no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUV20 features 14 NEMA 5-15/20R outlets. The NEMA L5-20P input plug with long 15-foot (4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment. An included adapter converts the input plug to NEMA 5-20P.The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected equipment from dangerous overloads. The 36-inch all-metal housing supports 0U vertical mounting in EIA-standard 19-inch racks using the included hardware and mounting clips or toolless mounting using the included buttons. You can also mount the PDUV20 on a wall or workbench or under a counter with user-supplied hardware.
|brand name||Tripp Lite|
|Frequency Provided||50/60 Hz|
|Input Connectors||1 x power NEMA L5-20|
|Input Receptacles||NEMA 5-20P|
|Input Voltage||120 V AC|
|Output Receptacles||14 x NEMA 5-15/20R|
|Output Voltage||120 V AC|
|Power Rating (VA)||2400 VA|
|protection type||Overload Protection|
|warranty length||5-year limited|
|Weight (Approximate)||3.30 lb|
|What's Included||PDUV20 PDU Basic 120V 20A 14-Outlet; Mounting Hardware; Owner's Manual with Warranty Information|
|Show More ▾|
Reliable Power Distribution with 20 Amps
Optimized for Demanding ApplicationsThe PDUV20 is designed for reliable distribution of AC power to supported equipment in IT, industrial and similar applications. It features a rugged all-metal case, high-quality outlets and plug, 20A circuit breaker, and a switchless design to prevent accidental shutoff.
Reliable IT Power Distribution
Unfiltered electrical pass-through makes the PDUV20 ideal for distributing alternate waveform utility, UPS or generator power in rack enclosures, network closets, and more. With 14 5-15/20R outlets and a 15-ft. cord with an L5-20P plug (5-20P adapter included) in a space-saving all-metal housing, the PDUV20 is designed to be configured for multiple applications.
Versatile Installation OptionsThe PDUV20 is easy to integrate with a wide range of data center and network applications. Included mounting hardware enables the PDU to be installed in 0U vertical rackmount configurations, wall-mount, workbench, under-counter and similar applications. Included mounting buttons can be installed on the rear, right or left surface of the PDU for rear, center or forward-facing outlet orientation in the rack. The additional toolless button-mount 0U design feature makes vertical installations even easier with compatible rack enclosures.
Five-Year Product Warranty and Environmentally Responsible Design
The PDUV20 is backed by a five-year warranty. As part of Tripp Lite's commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications.
- Reliable power distribution in high-density IT environments
- All-metal housing with 14 outlets and 15-ft. cord
- Switchless design prevents accidental shut-off
- Toolless 0U (vertical) rack installation
- 5-Year Warranty
