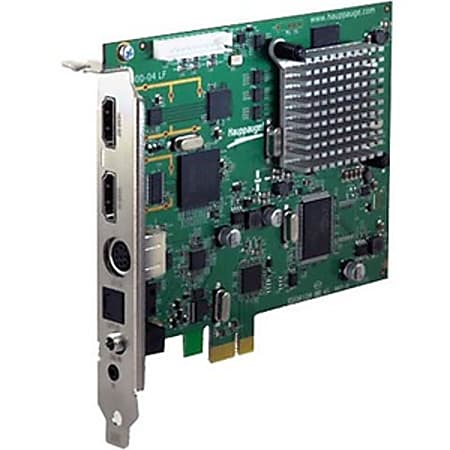

Hauppauge Colossus 2 PCI Express Full Height Board Item # 880640
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Colossus 2 is an internal video recorder which plugs into PCI Express x1 or x16 slots. It contains the same studio quality video encoder which is used in the HD PVR 2, and can record both HDMI and Component video at up to 1080p30, with support for 1080p60 passthrough.
Like the HD PVR 2, Colossus 2 also has built-in hardware support for H.264 Variable (VBR) and Constant bit rate (CBR) encoding, video downscaling, and a logo inserter for putting 'bugs' or logos on your recordings or video streams.
Colossus 2 uses a high quality Analog Devices video front end, and a Magnum studio quality video encoder. The Magnum encoder supports data rates are from .2Mbits/second to 13.5 Mbits/sec CBR, with VBR datarates running to about 21 Mbits/sec.
Colossus 2 runs under Windows 10, 8, 7, Vista and Windows XP.
Record your favorite TV programs from HD cable TV and satellite set top boxes. Colossus 2 connects to most HD cable TV and satellite TV receivers with component video and optical digital audio. Stereo audio inputs are supported, too. Some cable TV and satellite boxes allow recording from HDMI (non HDCP encrypted HDMI).
Includes Hauppauge's WinTV v7 TV application for automatic recording of TV programs from cable or satellite set top boxes
If you have an un-encrypted HDMI video source, such as a digital SLR, you can record directly from this source.
Includes Ir Blaster Cable. Colossus 2 Can Automatically Change The Channel On Your Set Top Box.
|functions||Video Recording; Video Streaming|
|Host Interface||PCI Express x1|
|manufacturer||Hauppauge Computer Works|
|maximum resolution||1920 x 1080|
|ports||1 component video; 1 HDMI|
|Product Line||Colossus 2|
|Video System||NTSC; PAL|
|What's Included||Colossus 2 PCI Express Full Height Board; Component Video A/V Cable Adapter (Part Number 6021258A ); HDMI Cable - 1 Meter; Hauppauge IR Receive/Learn/Blast Cable (Part Number 6021298); Application: Wintv V8 And Hauppauge Capture Applications; Quick Installation Guide|
