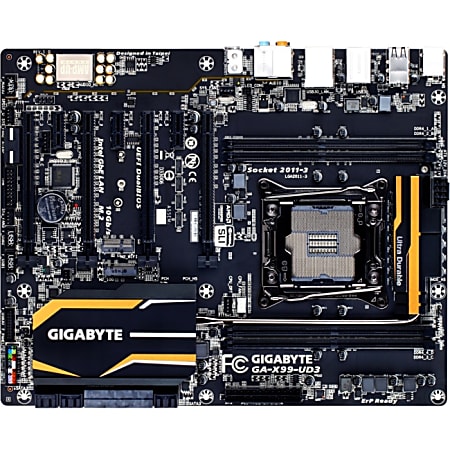

Sign up for Gigabyte Ultra Durable GA-X99-UD3 Desktop Motherboard - Intel X99 Chipset - Socket LGA 2011-v3
1 / 1
$249.99/each
Description
GIGABYTE X99 series motherboards use an all-digital CPU power design from International Rectifier which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel Core i7 Extreme Edition CPUs. This generation of IR digital power controllers and PowIRstage ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage ICs, preventing the overheating of each individual PowerIRstage, resulting in longer lifespan and better reliability.
Specifications
Product Specifications
| Item # | 884577 |
| Manufacturer # | GA-X99-UD3 |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC1150 |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS |
| BIOS Type | AMI |
| brand name | Gigabyte |
| Bus Clock | 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.) |
| Chipset Manufacturer | Intel |
| Chipset Model | X99 |
| Compatible Processors | Core i7 Extreme Edition, Core i7, Xeon E5-2600 v3 series, Xeon E5-1600 v3 series |
| controller type | Serial ATA/600 |
| depth | 9.6 in. |
| Environmental Certification | WEEE; China RoHS; ErP Ready |
| form factor | Atx |
| Gigabit Ethernet | Yes |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| Internal Interfaces | 4 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x Thunderbolt - header |
| manufacturer | GIGABYTE Technology, Inc |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM; RDIMM |
| Memory Speed Supported | 3 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.40 GHz (O.C.); 2.13 GHz |
| Memory Standard | DDR4-3000/PC4-24000 (O.C.); DDR4-2800/PC4-22400 (O.C.); DDR4-2666/PC4-21300 (O.C.); DDR4-2400/PC4-19200 (O.C.); DDR4-2133/PC4-17000 |
| Memory Technology | DDR4 SDRAM |
| model | GA-X99-UD3 |
| Multi GPU Supported | CrossFireX; SLI |
| Number of M.2 Interfaces | 1 |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 3 |
| Number of PCI Express x16 Slots | 4 |
| Number of SATA Express Interfaces | 1 |
| Number of SATA Interfaces | 10 |
| Number of Total Expansion Slots | 7 |
| Onboard Audio Header | Yes |
| Onboard Thunderbolt Header | Yes |
| Onboard Video | No |
| package contents | Ultra Durable GA-X99-UD3 (rev. 1.0) Desktop Motherboard; Bundle Software |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 Ethernet (RJ-45); 1 microphone; 4 onboard USB 2.0; 2 onboard USB 3.0; 2 PS/2; 1 S/PDIF; 1 S/PDIF out; 4 USB 2.0; 6 USB 3.0 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA2011-v3 Socket |
| Processor Supported | Core i7; Xeon |
| Product Line | Ultra Durable |
| PS/2 Port | Yes |
| RAID Features | Intel Smart Response Technology |
| RAID Levels | 0; 1; 5; 10 |
| RAID Supported | Yes |
| Registered or Buffered | Registered, unbuffered |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC1150 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 6 |
| Total Number of PCI Express Slots | 7 |
| Total Number of USB Ports | 10 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
